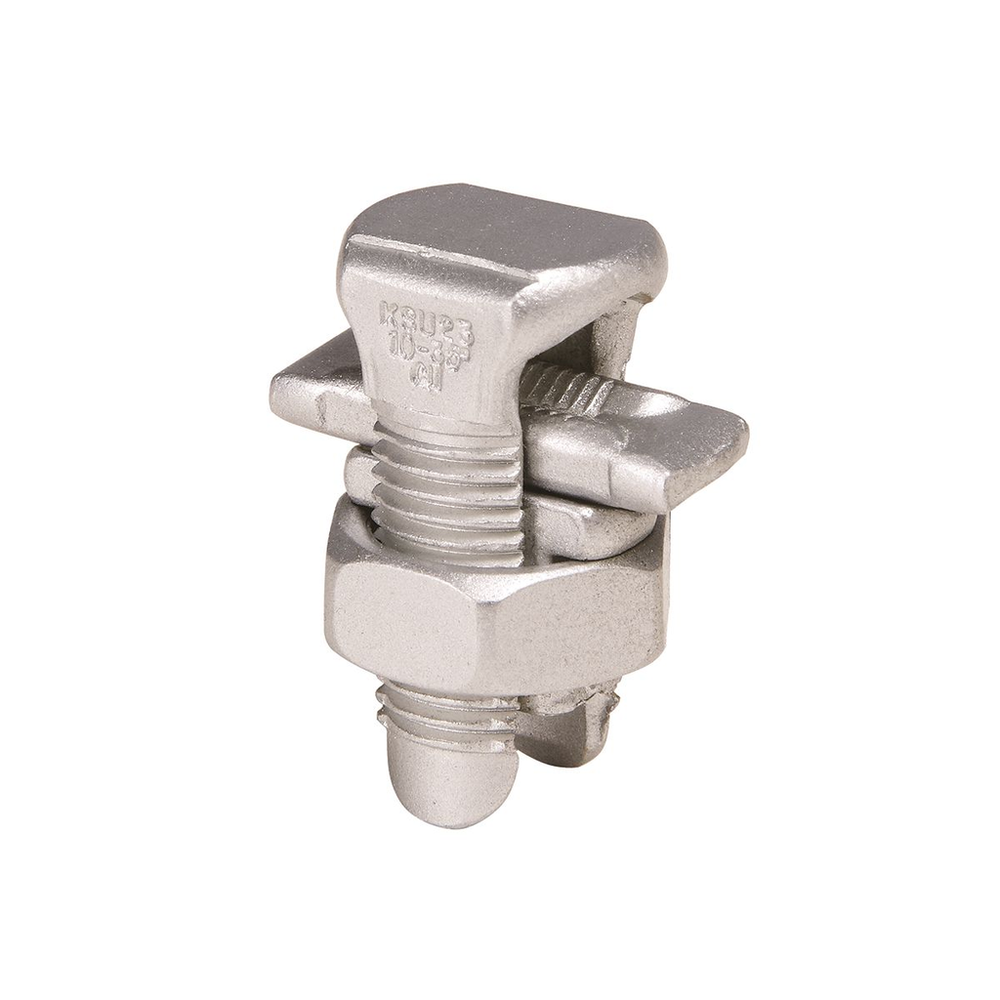

Burndy KSU22
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Tin-plated, high strength copper alloy SERVIT with spacer. Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors, 1.25 IN L.Tin plated copper alloy SERVIT with spacer to separate dissimilar conductors
Burndy KSU22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
Specifications
- Application
- For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 10.900 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810035757
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810035758
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AAAC 5005 Run
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - AAAC 5005 Run Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - AAAC 5005 Tap
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - AAAC 5005 Tap Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - AAAC 6201 Run
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - AAAC 6201 Run Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - AAAC 6201 Tap
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - AAAC 6201 Tap Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - ACSR Str Run
- 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
- Conductor - ACSR Str Run Range
- 6 AWG - 4 AWG
- Conductor - ACSR Str Tap
- 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
- Conductor - ACSR Str Tap Range
- 6 AWG - 4 AWG
- Conductor - AL Str Run
- 10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Run Range
- 10 STR. - 2 SOL.
- Conductor - AL Str Tap
- 10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Tap Range
- 10 STR. - 2 SOL.
- Conductor - Copper Solid Run
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Run Range
- 10 AWG-2 AWG
- Conductor - Copper Solid Tap
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Tap Range
- 10 AWG-2 AWG
- Conductor - Copper Str Run
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Run Range
- 10 STR. - 2 SOL.
- Conductor - Copper Str Tap
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Tap Range
- 10 STR. - 2 SOL.
- Conductor - Galvanized Steel Str Size
- 1/4 (7) in
- Conductor - Galvanized Steel Str Size Range
- 1/4 (7) in
- Conductor Type
- CU C Solid-Run;CU C Str-Run;AL C Str-Run;AAAC C 5005-Run;AAAC C 6201-Run;ACSR C Str-Run;CU C Solid-Tap;CU C Str-Tap;AL C Str-Tap;AAAC C 5005-Tap;AAAC C 6201-Tap;ACSR C Str-Tap;GAL Steel C Str-Size
- Connector Type
- Split Bolt
- Country of Origin
- US
- Description - Invoice
- SERVIT UNIV 12-6
- Dimension - Cross Flats inch
- .74 in
- Dimension - Length Overall inch
- 1.46
- Dimension - L Length Overall mm
- 32 mm
- Dimension - Width inch
- 0.57 in
- Dimension - Width mm
- 14 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.84 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 275
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10.9 lb.
- Package - GTIN - Package
- 30781810035758
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810035757
- Package - Total Units
- 100 EA
- Package Weight
- 10.9 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810035756
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1941.600 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- TinPlated
- Product Type
- Mechanical
- Special Features
- Features: Tin-Plated, High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors, Use Of PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Steel (Nominal Diameter), Installation Torque: 275 IN-LB, Width: 0.57 IN, Length: 1.25 IN, Cross Flats: 0.74 IN
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNIVERSAL SERVIT
- Sub Class Code
- B30B3EF
- Trade Name
- SERVIT®
- Type
- KSU, Universal
- UL Listed
- Yes
- Width
- 0.84 in
