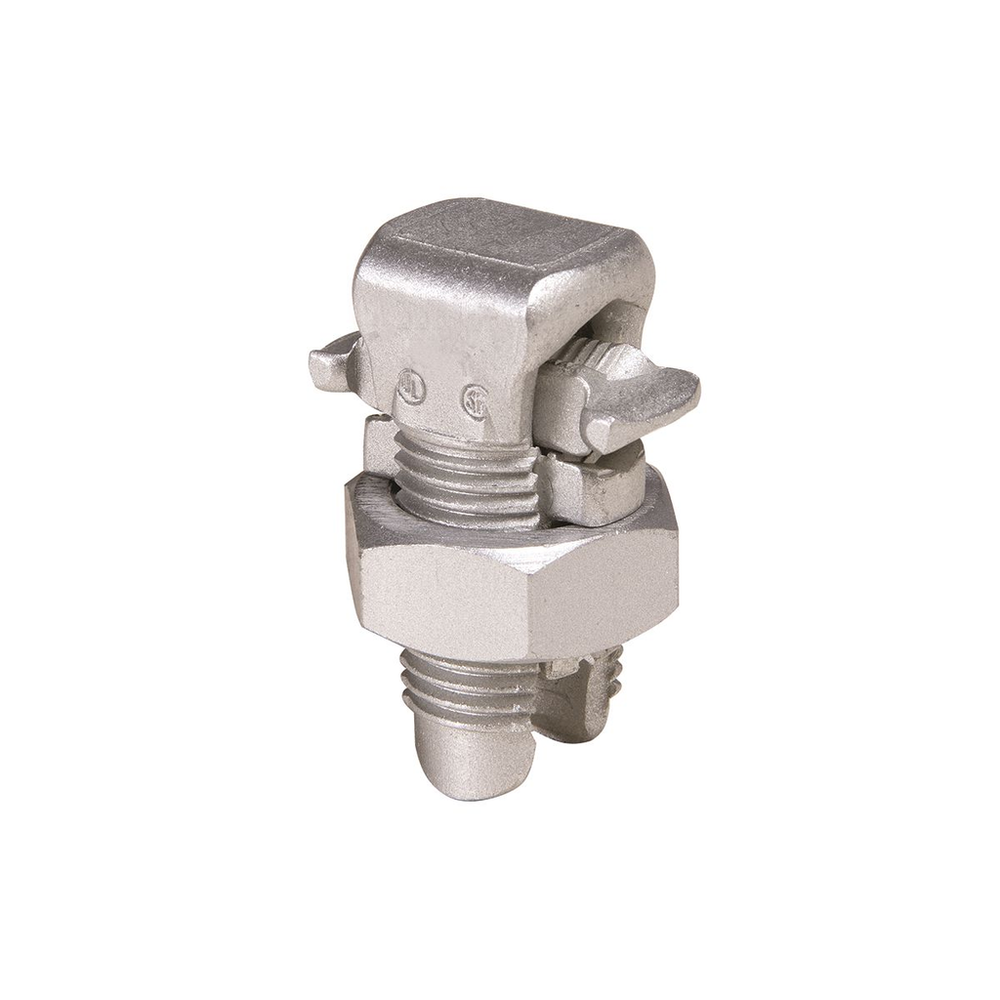

Burndy KSA350

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Listed Direct Burial
  • No
• UL Recognized
  • No

Specifications

• Application
  • For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 6.750x9.688x7.753 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 8.600 lb.
• Carton - Number of Sub Packs
  • 20
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810183526
• Carton - Total Units
  • 20
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810183527
• Certification Agency
  • Proposition 65
• Class Code
  • B51
• Conductor - AL Str Run
  • 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
• Conductor - AL Str Run Range
  • 1/0 AWG-350 kcmil
• Conductor - AL Str Tap
  • 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
• Conductor - AL Str Tap Range
  • 4 AWG-350 kcmil
• Conductor - Copper Solid Tap
  • 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Solid Tap Range
  • 8 AWG-2 AWG
• Conductor - Copper Str Run
  • 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
• Conductor - Copper Str Run Range
  • 1/0 -350 kcmil
• Conductor - Copper Str Tap
  • 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
• Conductor - Copper Str Tap Range
  • 4 AWG-350 kcmil
• Conductor Size
  • 4 AWG-350 KCMIL
• Conductor Type
  • AL C Str-Run;CU C Str-Run;CU C Solid-Run;AL C Str-Tap;CU C Str-Tap;CU C Solid-Tap
• Connector Type
  • Split Bolt
• Country of Origin
  • US
• Description - Invoice
  • TRITAP SERVIT 350-4STR
• Description - Slang
  • AL SERVIT KSA
• Dimension - B Length fraction
  • 2-1/6 in
• Dimension - B Length inch
  • 2.18 in
• Dimension - Bolt Size inch
  • 1.38 in
• Dimension - Cross Flats inch
  • 1.69 in
• Dimension - Height fraction
  • 1-1/2 in
• Dimension - Height inch
  • 1.50 in
• Dimension - Length Overall inch
  • 3.24 in
• Dimension - L Length Overall mm
  • 82 mm
• Dimension - Width inch
  • 1.50 in
• Dimension - Width mm
  • 38 mm
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 2.18 in
• Freight Class Code
  • 16027000
• Hardware Type
  • 1 3/8-12 UNF
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL 486A-486B
• Installation Torque Recommended in-lb
  • 650 LBS/in
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Aluminum
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 8.6 lb.
• Package - GTIN - Package
  • 30781810183527
• Package Height
  • 6.13 in
• Package Length
  • 9.38 in
• Package - Number of Sub Packs
  • 20
• Package - Pack Description
  • Package
• Package Quantity
  • 20 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810183526
• Package - Total Units
  • 20 EA
• Package Weight
  • 8.6 lb.
• Package Width
  • 7.44 in
• Pallet - GTIN - Package
  • 70781810183525
• Pallet Height
  • 46.250 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1283.400 lb.
• Pallet Width
  • 40.000 in
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • RUN/TAP
• Rating - Minimum Voltage
  • 600
• Special Features
  • Features: No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors, Facilitates Piercing The Aluminum Conductor Surface Oxides, UL 486B Listed, 90 DEG C Rated, Provides A Low Contact Resistance, Provides Equal Coefficient Of Expansion Inhibits The Reformation Of Oxides By Producing A Gas-Tight Seal, Provides Improved Retention Of Minimum To Maximum Conductor Combinations, Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Installation Torque: 650 IN-LB, Cross Flats: 1.69 IN, Width: 1.73 IN, Length: 3.62 IN
• Standard
  • UL 486A-486B
• Standard Package Quantity
  • 20
• Standards - Industry Standards Met
  • UL 486A-486B
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • TRITAP, SERVIT
• Sub Class Code
  • B51BGBF
• Temperature Rating
  • 194
• Trade Name
  • TRITAP™ SERVIT®
• Type
  • KSA
• UL Listed
  • Yes
• Width
  • 2.18 in
