Description

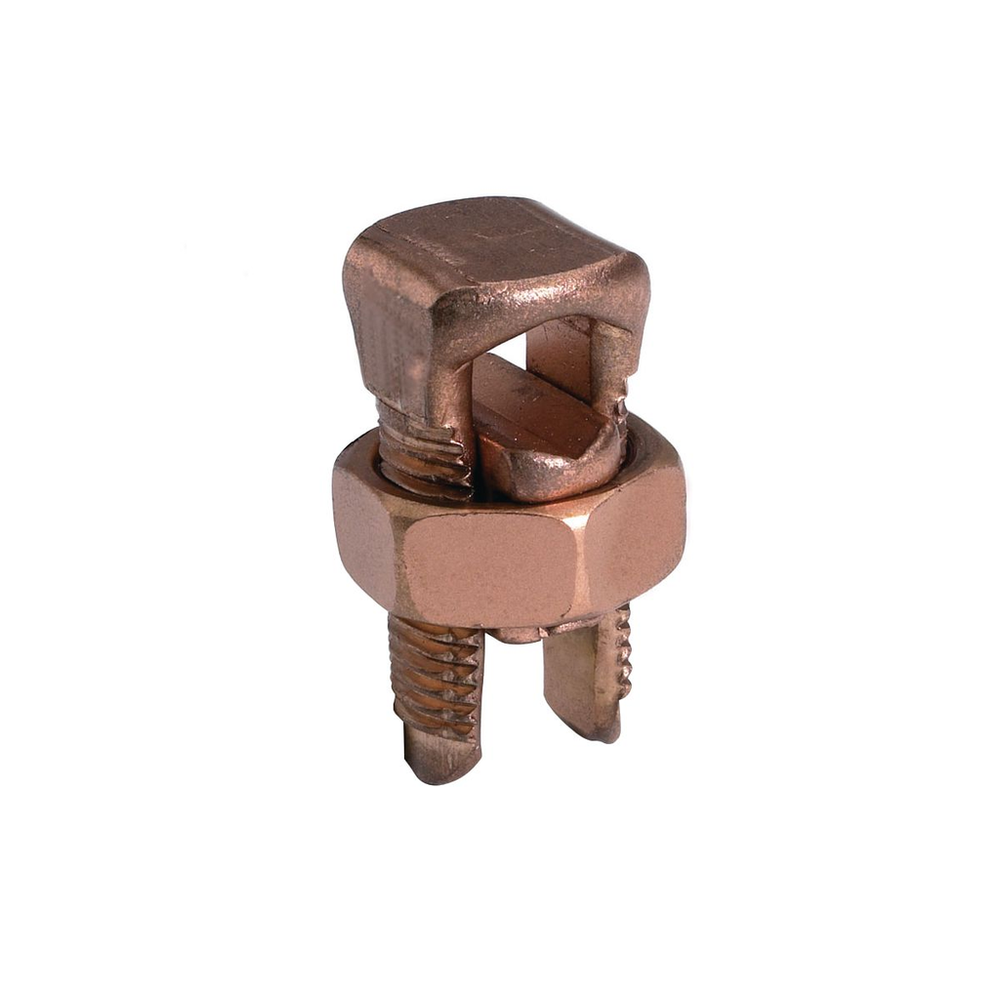

Copper Split Bolt, Cu: 1 AWG (Str)-250 kcmil (Run & Tap).Copper Split Bolt, Cu: 1 AWG (Str)-250 kcmil (Run & Tap)
Burndy KS29 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial Cables
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 10.250 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013809
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013800
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - Copper Solid Run
- 4/0 AWG
- Conductor - Copper Solid Run Range
- 1 AWG-250 kcmil
- Conductor - Copper Solid Tap
- 4/0 AWG
- Conductor - Copper Solid Tap Range
- 8 AWG-250 kcmil
- Conductor - Copper Str Run
- 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Run Range
- 1 STR - 250 KCMIL
- Conductor - Copper Str Tap
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Tap Range
- 1 STR - 250 KCMIL
- Conductor - CopperWeld Solid Run
- 4/0
- Conductor - CopperWeld Solid Run Range
- 4/0
- Conductor - CopperWeld Solid Tap
- 4/0
- Conductor - CopperWeld Solid Tap Range
- 4/0
- Conductor - CopperWeld Str Run
- 7 #5
- Conductor - CopperWeld Str Run Range
- 7 #5
- Conductor - CopperWeld Str Tap
- 7 #5
- Conductor - CopperWeld Str Tap Range
- 7 #5
- Conductor - Rebar Size
- 4
- Conductor - Rebar Size Range
- 4
- Conductor Type
- CU C Solid-Run;CU C Str-Run;CU Weld C Solid-Run;CU Weld C Str-Run;CU C Str-Tap;CU Weld C Solid-Tap;CU Weld C Str-Tap;CU C Solid-Tap
- Connector Type
- Split Bolt
- Country of Origin
- US
- Description - Invoice
- SERVIT 1 STR - 250
- Dimension - B Length inch
- 1.00 in
- Dimension - Cross Flats inch
- 1.36 in
- Dimension - Length Overall inch
- 2.25
- Dimension - L Length Overall mm
- 53 mm
- Dimension - Width fraction
- 1-17/100 in
- Dimension - Width inch
- 1.17 in
- Dimension - Width mm
- 30 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.56 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A;UL486B
- Installation Torque Recommended in-lb
- 650 in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 10.25 lb.
- Package - GTIN - Package
- 30781810013800
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810013809
- Package - Total Units
- 25 EA
- Package Weight
- 10.25 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810013808
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1941.250 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- KS29
- Special Features
- Features: Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors, Conductor Type: Run: Solid Copperweld, Commercial Stranded And Solid Copper, Stranded Copperweld, Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Stranded Copperweld, Installation Torque: 650 IN-LB, Cross Flats: 1.36 IN, Width: 1.17 IN, Length: 27 IN
- Standard
- UL 486A;UL486B
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A;UL486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- SERVIT
- Sub Class Code
- B30B30F
- Trade Name
- SERVIT®
- Type
- KS
- UL Listed
- Yes
- Width
- 1.56 in
