Burndy KPU34A34AC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

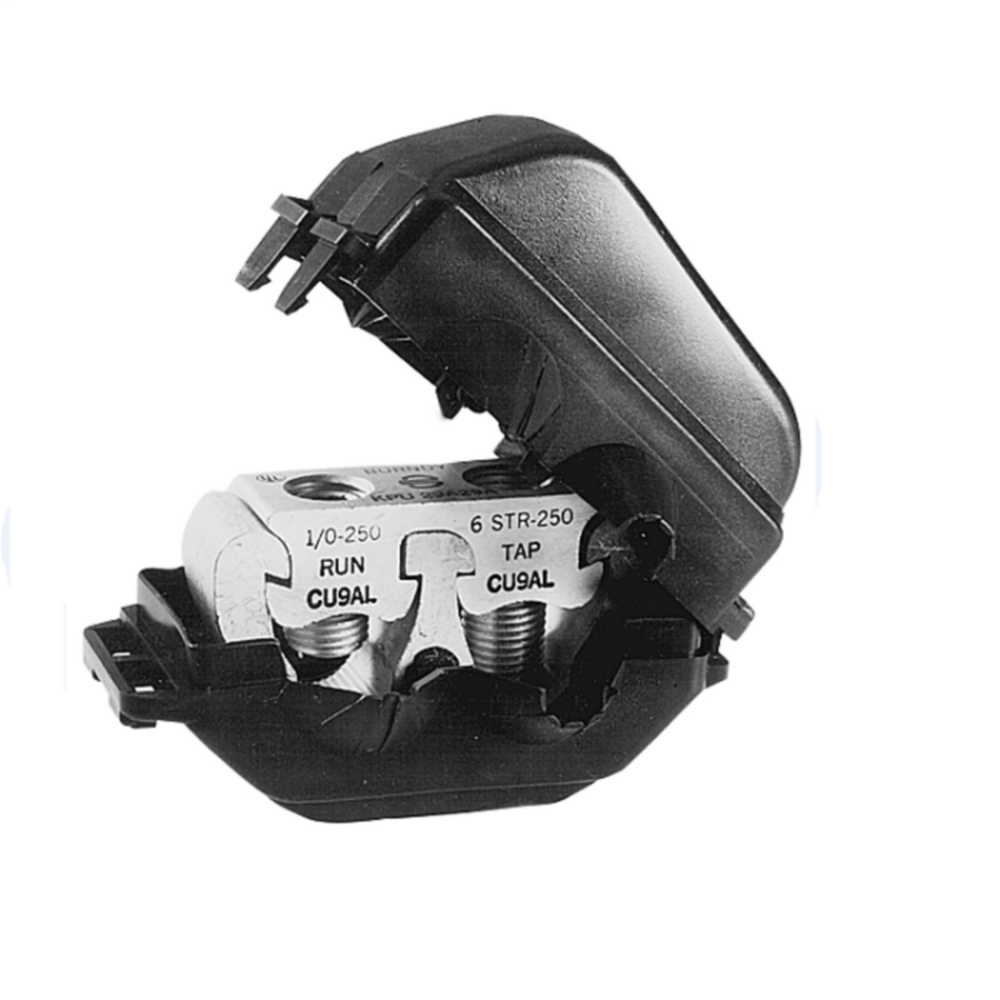

Gutter Tap, 4/0 AWG (Str)-500 kcmil (Run), 6 AWG (Str)-500 kcmil (Tap), Al/Cu Rated.Mechanical KPU34A34AC
Burndy KPU34A34AC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- EX
- UL Listed
- Yes
Conductor Related
- Conductor - AL Str Run
- 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Run Range
- 4/0 AWG-500 kcmil
- Conductor - AL Str Tap
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Tap Range
- 6 AWG-500 kcmil
- Conductor - Copper Str Run
- 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Run Range
- 4/0 AWG-500 kcmil
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Tap Range
- 6 AWG-500 kcmil
Dimensions
- Dimension - Height fraction
- 3-1/2 in
- Dimension - Height inch
- 3.48 in
- Dimension - Length Overall inch
- 4.48 in
- Dimension - L Length Overall mm
- 116 mm
- Dimension - Width fraction
- 3-1/2 in
- Dimension - Width inch
- 3.50 in
- Dimension - Width mm
- 89 mm
Electrical Ratings
- Rating - Minimum Voltage
- 110
- Voltage - Maximum
- 600 V
General
- Application
- For All Copper And Aluminum Combinations
- Connector Type
- Tap
- Installation Torque Recommended in-lb
- 450 LBS/in
- Material
- Aluminum
- Plated
- N
- Plating Type
- Tin
- Sub Brand
- POLYTAP
- Temperature Rating
- 194
- Trade Name
- POLYTAP™
- Type
- KPU-AC
- UPC
- 781810623633
- UPC 12 Digit
- 7818106236333
Logistics
- Minimum Pack Quantity
- 1
