Burndy KPB4CG1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

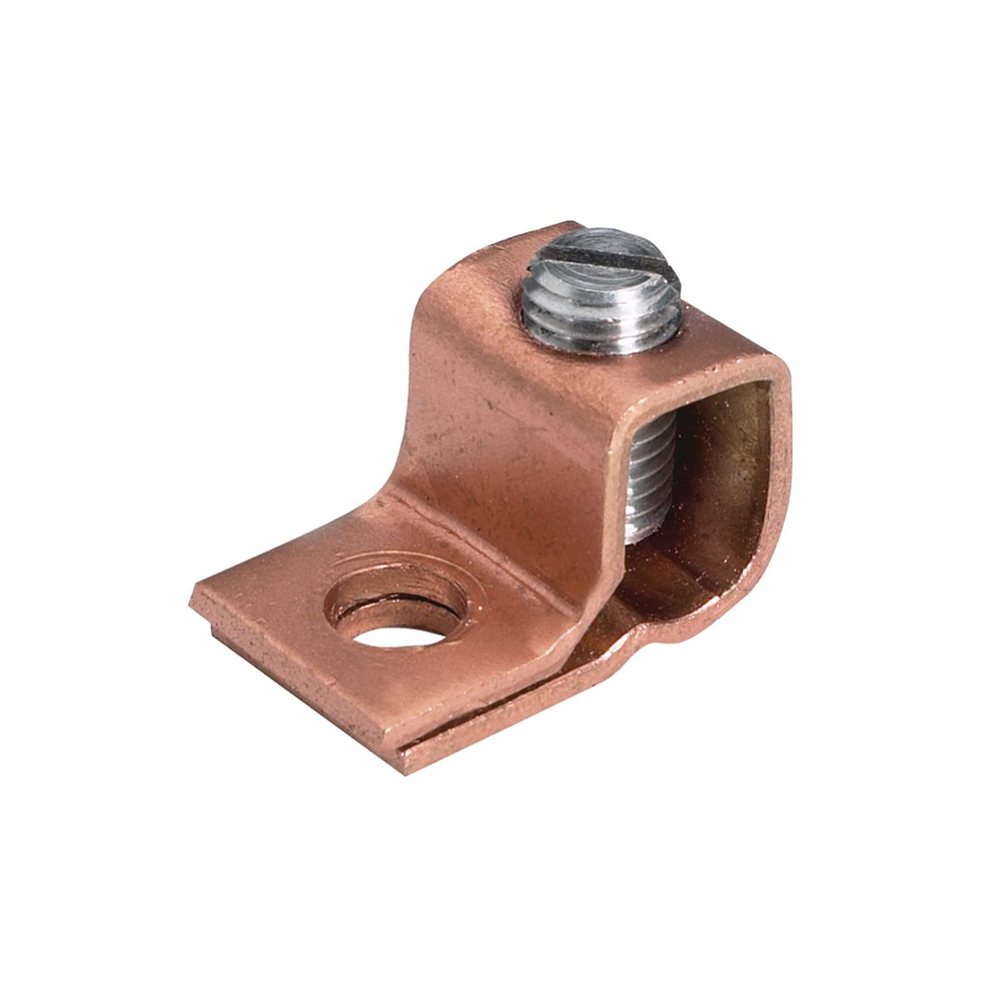

Copper Alloy Clip-on/Lay-in Ground Connector, #10 - #4 CU.Copper Alloy Clip-on/Lay-in Ground Connector, #10 - #4 CU
Burndy KPB4CG1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
Specifications
- Application
- For Direct Burial In Earth Or Concrete
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810100233
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810100234
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Str Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor Type
- CU C Str-Size
- Country of Origin
- US
- Description - Invoice
- CU LAY-IN MECH 10-4 DB
- Dimension - B Length inch
- 0.61 in
- Dimension - Height inch
- 0.95 in
- Dimension - Width fraction
- 1 in
- Dimension - Width inch
- 0.99 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.612 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467;UL 486A-B
- Installation Torque Recommended in-lb
- 45 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material Type - Screw
- Steel - Stainless
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 4 lb.
- Package - GTIN - Package
- 30781810100234
- Package Height
- 4 in
- Package Length
- 4 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810100233
- Package - Total Units
- 100 EA
- Package Weight
- 4 lb.
- Package Width
- 4 in
- Pallet - GTIN - Package
- 70781810100232
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1629.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Tin
- Product Type
- Mechanical
- Special Features
- Features: UL467 Listed For Direct Burial In Earth Or Concrete, UL486 Listed, This Exclusive BURNDY Design Accommodates #10 - #4 Copper Where Continuous Conductor Runs Are Preferable, To Be Assembled With TMH322SS Stainless Steel Hardware Kit, Width: 0.61 IN, Length: 0.95 IN, Height: 0.95 IN, Stud/bolt Hole Size: #10
- Standard
- UL467;UL 486A-B
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL467;UL 486A-B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- SCRULUG
- Sub Class Code
- B41BD2F
- Type
- KPB
- UL Listed
- Yes
- Width
- 0.612 in
