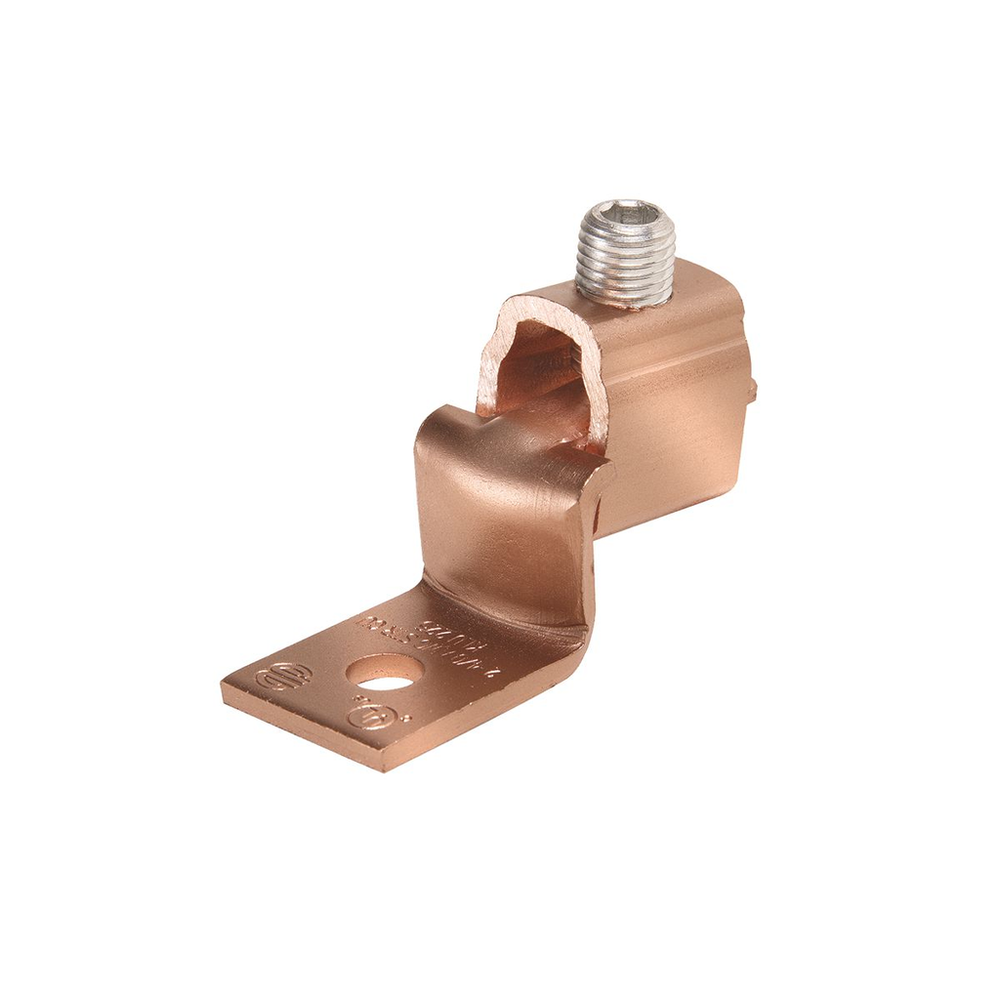

Burndy KLU70

Certifications

• CSA Approved
  • No
• cULus
  • Yes
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Listed Direct Burial
  • No
• UL Recognized
  • No

Specifications

• Application
  • For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar
• ARRA Compliant
  • No
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • No
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 600
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810351383
• Carton - Total Units
  • 600 EA
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810351384
• Certification Agency
  • Proposition 65
• ChannelSightWidgetId
  • 705
• Class Code
  • B51
• Conductor - Copper Solid Size
  • 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Solid Size Range
  • 8 AWG-2 AWG
• Conductor - Copper Str Size
  • 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Str Size Range
  • 8 AWG-2 AWG
• Conductor Size
  • 8-2 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Pressure Bar
• Country of Origin
  • IN
• Description - Invoice
  • 8-2 CU LUG BLT
• Description - Slang
  • Offset tongue mechanical lug
• Dimension - B Length fraction
  • 1/2 in
• Dimension - B Length inch
  • 0.50 in
• Dimension - Bolt Size fraction
  • 1/4
• Dimension - Hole Size inch
  • 0.26 in
• Dimension - Hole Size mm
  • 7 mm
• Dimension - Length Overall inch
  • 1.55 in
• Dimension - L Length Overall mm
  • 39 mm
• Dimension - N inch
  • 0.25 in
• Dimension - Pad Width inch
  • 0.47 in
• Dimension - Screw Size inch
  • 5/16
• Dimension - Strip Length inch
  • 3/4
• Dimension - Stud Size inch
  • 1/4
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.47 in
• Freight Class Code
  • 16027000
• Hardware Type
  • 5/16 UNF Slotted SetScrew
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Installation Torque Recommended in-lb
  • 40
• Lead Time
  • 10 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 4 lb.
• Package - GTIN - Package
  • 30781810351384
• Package Height
  • 4.00 in
• Package Length
  • 4.00 in
• Package - Number of Sub Packs
  • 100
• Package - Pack Description
  • Package
• Package Quantity
  • 100 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810351383
• Package - Total Units
  • 100 EA
• Package Weight
  • 4 lb.
• Package Width
  • 4.00 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Number of Screws
  • 1
• Physical Attribute - Screw Type
  • Slot
• Plated
  • N
• Plating Type
  • Unplated
• Product Type
  • TERMINAL
• Special Features
  • Features: Convenient Range-Taking Design: One Conductor Accommodates Several Conductor Sizes, High Conductivity Copper Alloy: Long Lasting Reliable Contact, Compact Design: Easy To Use, Reduces Labor Time, Slot Robertson Screw, Hex Head/Hex Socket Bolt: No Special Installation Tools Required, Eliminates Over-Torquing/Potential Conductor Damage, High Copper Alloy Terminal With Offset Tongue For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Easy To Install With Screwdriver Or Wrench, Connector Is Reusable, Plain Copper Finish, For Copper Cable, Wire Strip Length: 3/4 IN, Stud/bolt Size: 5/16 IN, Stud/bolt Hole Size: 1/4 IN, Dimension N: 0.25 IN, Set Screw Type: Slot Robertson, Installation Torque: 50 IN-LB, Length: 1.56 IN, Width: 0.47 IN, Tongue Width : 0.5 IN, Dimension B: 0.46 IN, Dimension K: 0.26 IN, Dimension T: 08 IN
• Standard
  • UL467
• Standard Package Quantity
  • 100
• Standards - Industry Standards Met
  • UL467
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • SCRULUG
• Sub Class Code
  • B51BG7F
• Trade Name
  • SCRULUG™
• Type
  • Bolted Lugs & Terminals
• UL Listed
  • No
• Width
  • 0.47 in
