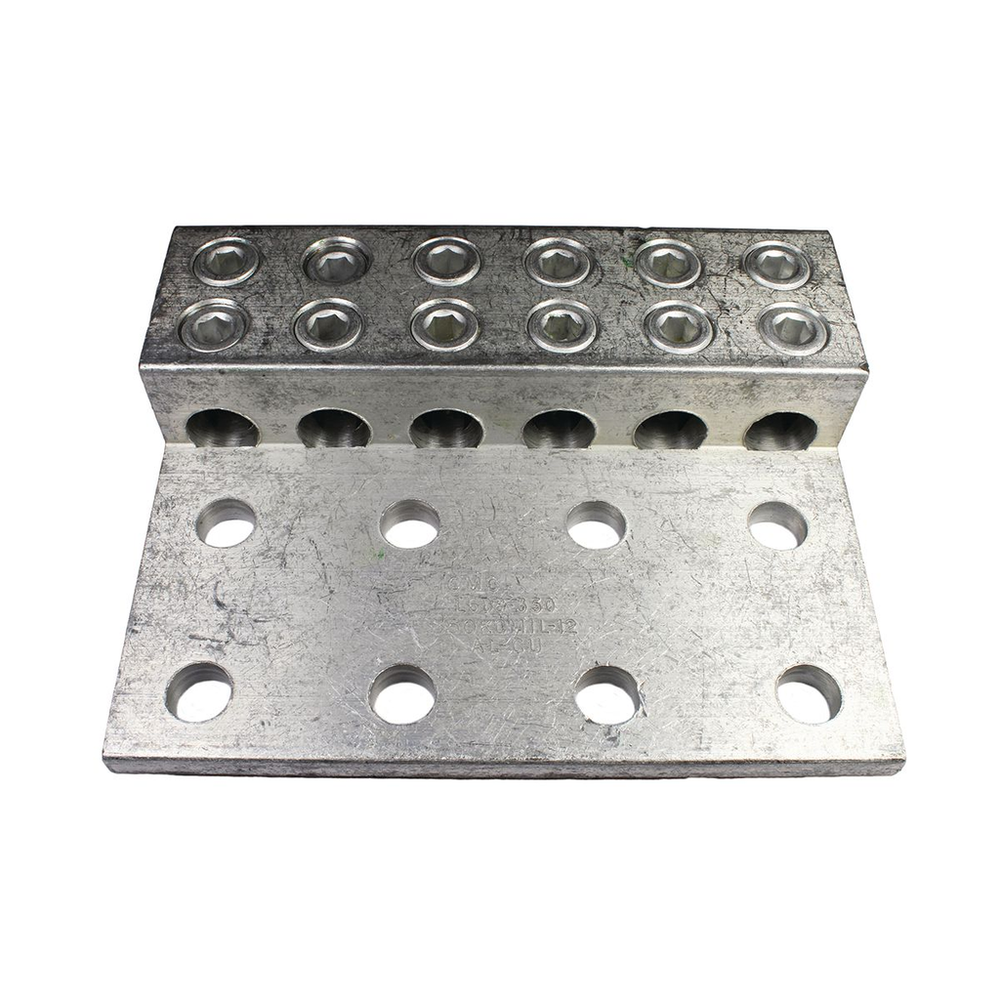

Burndy KK6A34U8
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
6 Conductors #2 AWG - 500 kcmil; Dual Rated.Universal Terminal for 6 conductors
Burndy KK6A34U8 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 12
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810666654
- Carton - Total Units
- 12 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810666655
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size Range
- 10 Str. - 500 Kcmil
- Conductor - Copper Str Size Range
- 10 Str. - 500 Kcmil
- Conductor Size
- 2 AWG-500 KCMIL
- Conductor Type
- CU C Str-Size;AL C Str-Size
- Connector Type
- Parallel Set-Screw
- Construction Material - Main
- Aluminum
- Country of Origin
- US
- Description - Invoice
- UNIV TERM 6COND 10-500
- Description - Slang
- 6+ Cables to Flat
- Dimension - Bolt Size fraction
- 9/16
- Dimension - Height inch
- 1.5 in
- Dimension - Length Overall inch
- 6.75 in
- Dimension - L Length Overall mm
- 171 mm
- Dimension - Stud Size fraction
- 9/16
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.5 in
- Finish Type
- Clear Plate Cms-14
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Number Of Conductors
- 6
- Number of Holes
- 8
- Number Of Wires
- 6
- Order Multiple
- 1 EA
- Package - GTIN - Package
- 30781810666655
- Package Quantity
- 2 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 8
- Plated
- Y
- Plating Type
- Clear plated
- Product Type
- TERMINAL
- Special Features
- These dual rated six and eight conductor lugs are constructed from high strength aluminum alloy and electro tin plated to provide low contact resistance
- Standard Package Quantity
- 2
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- Universal Terminals
- Sub Class Code
- B51BGFF
- Type
- KK6A-U
- UL Listed
- No
- Width
- 1.5 in
