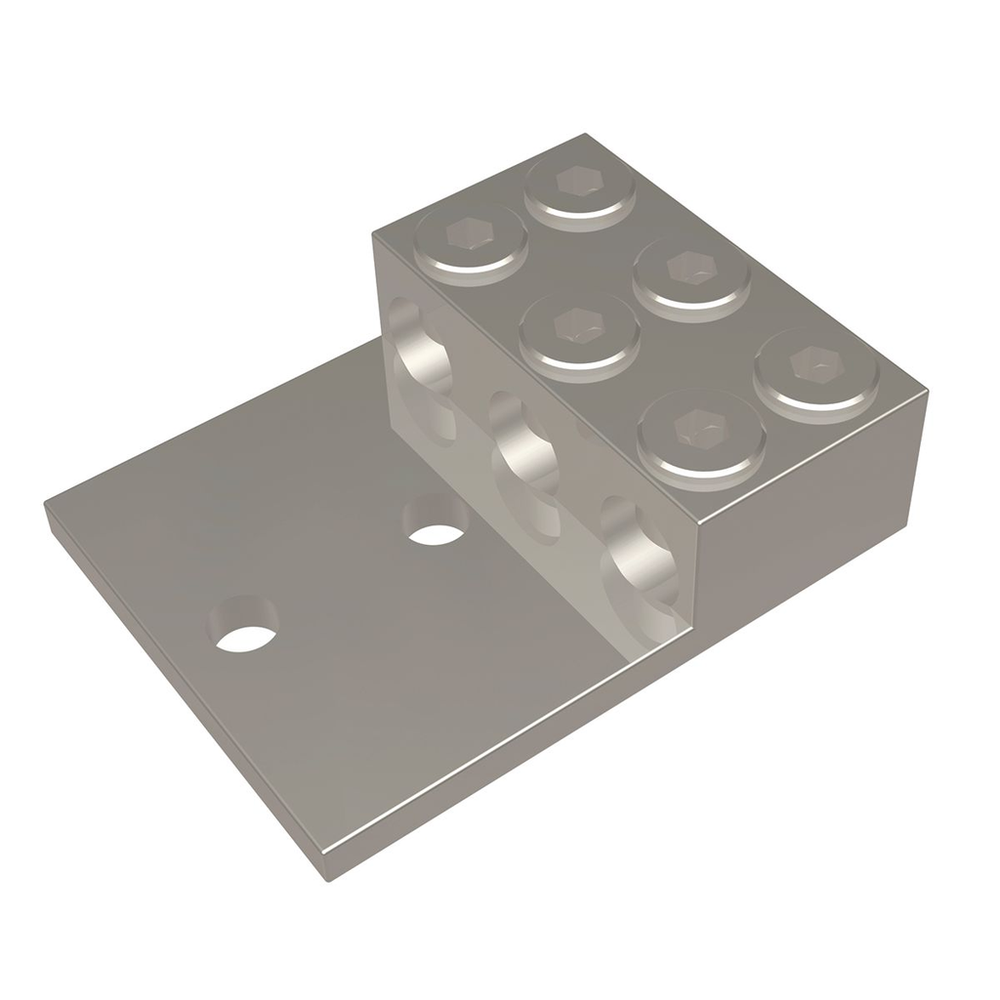

Burndy KK3A44U2N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Universal Terminal, 3 Conductor, 2 Hole, 500-1000 kcmil, 1/2" Stud, 1.75" Stud Hole Spacing, 6 Screws, Al/Cu Rated, Tin Plated.Aluminum Universal Terminal, 3 Conductor, 2 Hole, 500-1000 kcmil, 1/2" Stud, 1.75" Stud Hole Spacing, 6 Screws, Al/Cu Rated, Tin Plated
Burndy KK3A44U2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810601488
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
- Conductor - AL Str Size Range
- 500 - 1000 Kcmil
- Conductor - Copper Str Size Range
- 500 - 1000 Kcmil
- Conductor Size
- 500-1000 KCMIL
- Conductor Type
- CU C Str-Size;AL C Str-Size
- Connector Type
- Parallel Set-Screw
- Country of Origin
- US
- Description - Slang
- Universal Terminals
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Height inch
- 1.90 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 6.19 in
- Dimension - L Length Overall mm
- 157 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 4.79 in
- Dimension - Stud Size inch
- 0.56 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- Aluminum
- Material - Hardware
- Aluminum
- Number Of Wires
- 3
- Pallet - GTIN - Package
- 70781810601487
- Pallet - Total Units
- 12 EA
- Pallet Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Plating Type
- Tin Plated
- Product Type
- TERMINAL
- Standard Package Quantity
- 12
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- NC
- Sub Class Code
- B51BGGF
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
