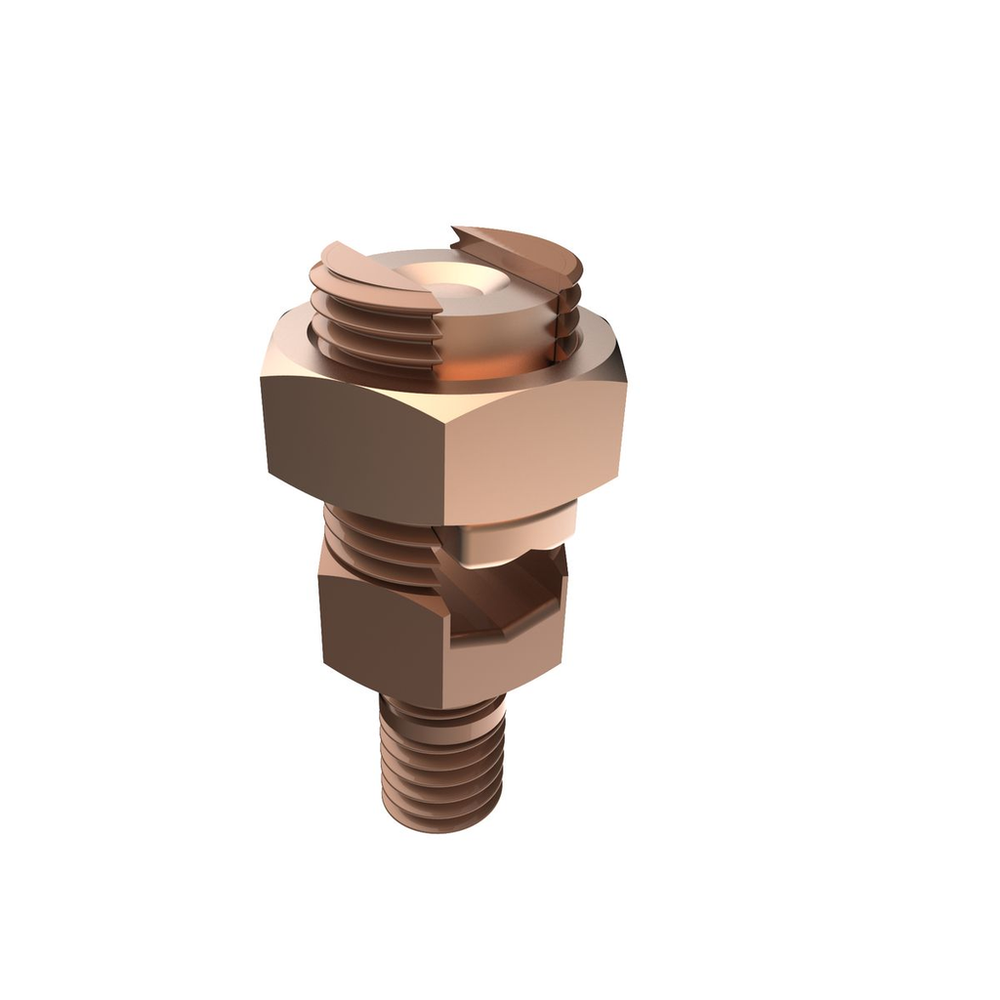

Burndy KC22J12T13
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper transformer ground connector. Fits all standard EEI-NEMA distribution transformers as tank grounding terminal, Accommodates: 8 Sol. - 2 Sol. CopperMechanical Transformer Connector
Burndy KC22J12T13 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Used To Fit All Standard EEI-NEMA Distribution Transformers As A Tank Grounding Terminal
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 12.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810127872
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810127873
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Size Range
- 2 AWG-10 AWG
- Conductor - Copper Str Size Range
- 3 AWG-10 AWG
- Country of Origin
- US
- Description - Invoice
- SERVIT POST MALE
- Dimension - B Length inch
- 0.41 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Cross Flats inch
- 0.62 in
- Dimension - D inch
- 0.50 in
- Dimension - Height inch
- 1.00 in
- Dimension - Length Overall inch
- 1.50 in
- Dimension - L Length Overall mm
- 38 mm
- Dimension - P inch
- 0.27 in
- Dimension - Threads per inch
- 13
- Dimension - Width inch
- 25 mm
- Dimension - Width mm
- 22 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.88 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 80 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Bronze, Leaded, Commercial
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 12 lb.
- Package - GTIN - Package
- 30781810127873
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810127872
- Package - Total Units
- 100 EA
- Package Weight
- 12 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810127871
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2133.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Conductors Accommodated Total
- 2
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: Fits All Standard EEI-NEMA Distribution Transformers As A Tank Grounding Terminal, One-Wrench Installation, Stud Size: 0.6 IN
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Stud Installation Torque inch pounds
- 80 LBS/in
- Sub Brand
- SERVIT POST
- Sub Class Code
- B41BDGF
- Trade Name
- SERVIT POST™
- Type
- KC and K2C Series
- UL Listed
- Yes
- Width
- 0.88 in
