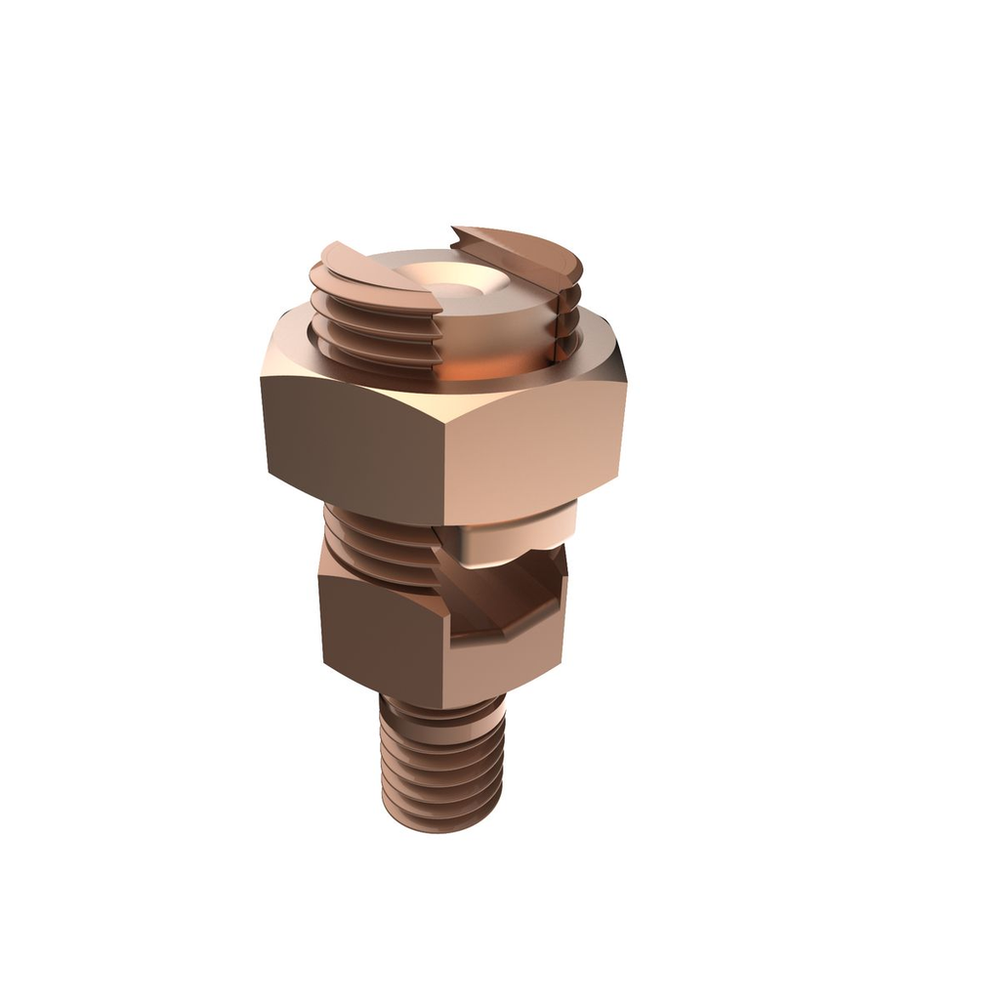

Burndy KC22
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Mechanical Grounding Connector, Cable to Flat, 10-3 AWG (Str) / 10-2 AWG (Sol), 3/8" Stud; Nut Torque: 275 in-lbs, Stud Torque: 280 in-lbsMechanical SERVIT POST™ Connector, Cable to Flat
Burndy KC22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 5.500 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810254905
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810254906
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Size Range
- 2 AWG-10 AWG
- Conductor - Copper Str Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG
- Conductor - Copper Str Size Range
- 3 AWG-10 AWG
- Country of Origin
- US
- Description - Invoice
- 10-3 STR 15/32 POST 1 CO
- Dimension - B Length fraction
- 15/32 in
- Dimension - B Length inch
- 0.46 in
- Dimension - Body Width inch
- 0.62 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - D inch
- 0.63 in
- Dimension - Height fraction
- 1
- Dimension - Height inch
- 1.00 in
- Dimension - Length Overall inch
- 1.62 in
- Dimension - L Length Overall mm
- 41.1 mm
- Dimension - Nut Width inch
- 0.75 in
- Dimension - P inch
- 0.26 in
- Dimension - Threads per inch
- 16
- Dimension - Width inch
- 25 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.75 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Bronze, Leaded, Commercial
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.5 lb.
- Package - GTIN - Package
- 30781810254906
- Package Height
- 4 in
- Package Length
- 4 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810254905
- Package - Total Units
- 50 EA
- Package Weight
- 5.5 lb.
- Package Width
- 4 in
- Pallet - GTIN - Package
- 70781810254904
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1678.500 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Conductors Accommodated Total
- 1
- Plated
- N
- Plating Type
- Leaded Bronze Alloy
- Product Type
- Mechanical
- Special Features
- Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, For 1 Conductor, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Stud/bolt Size: 3/8-16 Diameter, 15/32 IN Length, Height: 1-5/8 IN, Cross Flats: 3/4, 5/8 IN
- Standard
- UL467
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Stud Installation Torque inch pounds
- 280 LBS/in
- Sub Brand
- SERVIT POST
- Sub Class Code
- B41BDGF
- Trade Name
- SERVIT POST™
- Type
- KC and K2C Series
- UL Listed
- Yes
- Width
- 0.75 in
