Burndy KAUKIT1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

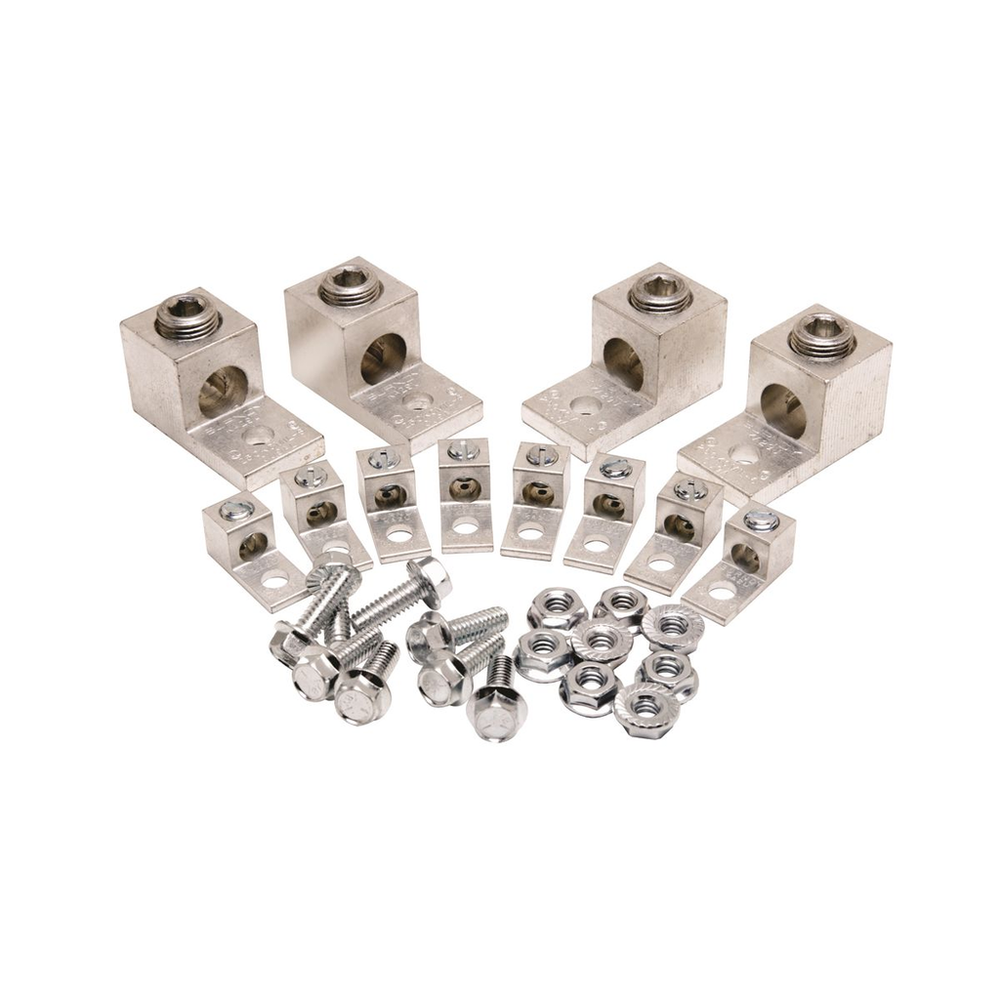

High Strength Aluminium Alloy Tranformer Lug Kit, #14 - 2, #6 - 250 kcmil, Tin-Plated.High Strength Aluminium Alloy Tranformer Lug Kit, #14 - 2, #6 - 250 kcmil, Tin-Plated
Burndy KAUKIT1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- used to provide low contact resistance
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 8.375x14.563x11.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 15.200 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810600115
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810600116
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Connector Type
- Lug/Hardware Kit
- Country of Origin
- MX
- Description - Invoice
- 15-45 KVA TRANSFORMER LU
- Description - Slang
- Universal Terminals
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 7.00 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 15.2 lb.
- Package - GTIN - Package
- 30781810600116
- Package Height
- 7.75 in
- Package Length
- 14 in
- Package - Number of Sub Packs
- 20
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810600115
- Package - Total Units
- 20 EA
- Package Weight
- 15.2 lb.
- Package Width
- 10.5 in
- Pallet - GTIN - Package
- 70781810600114
- Pallet Height
- 47.625 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 805.000 lb.
- Pallet Width
- 40.000 in
- Product Type
- TERMINAL
- Special Features
- Features: These Dual-Rated Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tinplated To Provide Low Contact Resistance, Lugs And Mounting Hardware Packaged Together In These Kits, UL Listed AL9CU Dual Rated Set Screw Terminals And CSA Certified, Ensure The Transformer Feeders And Taps Are Terminated Properly, Plated Steel Cap Screws And Hex Nuts With Captive Conical Washers Or Individual Belleville Washers, Terminal To Bus Connections Are Made Using Proper Hardware Resulting In True Torque To Pressure Performance, Compensates For Dissimilar Metal Expansion And Contraction, Hardware Packed In Plastic Bag, No Lost Hardware Prior To Installation, Conductor Type: Run: Stranded Aluminum Or Copper, Includes: (8) 1/4-20 X 3/4 IN Hex Head, (8) 1/4-20 Hex Head, (8) KA2U, (4) KA29U Terminal, Captive To Nut Flat Washer, Transformer Kva Rating Range: 15 - 37.5 KVA For Single Phase, 15 - 45 KVA For Three Phase
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNIVERSAL TERM
- Sub Class Code
- B51BGFF
- Type
- Bolted Lugs & Terminals
- UL Listed
- No
- Width
- 7.00 in
