Burndy KA31U2N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

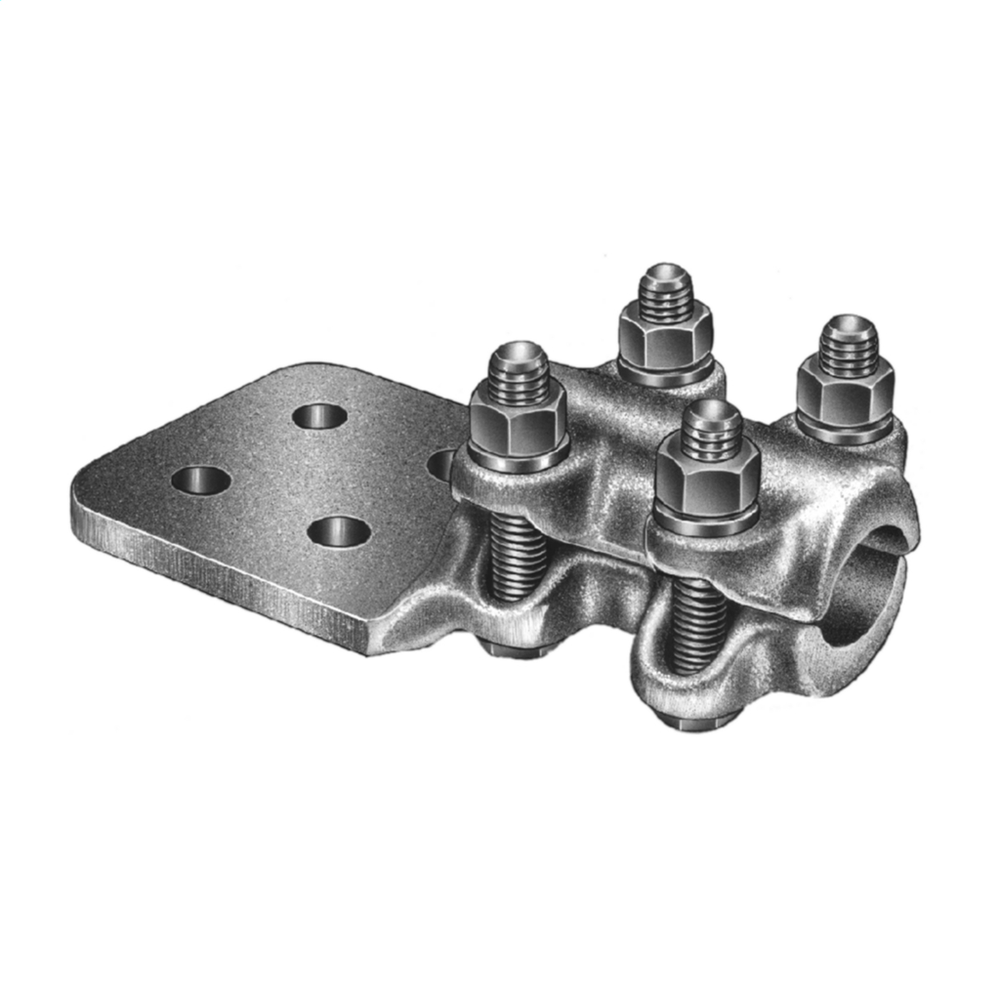

Dual rated for copper and aluminum; #6 Stranded - 350 kcmil copper/aluminum; 1/2 in stud; 2-hole NEMA drilling.Dual Rated Mechanical Connector
Burndy KA31U2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810125069
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810125060
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size Range
- 6 Str. - 350Kcmil
- Conductor - Copper Str Size Range
- 6 Str. - 350Kcmil
- Conductor Size
- 6 AWG-350 KCMIL
- Conductor Type
- CU C Str-Size;AL C Str-Size
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Slang
- 1 Cable to Flat
- Dimension - Bolt Size fraction
- 1/2
- Dimension - E Spacing between Holes fraction
- 1-3/8 in
- Dimension - Height inch
- 1.38 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.50 in
- Dimension - L Length Overall mm
- 114 mm
- Dimension - Width inch
- 1.25 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 22 wk
- Material
- Aluminum
- Number Of Conductors
- 1
- Package - GTIN - Package
- 30781810125060
- Package Quantity
- 50 EA
- Package - Total Units
- 50 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Allen
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard Package Quantity
- 1
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B51BGEF
- Temperature Rating
- 194
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
