Description

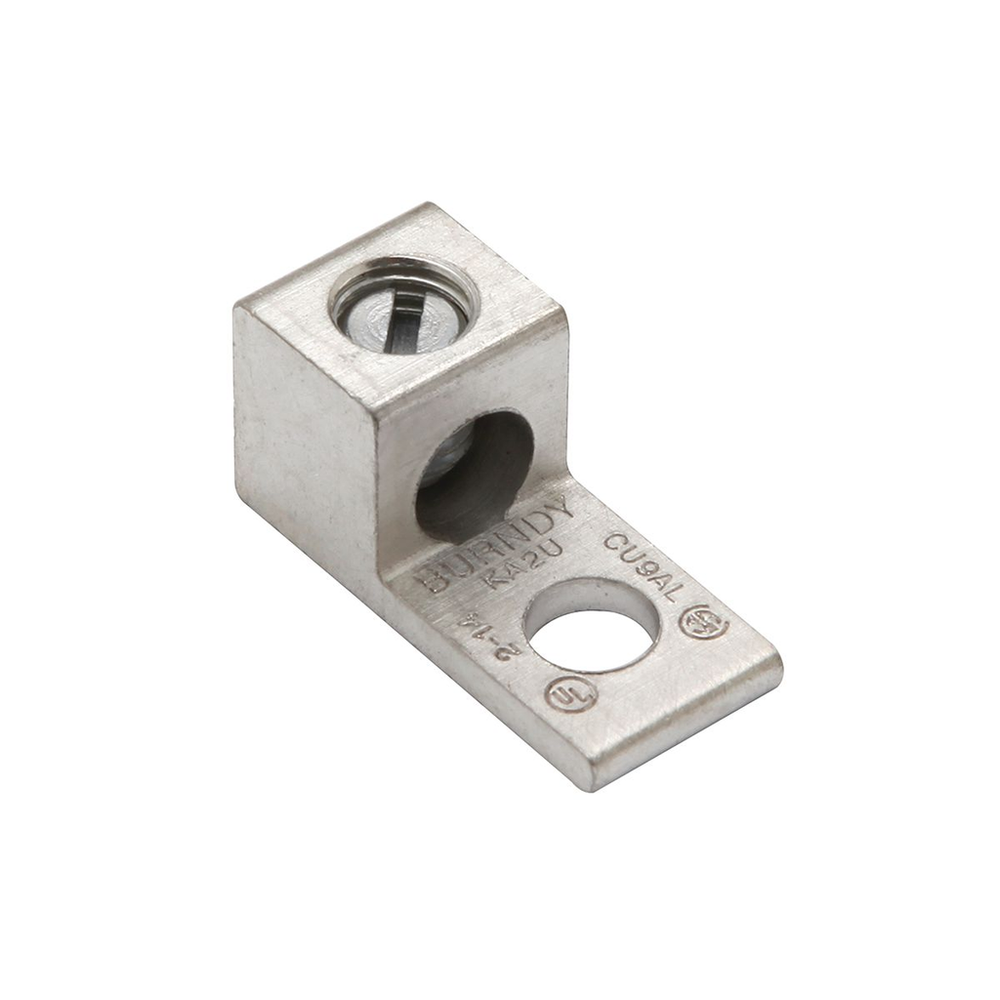

Aluminum Universal Terminal, 1 Hole, 14-2 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated.Aluminum Universal Terminal, 1 Hole, 14-2 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated
Burndy KA2U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
Specifications
- Application
- For Aluminum And Copper Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 1800
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810370056
- Carton - Total Units
- 1800 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810370057
- Certification Agency
- Proposition 65
- ChannelSightWidgetId
- 705
- Class Code
- B51
- Conductor - AL Str Size
- 8;6;4;3;2
- Conductor - AL Str Size Range
- 8-2
- Conductor - Copper Str Size
- 14;12;10;9;8;7;6;5;4;3;2
- Conductor - Copper Str Size Range
- 14-2
- Conductor - Nominal Diameter
- 0.072, 0.091, 0.116, 0.130, 0.146, 0.164, 0.184, 0.184, 0.184, 0.184, 0.184, 0.206, 0.232, 0.232, 0.260, 0.260, 0.292, 0.320
- Conductor Size
- 14-2 AWG
- Conductor Type
- CU C Str-Size;AL C Str-Size
- Connector Type
- Terminal
- Country of Origin
- MX
- Description - Invoice
- 14STR-2STR DUAL RATED
- Description - Slang
- 1 Cable to Flat
- Dimension - Bolt Hole Size inch
- 0.25 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - D inch
- 0.63 in
- Dimension - Height fraction
- 14/25 in
- Dimension - Height inch
- 0.56 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 1.16 in
- Dimension - L Length Overall mm
- 29 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.51 in
- Dimension - Stud Size inch
- 1/4
- Dimension - Width fraction
- 1/2 in
- Dimension - Width inch
- 0.50 in
- Dimension - Width mm
- 13 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.51 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 50 LBS/in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Steel
- MSDS Flag
- No
- Number of Conductors
- 1
- Number Of Conductors
- 1
- Number of Conductors/Ports (Main/Primary)
- 1
- Order Multiple
- 50 EA
- Package - Gross Weight per Pack
- 9.5 lb.
- Package - GTIN - Package
- 30781810370057
- Package Height
- 3 in
- Package Length
- 3 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810370056
- Package - Total Units
- 50 EA
- Package Weight
- 9.5 lb.
- Package Width
- 3 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Slot
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Special Features
- Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 1/4 IN, Set Screw Type: Slot, Length: 1.16 IN, Installation Torque: 50 IN-LB, Width: 0.5 IN, Height: 0.55 IN, Dimension D: 0.63 IN, Dimension N: 0.31 IN, Dimension T: 0.1 IN
- Standard
- UL 486A-486B
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- UNIVERSAL TERM
- Sub Class Code
- B51BGEF
- Temperature Rating
- 194
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Width
- 0.51 in
