Burndy K4A31U4N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

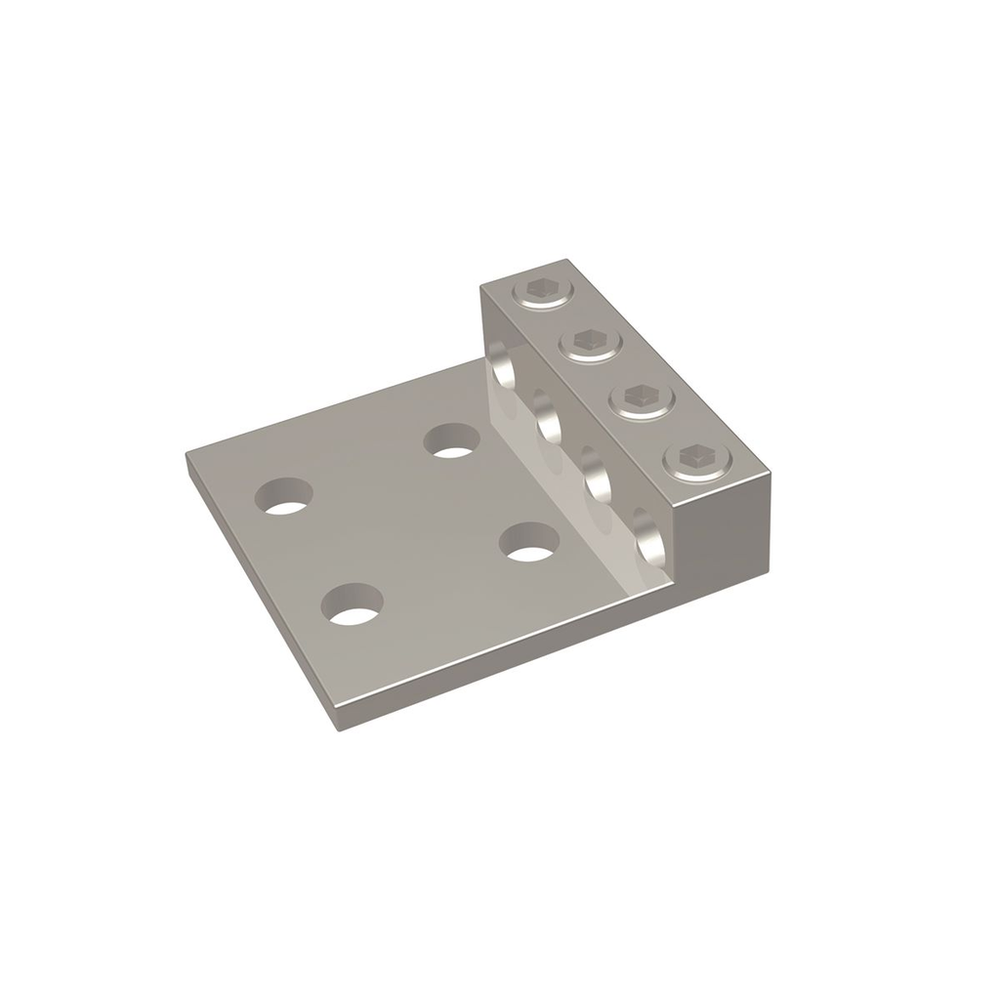

Aluminum Universal Terminal, 4 Conductor, 4 Hole, 6 AWG (Str)-350 kcmil, 1/2" Stud, 1.75" Stud Hole Spacing, 4 Screws, Al/Cu Rated, Tin Plated.Aluminum Universal Terminal, 4 Conductor, 4 Hole, 6 AWG (Str)-350 kcmil
Burndy K4A31U4N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- No
- UL Listed Direct Burial
- No
Specifications
- Application
- For Aluminum and Copper Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810370421
- Case - SCC-14 Next Lower Level Sub Pack
- 70781810370420
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Conductor - AL Str Size Range
- 6 AWG (Str)-350 kcmil
- Conductor - Copper Str Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Size Range
- 6 AWG (Str)-350 kcmil
- Conductor Size
- 6 AWG-350 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Parallel Set-Screw
- Country of Origin
- US
- Description - Invoice
- FOUR:6STR-350 DUAL RATED
- Description - Slang
- 4 Cables to Flat
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.00 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 1.4 in
- Dimension - Height inch
- 1.38 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.50 in
- Dimension - L Length Overall mm
- 115 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 4.72 in
- Dimension - Stud Size inch
- 1/2 in
- Dimension - Width fraction
- 5-1/25 in
- Dimension - Width inch
- 5.04 in
- Dimension - Width mm
- 128 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 4.72 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 275 LBS/in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Number of Conductors
- 4
- Number Of Conductors
- 4
- Number of Conductors/Ports (Main/Primary)
- 4
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 22.08 lb.
- Package - GTIN - Package
- 70781810370420
- Package Height
- 2 in
- Package Length
- 6.375 in
- Package - Number of Sub Packs
- 24
- Package - Pack Description
- Package
- Package Quantity
- 24 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810370421
- Package - Total Units
- 24 EA
- Package Weight
- 22.08 lb.
- Package Width
- 5.875 in
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Screw Type
- Allen
- Plated
- Y
- Plating Type
- Tin plated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Special Features
- Universal terminal, These dual-rated four conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
- Standard
- UL467
- Standard Package Quantity
- 24
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- NC
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNIVERSAL TERM
- Sub Class Code
- B51BGGF
- Temperature Rating
- 194
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Width
- 4.72 in
