Burndy K3A27U4N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

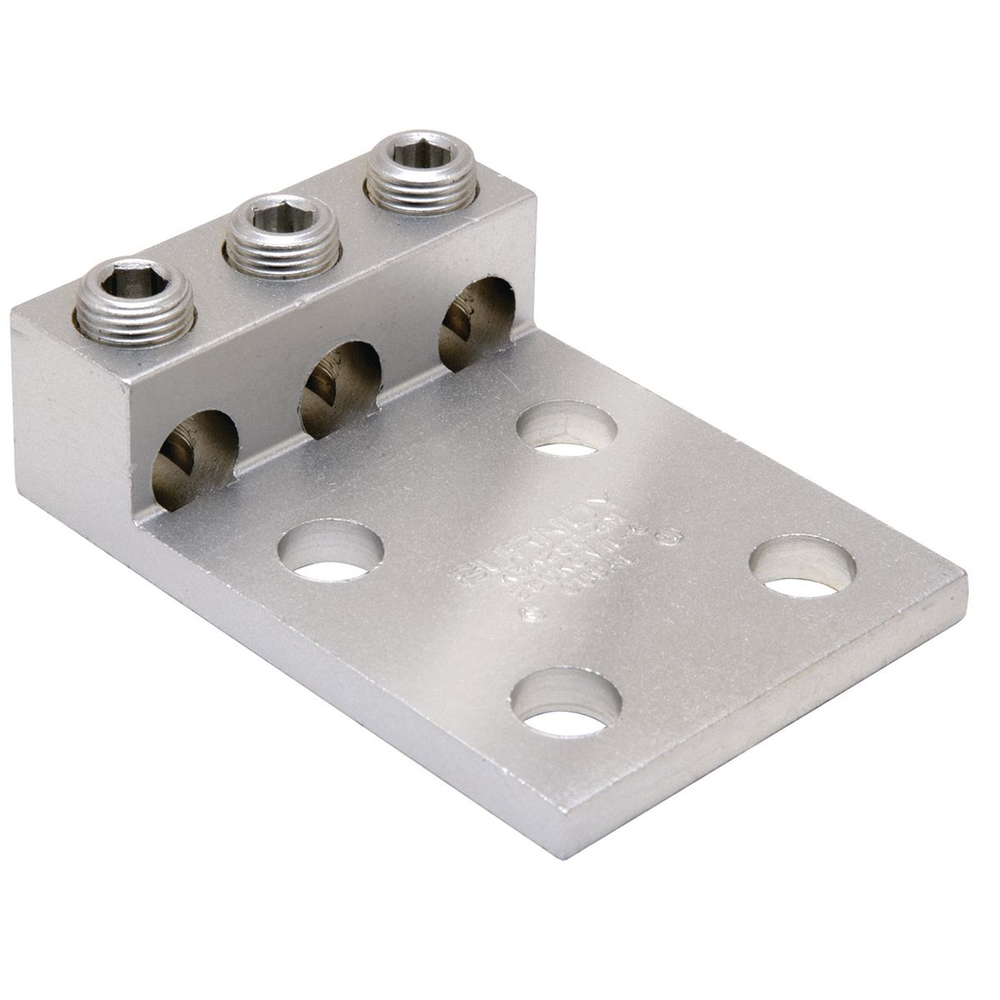

Aluminum Universal Terminal, 3 Conductor, 4 Hole, 6-3/0 AWG (Str), 1/2" Stud, 1.75" Stud Hole Spacing, 3 Screws, Al/Cu Rated, Tin PlatedAluminum Universal Terminal, 3 Conductor, #6 STR-3/0 AWG
Burndy K3A27U4N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810370414
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810370415
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
- Conductor - AL Str Size Range
- 6 Str.-3/0 AWG
- Conductor - Copper Str Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG
- Conductor - Copper Str Size Range
- 6 Str.-3/0 AWG
- Conductor Size
- 6-3/0 AWG
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Parallel Set-Screw
- Country of Origin
- US
- Description - Slang
- 3 Cables to Flat
- Dimension - Bolt Hole Size inch
- 0.57 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.00 in
- Dimension - Height fraction
- 1.125 in
- Dimension - Height inch
- 1.12 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.25 in
- Dimension - L Length Overall mm
- 108 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 2.83 in
- Dimension - Stud Size inch
- 1/2 in
- Dimension - Width fraction
- 2-81/100 in
- Dimension - Width inch
- 2.83 in
- Dimension - Width mm
- 71 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 275 LBS/in
- Lead Time
- 12 wk
- Material
- Aluminum
- Material - Hardware
- Aluminum
- Number Of Conductors
- 3
- Package - GTIN - Package
- 30781810370415
- Package Quantity
- 6 EA
- Package - Total Units
- 6 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810370413
- Pallet - Total Units
- 60 EA
- Pallet Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Number of Screws
- 3
- Physical Attribute - Screw Type
- Slot
- Plated
- Y
- Plating Type
- Tin plated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- NC
- Sub Class Code
- B51BGGF
- Temperature Rating
- 194
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
