Burndy K2C31B1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

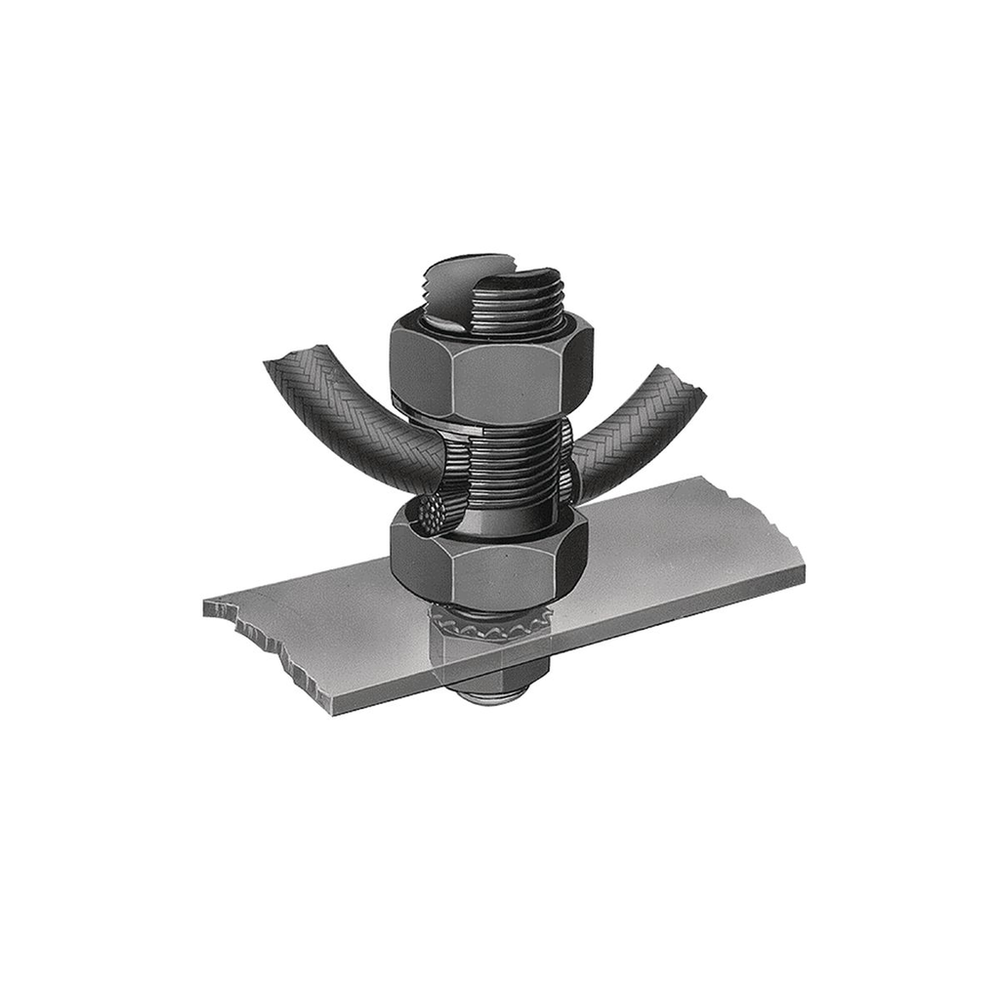

Mechanical Grounding Connector, 2 Cables to Flat, 1 AWG - 350 kcmil (Str).SERVIT POST™ Mechanical Connector, 2 Cables to Flat
Burndy K2C31B1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810257654
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810257655
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Str Size
- 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Size Range
- 1 AWG-350 kcmil
- Country of Origin
- US
- Description - Invoice
- 1-350 STR 1 1/4 POST 2 C
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - B Length inch
- 1.23 in
- Dimension - Body Width inch
- 1.43 in
- Dimension - Bolt Size fraction
- 5/8
- Dimension - D inch
- 1.50 in
- Dimension - Height fraction
- 2-1/4
- Dimension - Height inch
- 2.19 in
- Dimension - Length Overall inch
- 3.69 in
- Dimension - L Length Overall mm
- 93.7 mm
- Dimension - Nut Width inch
- 1.69 in
- Dimension - P inch
- 0.70 in
- Dimension - Threads per inch
- 11
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.91 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10.92 lb.
- Package - GTIN - Package
- 30781810257655
- Package Height
- 4.50 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810257654
- Package - Total Units
- 12 EA
- Package Weight
- 10.92 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Conductors Accommodated Total
- 2
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, Cross Flats: 1-11/16, 1-3/8 IN, Conductor Type: Run: Commercial Stranded Copper, Height: 4-3/8 IN, Stud Size: 5/8-11, Dimension B: 1-1/4 IN
- Standard
- UL467
- Standard Package Quantity
- 12
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Stud Installation Torque inch pounds
- 660 LBS/in
- Sub Brand
- SERVIT POST
- Sub Class Code
- B41BDGF
- Trade Name
- SERVIT POST™
- Type
- KC and K2C Series
- UL Listed
- Yes
- Width
- 1.91 in
