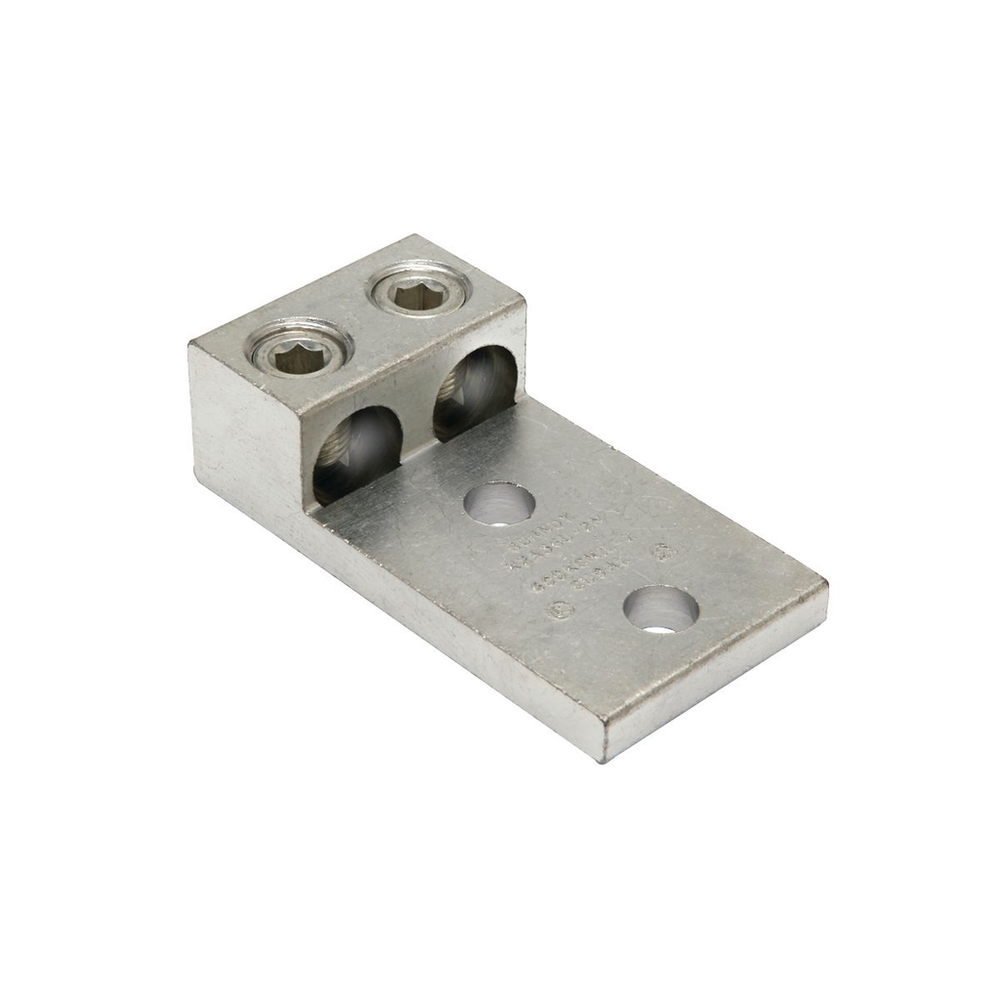

Burndy K2A40U2N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Universal Terminal, 2 Conductor, 2 Hole, 300-800 kcmil, 1/2" Stud, 1.75" Stud Hole Spacing, 2 Screws, Al/Cu Rated, Tin Plated.Aluminum Universal Terminal, 2 Conductor, 2 Hole, 300-800 kcmil
Burndy K2A40U2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- No
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Aluminum and Copper Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810600405
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810600406
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil
- Conductor - AL Str Size Range
- 300-800 kcmil
- Conductor - Copper Str Size
- 300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil
- Conductor - Copper Str Size Range
- 300-800 kcmil
- Conductor Size
- 300-800 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Parallel Set-Screw
- Country of Origin
- US
- Description - Invoice
- TWO:300-800 NEMA
- Description - Slang
- 2 Cables to Flat
- Dimension - Bolt Hole Size inch
- 0.50 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.03 in
- Dimension - Height fraction
- 2 in
- Dimension - Height inch
- 1.95 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.75 in
- Dimension - L Length Overall mm
- 121 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 3.20 in
- Dimension - Screw Size inch
- 3/8
- Dimension - Stud Size inch
- 1/2 in
- Dimension - Width fraction
- 3-19/100 in
- Dimension - Width inch
- 3.20 in
- Dimension - Width mm
- 81 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.2 in
- Freight Class Code
- 16027000
- Hardware Type
- 3/8 UNC Slotted Set Screw
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 375 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Number of Conductors
- 2
- Number Of Conductors
- 2
- Number of Conductors/Ports (Main/Primary)
- 2
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.48 lb.
- Package - GTIN - Package
- 30781810600406
- Package Height
- 8.875 in
- Package Length
- 2.125 in
- Package - Number of Sub Packs
- 3
- Package - Pack Description
- Package
- Package Quantity
- 3 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810600405
- Package - Total Units
- 3 EA
- Package Weight
- 3.48 lb.
- Package Width
- 5.375 in
- Pallet - GTIN - Package
- 70781810600404
- Pallet - Total Units
- 30 EA
- Pallet Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Screw Type
- Slot
- Plated
- N
- Plating Type
- Tin plated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Special Features
- Universal terminal, Dual-rated two conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
- Standard
- UL 486A-486B
- Standard Package Quantity
- 3
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- NC
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNIVERSAL TERM
- Sub Class Code
- B51BGGF
- Temperature Rating
- 194
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Width
- 3.2 in
