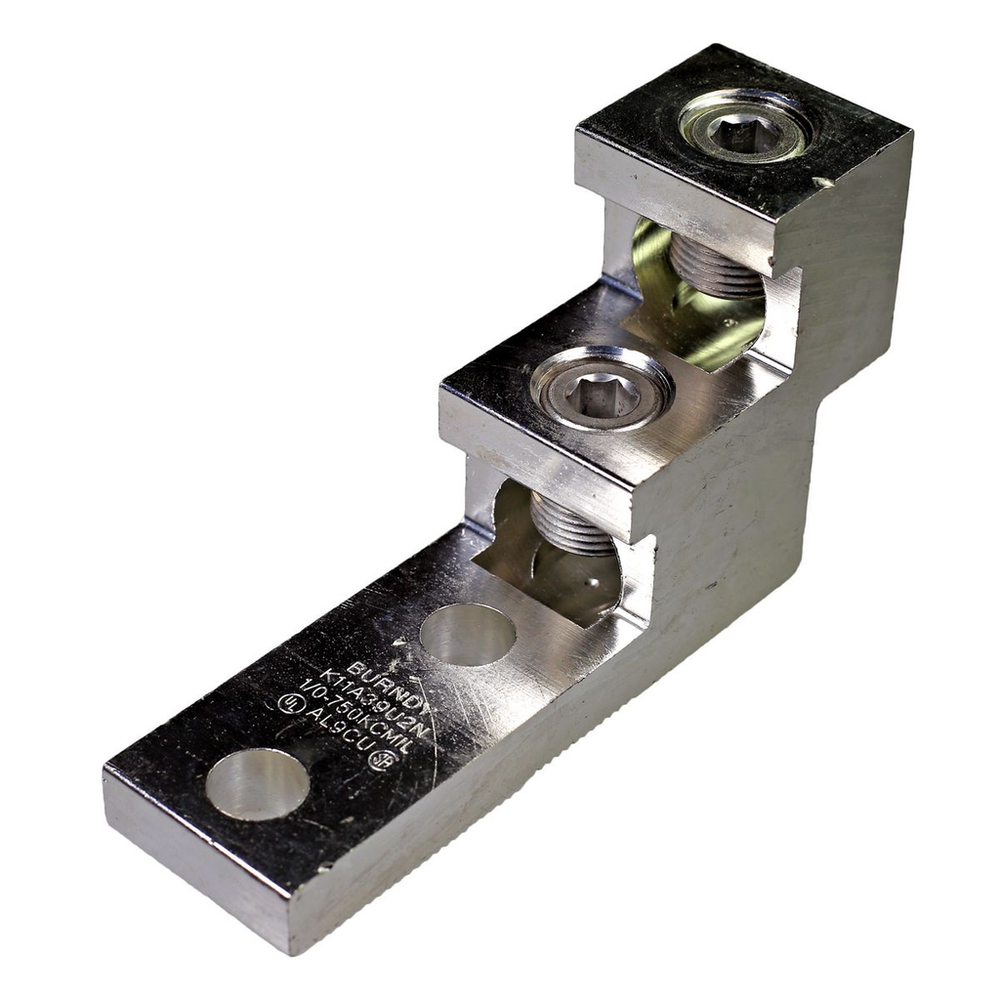

Burndy K11A39U2N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Universal Terminal, 2 Hole, Two: 1/0 AWG (Str)-750 kcmil, 3/8" Stud, NEMA Spacing, 2 Screws, Al/Cu Rated, Tin Plated.Aluminum Universal Terminal, 2 Hole, Two: 1/0 AWG (Str)-750 kcmil, 3/8" Stud, 1.38" Stud Hole Spacing, 2 Screws, Al/Cu Rated, Tin Plated
Burndy K11A39U2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- UL Listed Direct Burial
- No
Specifications
- Application
- Terminate multiple conductors onto equiment pads, panel boards, or switchgear
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945455986
- Case - SCC-14 Next Lower Level Sub Pack
- 30621945455987
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil
- Conductor - AL Str Size Range
- 1/0 AWG-750 kcmil
- Conductor - Copper Solid Size
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 1/0 AWG-4/0 AWG
- Conductor - Copper Str Size
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil
- Conductor - Copper Str Size Range
- 1/0 -750 kcmil
- Conductor Range
- 750 Kcmil - #1/0 AWG
- Conductor Size
- 1/0 AWG-750 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size;CU C Solid-Size
- Connector Type
- Stacked
- Country of Origin
- US
- Description - Invoice
- (2) 1/0-750; 2-HOLE NEMA
- Description - Slang
- Universal Terminals
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Height fraction
- 3 in
- Dimension - Height inch
- 3.00 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 5.69 in
- Dimension - L Length Overall mm
- 144 mm
- Dimensions
- 5.34 in x 1.50 in x 3.00 in
- Dimension - Screw Size inch
- 15/16
- Dimension - Stud Size fraction
- 3/8
- Dimension - Width inch
- 1.50 in
- Dimension - Width mm
- 38 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Height
- 3.00 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 22 wk
- Length
- 5.34 in
- Material
- Aluminum
- Material - Hardware
- Aluminum
- Number Of Conductors
- 2
- Package - GTIN - Package
- 30621945455987
- Package Quantity
- 18 EA
- Package - Total Units
- 18 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Number of Screws
- 2
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Replacement Catalog Number
- K11A39U2
- Standards - Industry Standards Met
- UL 486A-486B
- Sub Class Code
- B51BGGF
- Temperature Rating
- 194
- Thickness
- 0.50 in
- Type
- Bolted Lugs & Terminals
- Width
- 1.50 in
