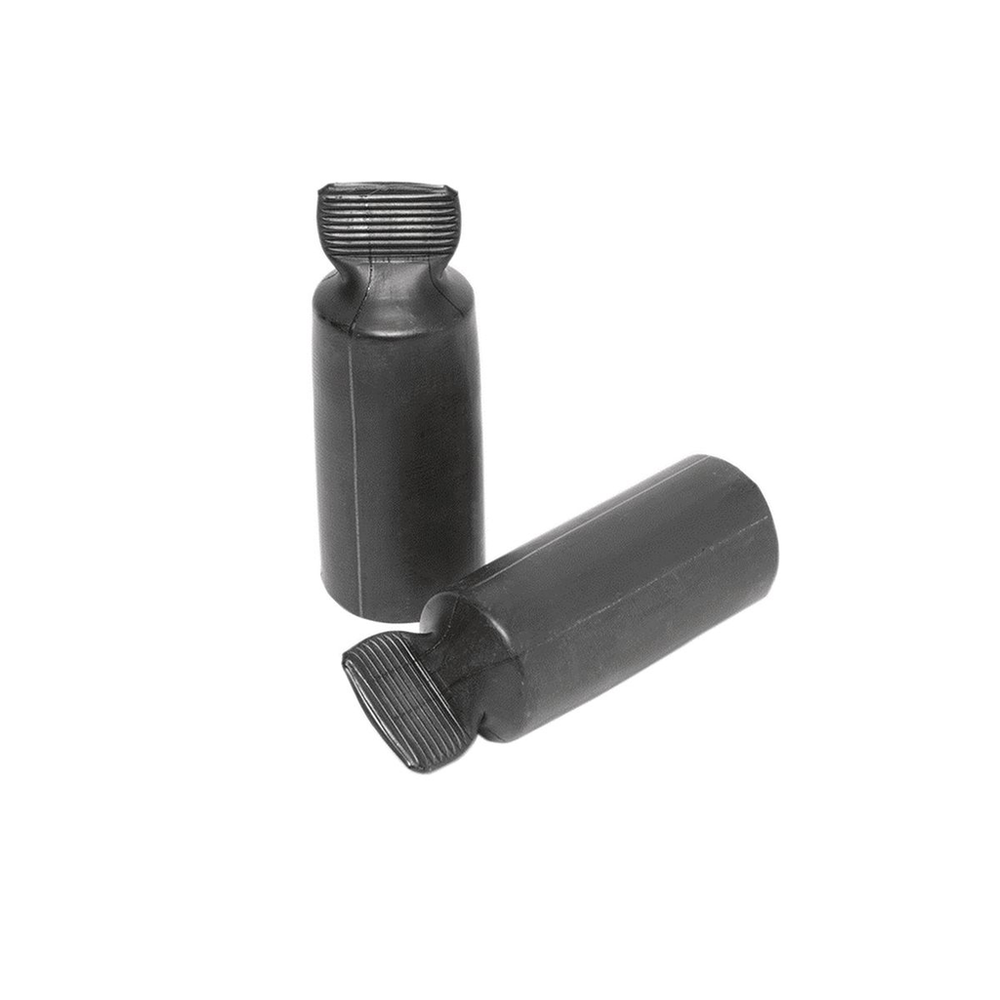

Burndy HSIC301000FR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Wall Cross-Linked Black Polyolefin Heat Shrinkable End Cap, 3/0-1000 kcmil Code, 2/0-646 kcmil Flex, 600 V, Fire Retardant.Heavy wall heat shrinkable end cap, 1.50" ID Min.(Exp.), 0.47" ID Max.(Rec.), 2/0 - 646 kcmil(flex), Polyolefin, Thick Wall, Black, Shrink ratio-3:1, 600V
Burndy HSIC301000FR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
Specifications
- Application
- For Used To Insulating Exposed Conductors In Energized Applications
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810266564
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810266565
- Class Code
- B73
- Color
- Black
- Conductor Range
- #2/0 AWG - 646 Kcmil
- Conductor Size
- 3/0AWG - 1000kcmil
- Connector Type
- HEAVY WALL END CAP
- Country of Origin
- CA
- Description - Invoice
- 5/PK, 3/0-1000, HVYWALL
- Description - Slang
- Heat Shrink End Caps
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.50 in
- Freight Class Code
- 16027000
- Harmonization Code
- 3926909985
- Image Actual Or Representative
- A
- Lowest Level UOM
- Each
- Material
- Cross-linked Polyolefin
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 4.7 lb.
- Package - GTIN - Package
- 30781810266565
- Package Height
- 16.00 in
- Package Length
- 10.25 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810266564
- Package - Total Units
- 10 EA
- Package Weight
- 4.7 lb.
- Package Width
- 7.25 in
- Product Type
- HEAT SHRINK
- Special Features
- Features: Type HSIC-FR, Heat Shrink Insulating End Cap Fire Retardant Is A Heavy Wall, Fire Retardant End Cap Made Of Cross-Linked Thermally Stabilized Black Polyolefin, Used To Insulate Exposed Conductors In Energized Applications, The 3:1 Shrink Ratio Offers Greater Range, Accommodating Copper Wire Sizes, 8 AWG Thru 2500+ KCMIL, Performs Effectively Over Lead, Aluminum, Steel, Polyethylene, EPR, And PVC Jacketed Materials, Blue Thermal Chromatic Lines Disappear Indicating Correct Installation Temperature And Provide Inspectability, I.D. Adhesive Provides Superior Moisture And Weather Resistant Characteristics, Minimum 28 Oxygen Index, UL94-VO Rated: Self-Extinguishing Flame Retardant Properties, 3:1 Shrink Ratio: Minimum Inventory Required, Thermal Chromatic Lines: Indicate Proper Installation, Low Shrink Temperature 150 DEG C: Only Requires Common Hot Air Gun To Apply, Meets Sealing Requirements: ANSI-C119.1, UL486D, Weather And Moisture Resistant, Inner Diameter Expanded: 1.5 IN Minimum, Inner Diameter After Recovery: 0.47 IN Maximum, Material: Cross-Linked Thermally Stabilized Black Polyolefin, Conductor Range: 3/0 AWG - 1000 KCMIL (Code), 2/0 AWG - 646 KCMIL (Flex)
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HEAT SHRINK
- Sub Class Code
- B73BR3F
- Type
- HSIC-FR, Heavy Wall, Fire Retardant
- Width
- 1.50 in
