Burndy GKA4C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

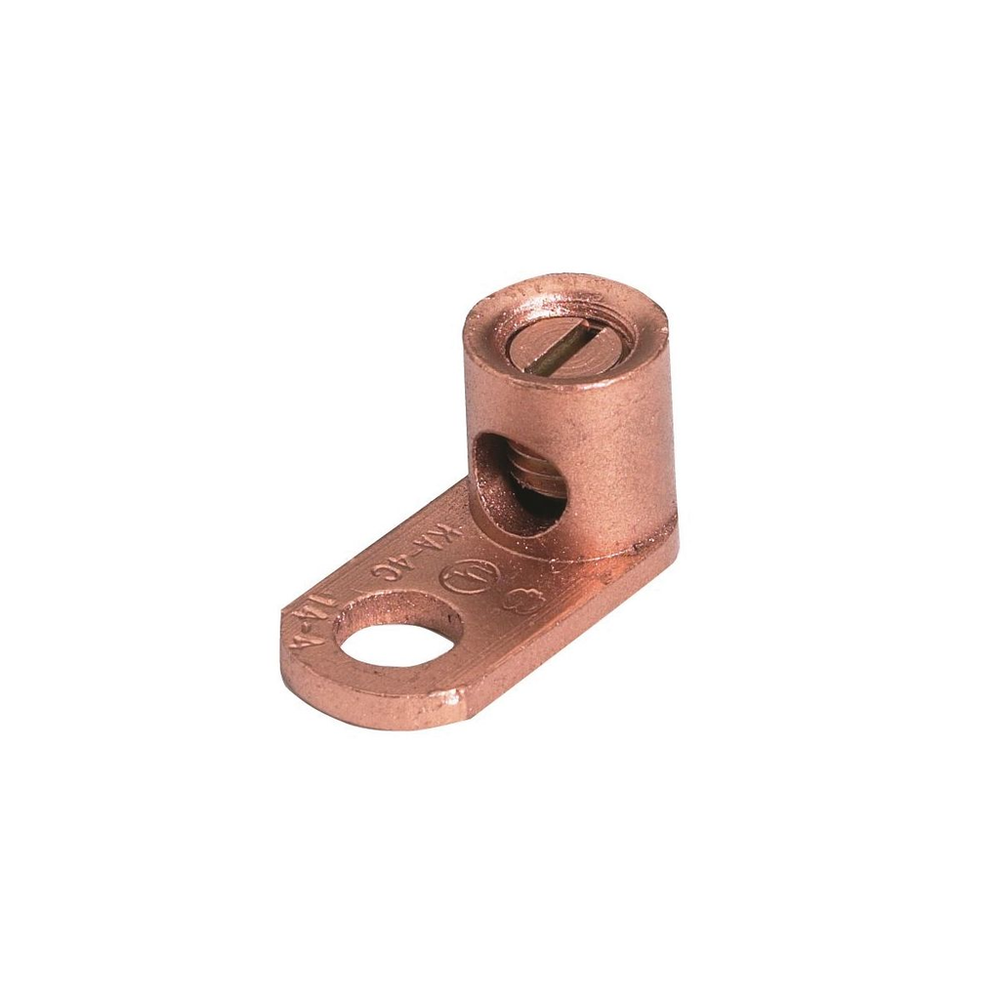

Copper Alloy Direct Burial Terminal, #14 Sol. - #4 Str., 1.13 in L.Copper Alloy Direct Burial Terminal, #14 Sol. - #4 Str., 1.13 in L
Burndy GKA4C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial Applications In Earth Or Concrete
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810100998
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810100999
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Solid Size Range
- 14 AWG-4 AWG
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Str Size Range
- 14 AWG-4 AWG
- Conductor Type
- CU C Str-Size;CU C Solid-Size
- Country of Origin
- IN
- Description - Invoice
- 14-4 CU GRD LUG,DB,MECH
- Dimension - B Length inch
- 0.46 in
- Dimension - Height inch
- 0.71 in
- Dimension - Hole Size inch
- 0.28 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 1.13 in
- Dimension - L Length Overall mm
- 29 mm
- Dimension - N inch
- 0.25 in
- Dimension - Pad Width inch
- 0.54 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.54 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 45 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material Type - Screw
- Steel - Stainless
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.4 lb.
- Package - GTIN - Package
- 30781810100999
- Package Height
- 3.50 in
- Package Length
- 20.20 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810100998
- Package - Total Units
- 100 EA
- Package Weight
- 3.4 lb.
- Package Width
- 10.50 in
- Physical Attribute - Screw Type
- Slot
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: UL467 Listed For Direct Burial Applications In Earth Or Concrete, One-Piece Forged Body Construction Insures Mechanical Integrity In An Underground Environment, Supplied With A Stainless Steel Headless Screw, To Be Assembled With TMH 323 Stainless Steel Hardware Kit, Length: 1.13 IN, Width: 0.54 IN, Dimension K: 0.28 IN, Dimension B: 0.46 IN, Height: 0.71 IN
- Standard
- UL467
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD2F
- Type
- GKA
- UL Listed
- Yes
- Width
- 0.54 in
