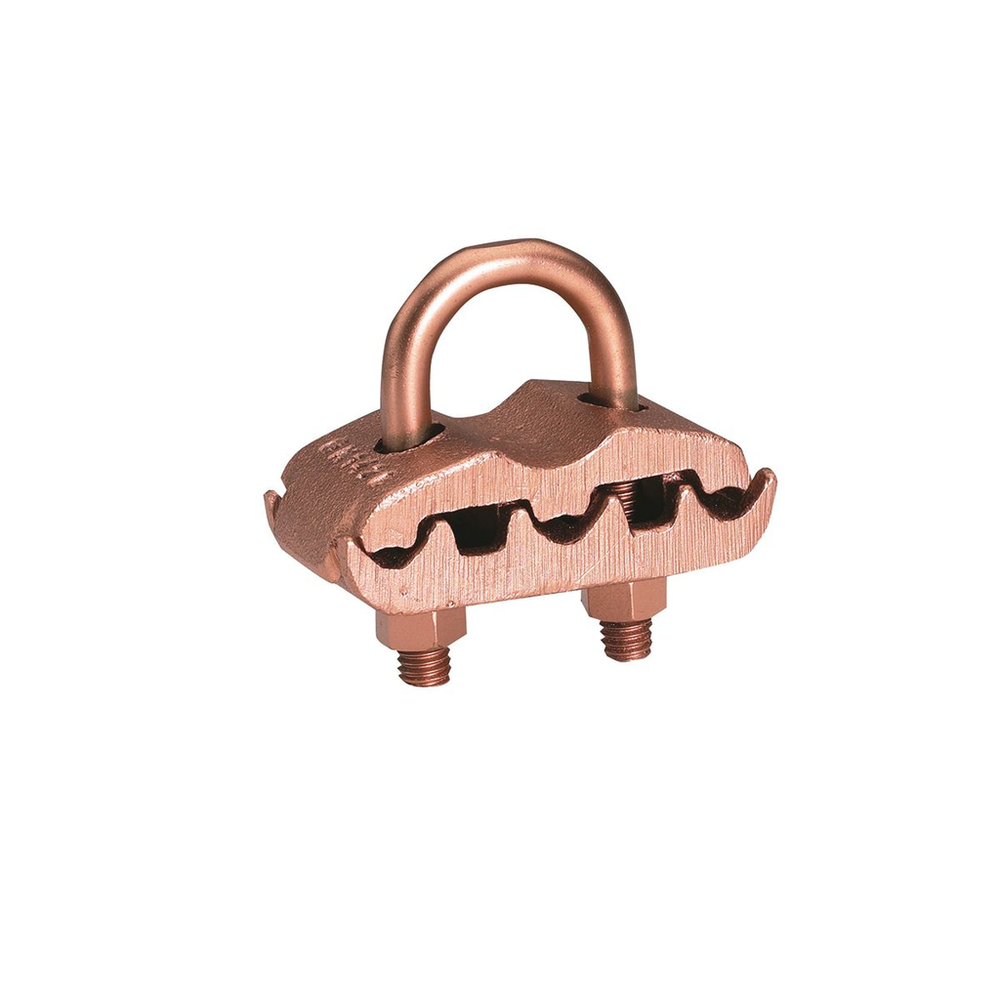

Burndy GK644C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Mechanical Grounding Connector, 3 Cables to Rod or Pipe, 8 AWG (Sol.) - 4/0 AWG (Str.), 3/8" Pipe, 5/8" - 3/4" Rod, 3/8" Stud.Mechanical Grounding Connector, 3 Cables to Rod or Pipe, 8 AWG (Sol.) - 4/0 AWG (Str.), 3/8" Pipe, 5/8" - 3/4" Rod, 3/8" Stud
Burndy GK644C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining Three Equal Copper Cables To Rod Or Tube, Direct Burial In Earth Or Concrete
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Bolt Size
- 3/8 in
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810233511
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810233512
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Rod Size
- 5/8 in ; 3/4 in
- Conductor Size
- #8 AWG Sol - 4/0 AWG Str
- Country of Origin
- US
- Description - Invoice
- 8SOL-4STR, 3/8 IPS, 3 C
- Dimension - B Length inch
- 1.38 in
- Dimension - Height inch
- 2.81 in
- Dimension - Width fraction
- 2-5/8 in
- Dimension - Width inch
- 2.63 in
- Dimension - Width mm
- 67 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.63 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 240 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy, Cast
- Material Type - Screw
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 9.12 lb.
- Package - GTIN - Package
- 30781810233512
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810233511
- Package - Total Units
- 12 EA
- Package Weight
- 9.12 lb.
- Package Width
- 4.56 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy Ground Connector For Joining Three Equal Cables To Rod Or Tube, Cable Grooves Take A Wide Range Of Cable, High Copper Alloy Cast Body And DURIUM U-Bolts, Nuts, And Lockwashers Make The GK Suitable For Direct Burial In Soil Or Concrete, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Tube (ips) Size: 3/8 IN, Ground Rod Size: 5/8 - 3/4 IN, Height: 2-7/8 IN, Installation Torque: 240 IN-LB, Width: 2-5/8 IN
- Standard
- UL467
- Standard Package Quantity
- 12
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD2F
- Type
- Three Cables to Rod or Tube
- UL Listed
- Yes
- Width
- 2.63 in
