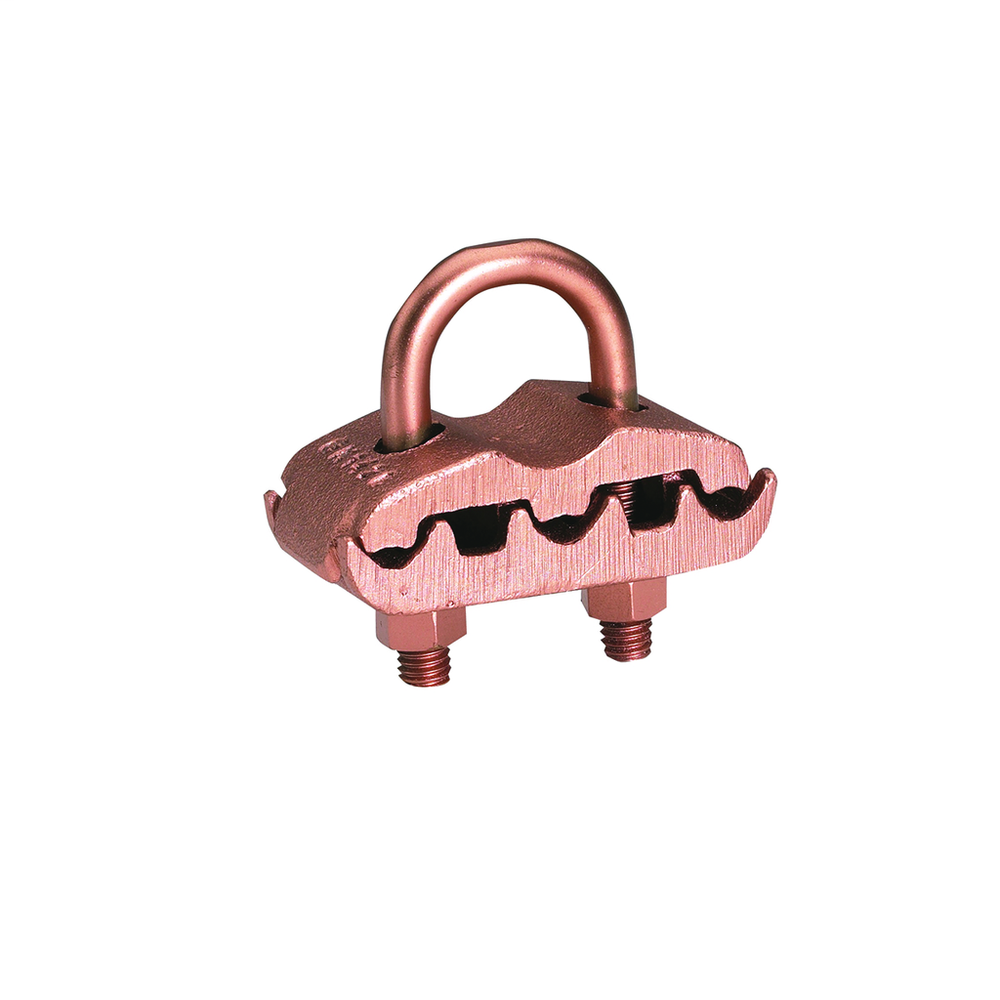

Burndy GK1829
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Mechanical Grounding Connector, 3 Cables to Rod or Pipe, 2/0 AWG (Sol.) - 250kcmil, 2" Pipe, 2" - 2-3/8" Rod, 1/2" Stud.Mechanical Connectors and Terminals GK1829
Burndy GK1829 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- UL Listed
- Yes
Conductor Related
- Conductor - Rod Size
- 2 in; 2 7/8 in
- Conductor Size
- 2/0 AWG Sol - 250 kcmil
Dimensions
- Bolt Size
- 1/2 in
- Dimension - B Length inch
- 1.63 in
- Dimension - Height inch
- 4.38 in
- Dimension - Width fraction
- 5-1/8 in
- Dimension - Width inch
- 5.13 in
- Dimension - Width mm
- 130 mm
General
- Application
- For Joining Three Equal Copper Cables To Rod Or Tube, Direct Burial In Earth Or Concrete
- Installation Torque Recommended in-lb
- 480 LBS/in
- Material
- Copper Alloy, Cast
- Material Type - Screw
- DURIUM™ Silicon Bronze
- Plated
- N
- Plating Type
- Unplated
- Sub Brand
- MECHANICAL CONNECTOR
- Type
- Three Cables to Rod or Tube
- UPC
- 781810233627
- UPC 12 Digit
- 7818102336277
Logistics
- Minimum Pack Quantity
- 4
