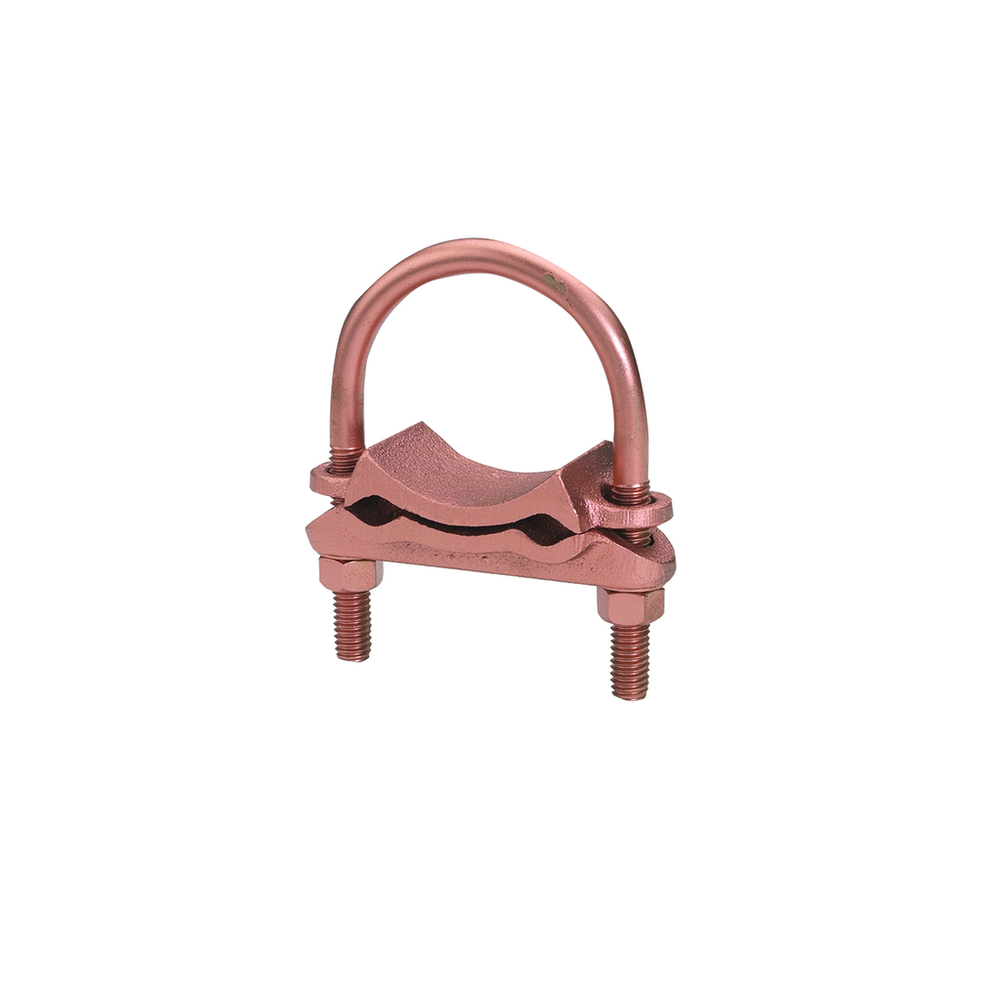

Burndy GD184C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 8 AWG (Sol.) - 4 AWG (Str.), 2" to 2-3/8" Rod, 2" Pipe.Two Cables to Rod or Tube GD184C
Burndy GD184C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Solid Size
- 8;7;6;5;4
- Conductor - Copper Solid Size Range
- 8-4
- Conductor - Copper Str Size
- 8;7;6;5;4
- Conductor - Copper Str Size B Range
- 2
- Conductor - Copper Str Size Range
- 8-4
- Conductor - Copper Tube Std Size
- 2
- Conductor - Copper Tube Std Size Range
- 2
- Conductor - Rod Size
- 2 in
- Conductor - Rod Size Range
- 2 in
Dimensions
- Dimension - B Length inch
- 1.31 in
- Dimension - Height fraction
- 4-3/8 in
- Dimension - Height inch
- 4.38 in
- Dimension - Width fraction
- 3-3/4 in
- Dimension - Width inch
- 3.69 in
- Dimension - Width mm
- 94 mm
General
- Application
- For Joining A Range Of Two Parallel Copper Cables To Rod Or Pipe And Burial In Ground Or Concrete
- Installation Torque Recommended in-lb
- 240 LBS/in
- Material
- Copper Alloy, Cast
- Material Type - Screw
- DURIUM™ Silicon Bronze
- Plated
- N
- Plating Type
- Unplated
- Sub Brand
- MECHANICAL CONNECTOR
- Type
- GD
- U Bolt Type
- 259
- UPC
- 781810260326
- UPC 12 Digit
- 7818102603266
Logistics
- Minimum Pack Quantity
- 6
