Description

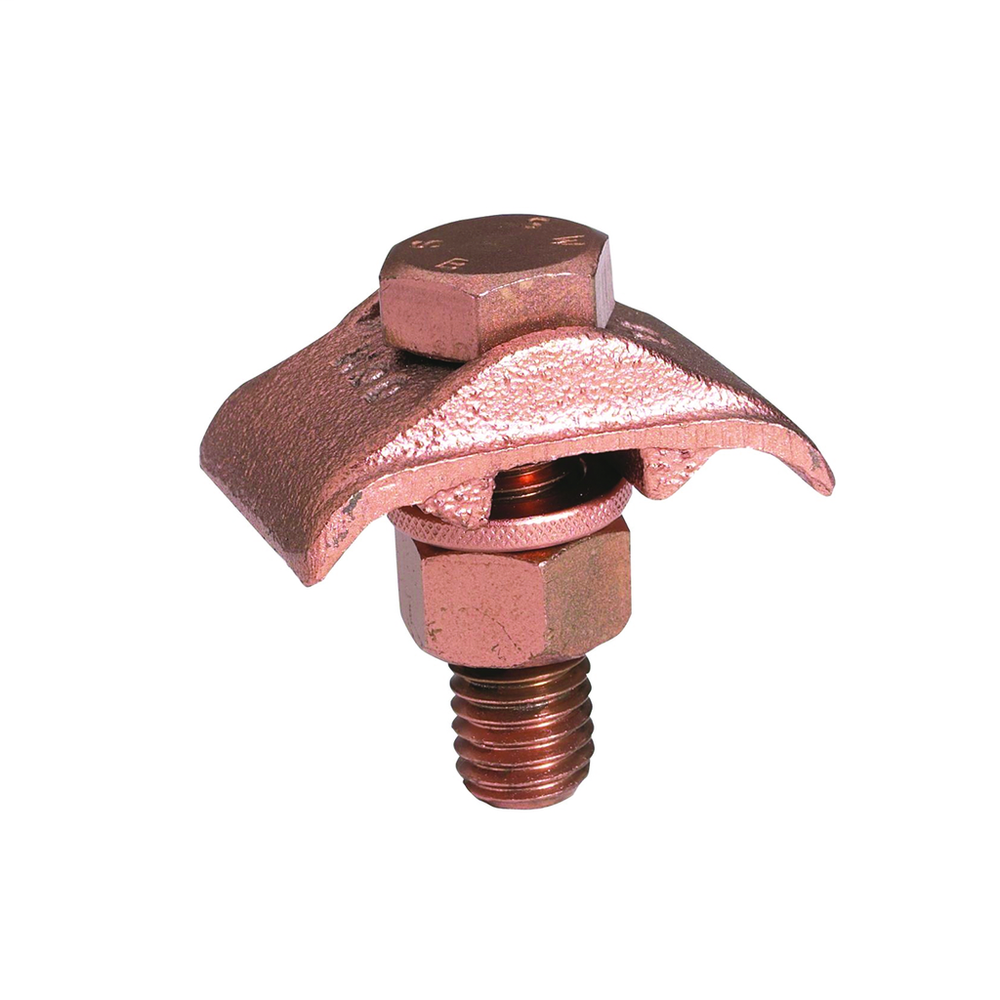

Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, 300 kcmil - 500 kcmilGCM34
Burndy GCM34 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Solid Size Range
- 300 KCMIL - 500 KCMIL
- Conductor - Copper Str Size
- 300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Size Range
- 300 kcmil-500 kcmil
Dimensions
- Dimension - Height inch
- 2.57 in
- Dimension - Length Overall inch
- 1.62 in
- Dimension - L Length Overall mm
- 41 mm
- Dimension - Width fraction
- 2-4/9 in
- Dimension - Width inch
- 2.44 in
- Dimension - Width mm
- 62 mm
General
- Installation Torque Recommended in-lb
- 480 lb-in
- Material
- Copper Alloy
- Material Type - Screw
- DURIUM™ Silicon Bronze
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- UPC
- 781810001813
- UPC 12 Digit
- 7818100018133
