Burndy GC3434
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

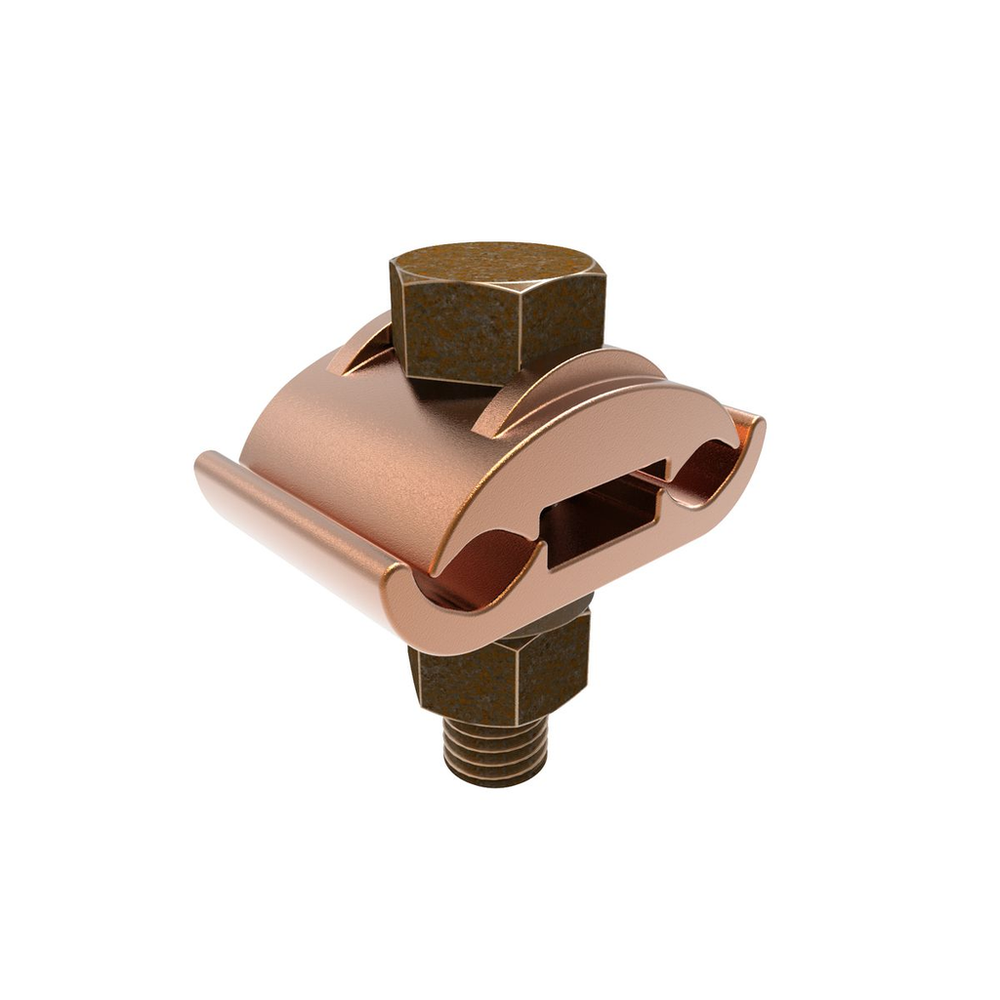

Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, 300 kcmil - 500 kcmil, 1/2" Stud.Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, 300 kcmil - 500 kcmil, 1/2" Stud
Burndy GC3434 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining A Wide Range Of Two Parallel Copper Cables, Direct Burial In Concrete Or Ground
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810231753
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810231754
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size Range
- 300 KCMIL - 500 KCMIL
- Conductor - Copper Str Size
- 300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Size Range
- 300 kcmil - 500 kcmil
- Country of Origin
- MX
- Description - Invoice
- 300-500 TWO CU CABLE
- Dimension - Height inch
- 2.82 in
- Dimension - Length Overall inch
- 1.62 in
- Dimension - L Length Overall mm
- 41 mm
- Dimensions
- 1.62 in x 2.56 in x 2.82 in
- Dimension - Width fraction
- 2-5/9 in
- Dimension - Width inch
- 2.56 in
- Dimension - Width mm
- 65 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.56 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Height
- 2.82 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 480 lb-in
- Lead Time
- 11 wk
- Length
- 1.62 in
- Lowest Level UOM
- Each
- Material
- Copper
- Material Type - Screw
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.58 lb.
- Package - GTIN - Package
- 30781810231754
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810231753
- Package - Total Units
- 6 EA
- Package Weight
- 5.58 lb.
- Package Width
- 4.56 in
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- GC3434
- Special Features
- Features: High Copper Alloy Ground Connector For Joining A Wide Range Of Two Parallel Cables To 1/4 IN Thick Bar, Type GC Separates Cable From Bar, GCM Clamps Cable To Bar Surface, One-Wrench Installation, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make The GC And GCM Suitable For Direct Burial In Concrete Or Ground, Width: 2-7/8 IN, Installation Torque: 240 IN-LB, Bar Thickness: 1/4 IN, Height: 2-7/8 IN
- Standard
- UL467
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD4F
- Type
- GC
- UL Listed
- Yes
- Width
- 2.56 in
