Burndy GC2626CT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

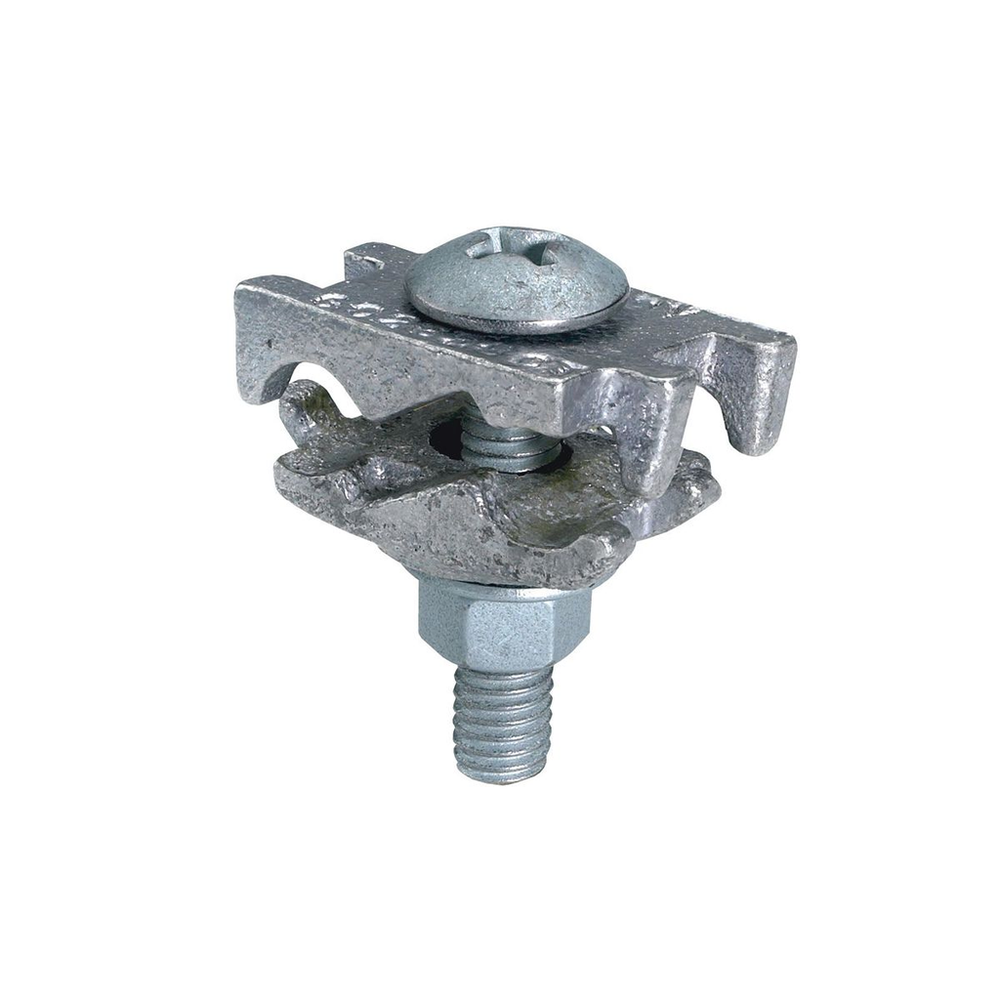

Cable Tray Ground Clamp,Cast CU Alloy, #2 Sol.,2/0 Str. AL or CU, 1.70 in Width, Tin Plated.Mechanical Cable Tray Ground Clamp
Burndy GC2626CT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial Applications In Concrete Or Earth And For Used With Aluminum Or Galvanized Steel Cable Tray
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810220573
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810220574
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - AL Str Size
- 2 AWG;1 AWG;1/0 AWG;2/0 AWG
- Conductor - AL Str Size Range
- 2 AWG-2/0 AWG
- Conductor - Copper Solid Size
- 2 AWG;1 AWG;1/0 AWG;2/0 AWG
- Conductor - Copper Solid Size Range
- 2 AWG-2/0 AWG
- Conductor - Copper Str Size
- 2 AWG;1 AWG;1/0 ;2/0 AWG
- Conductor - Copper Str Size Range
- 2 AWG-2/0 AWG
- Country of Origin
- MX
- Description - Invoice
- 2SOL-2STR CABLETRAY
- Dimension - B Length inch
- 1.12 in
- Dimension - Cross Flats inch
- 0.56 in
- Dimension - Height inch
- 1.95 in
- Dimension - Width inch
- 1.70 in
- Dimension - Width mm
- 43 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.70 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 240 LBS/in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 15 lb.
- Package - GTIN - Package
- 30781810220574
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810220573
- Package - Total Units
- 50 EA
- Package Weight
- 15 lb.
- Package Width
- 6.13 in
- Plated
- Y
- Plating Type
- Tin Plated
- Product Type
- Mechanical
- Replaced Catalog Number
- GC2626CT
- Special Features
- Features: Made Of Tin-Plated Cast Copper Alloy, It Accommodates Either One Or Two Conductors, Copper Or Aluminum Cable, In Addition To A Low Profile Head With A Deep Phillips Recess, The Galvanized Steel Bolt Has A Ribbed Neck Which Prevents Rotation During Installation When Installed In A 0.44 Diameter Hole, When Used On Aluminum Conductor, The Cable Must Be Scratch Brushed And PENETROX A Joint Compound Must Be Used On Cable And Connector, UL467 Listed For Copper Conductor Only, Suitable For Direct Burial In Concrete Or Earth, The Bolt Head Is Mounted On The Inside Wall Of Cable Tray To Avoid Damage To The Cable Insulation, May Be Used With Aluminum Or Galvanized Steel Cable Tray, Stud/bolt Size: 3/8-16, Installation Torque: 240 IN-LB, Width: 1.7 IN, Cross Flats: 0.56 IN, Height: 1.95 IN, Dimension B: 1.12 IN
- Standard
- UL467
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD5F
- Type
- GC-CT
- UL Listed
- Yes
- Width
- 1.70 in
