Burndy GBL30T8
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

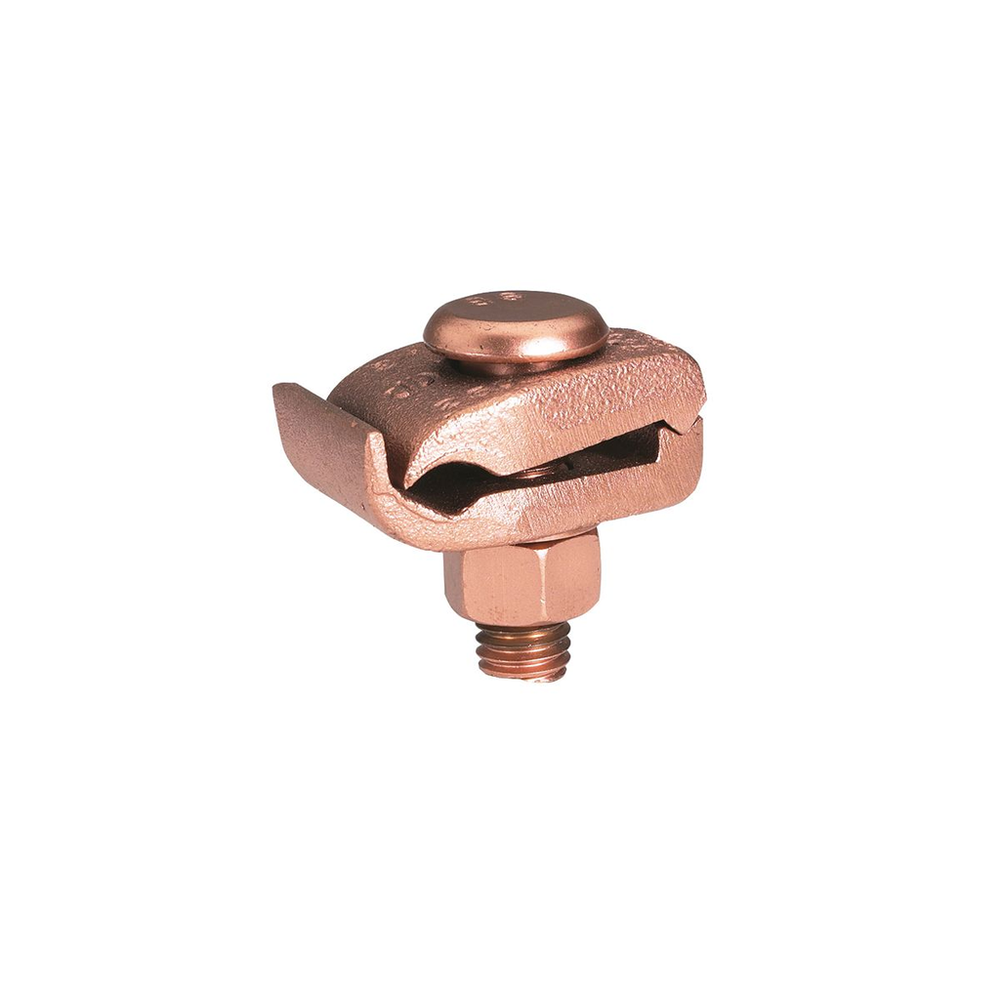

Cast Copper Alloy Ground Connector, 4 AWG (SOL) - 300 KCMIL, 1/2" - 1" Bar Thickness, 1/2" Stud, 1 1/2" Width.Cast Copper Alloy Ground Connector, 4 AWG (SOL) - 300 KCMIL, 1/2" - 1" Bar Thickness, 1/2" Stud, 1 1/2" Width
Burndy GBL30T8 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810100943
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810100944
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 4 AWG - 300 KCMIL
- Conductor - Copper Str Size
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil
- Conductor - Copper Str Size Range
- 4 AWG - 300 kcmil
- Country of Origin
- US
- Dimension - Height inch
- 2.32 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Length Overall inch
- 1.88 in
- Dimension - L Length Overall mm
- 48 mm
- Dimension - Stud Size inch
- 33/64
- Dimension - Width inch
- 1.50 in
- Dimension - Width mm
- 38 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 480 lb-in
- Lead Time
- 12 wk
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- Package - GTIN - Package
- 30781810100944
- Package Quantity
- 12 EA
- Package - Total Units
- 12 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 12
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B41BD7F
- UL Listed
- No
