Burndy GB4C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

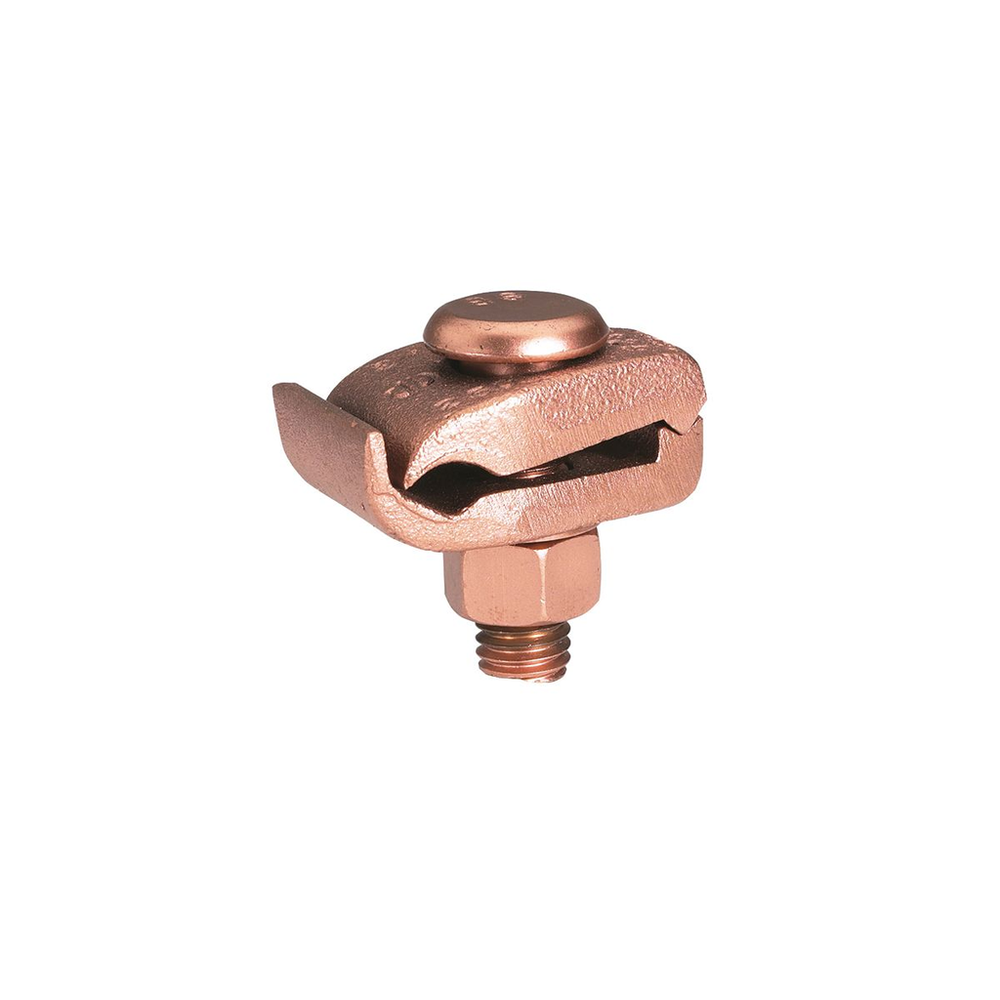

Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 8 AWG (Sol)- 4 AWG (Str), 3/8" Stud1-1/4 IN Width.Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 8 AWG (Sol)- 4 AWG (Str), 3/8" Stud1-1/4 IN Width
Burndy GB4C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
Specifications
- Application
- For Copper Cable To Bar, Direct Burial Cable
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810231180
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810231181
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Solid Size Range
- 8 AWG-4 AWG
- Conductor - Copper Str Size
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Str Size Range
- 8 AWG - 4 AWG
- Country of Origin
- MX
- Description - Invoice
- 8SOL-4STR CU BAR 1 PCSEPARATES CABLE
- Dimension - Height inch
- 1.49 in
- Dimension - Length Overall inch
- 0.88 in
- Dimension - L Length Overall mm
- 22 mm
- Dimension - Width fraction
- 1-3/50 in
- Dimension - Width inch
- 1.06 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.06 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 240 lb-in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material Type - Screw
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.85 lb.
- Package - GTIN - Package
- 30781810231181
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810231180
- Package - Total Units
- 25 EA
- Package Weight
- 3.85 lb.
- Package Width
- 4.56 in
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy Ground Connector For Joining A Range Of Cable To 1/4 IN Thick Bar, Type GB Separates Cable From Bar, One-Wrench Installation, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make The GB And GBM Suitable For Direct Burial In Concrete Or Ground, Width: 1-1/4 IN, Installation Torque: 240 IN-LB, Bar Thickness: 1/4 IN, Height: 1-1/2 IN
- Standard
- UL467
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD4F
- Type
- GB
- UL Listed
- Yes
- Width
- 1.06 in
