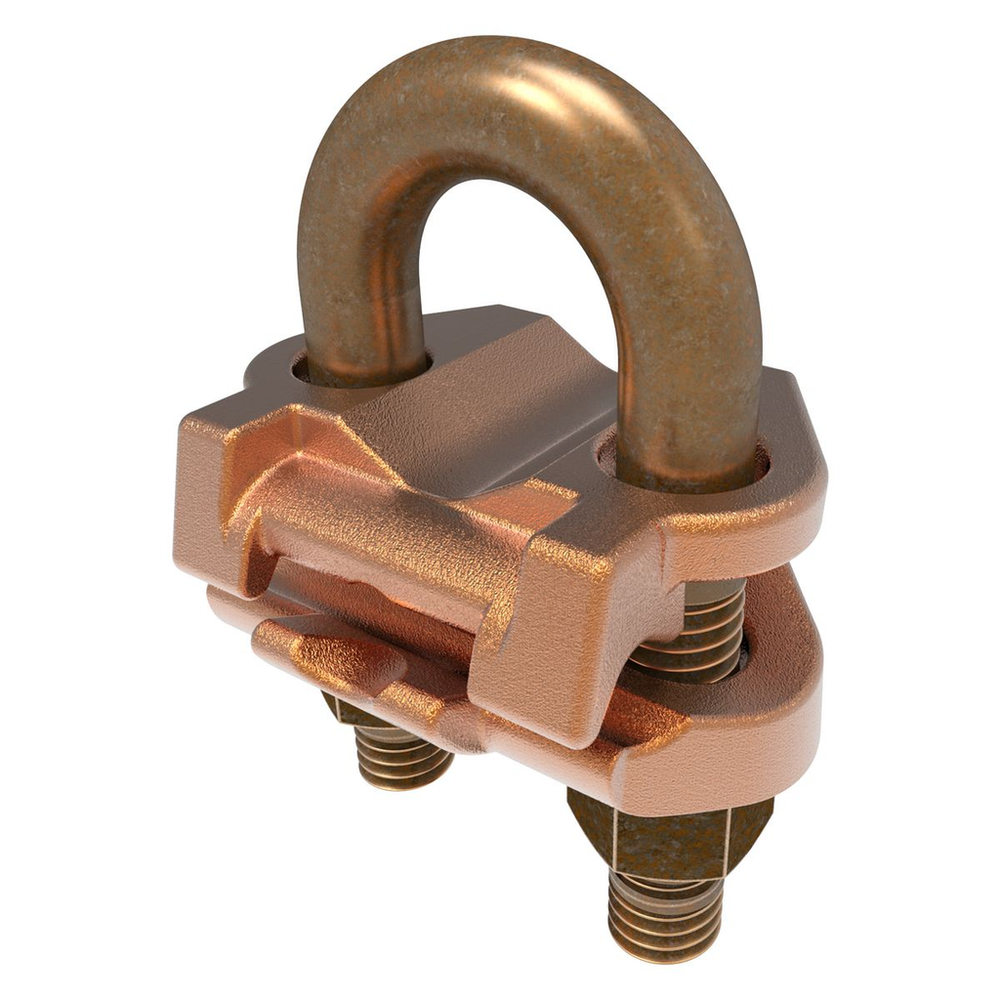

Burndy GAR6426

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Listed Direct Burial
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
• ARRA Compliant
  • No
• Base Unit of Measure
  • EA
• BOX SIZE
  • 4.700x7.300x8.900 (in)
• Buy American Compliant
  • No
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 25
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810238202
• Carton - Total Units
  • 25
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810238203
• Certification Agency
  • Proposition 65
• Class Code
  • B41
• Conductor - Copper Solid Size
  • 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
• Conductor - Copper Solid Size Range
  • 4 AWG-2/0 AWG
• Conductor - Copper Str Size
  • 5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Size Range
  • 5 AWG - 2/0 AWG
• Conductor - Copper Tube Std Size
  • 3/8 IPS IPS
• Conductor - Copper Tube Std Size Range
  • 3/8 IPS IPS
• Conductor - Pipe or Round Tube Size
  • 3/8 in
• Conductor - Rebar Size
  • 5 ;6
• Conductor - Rebar Size Range
  • 5 -6
• Conductor - Rod Size
  • 0.625in - 0.75in
• Conductor - Rod Size Range
  • 5/8 in-3/4 in
• Conductor Type
  • CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size
• Country of Origin
  • MX
• Description - Invoice
  • 4-2/0CU 3/8IPS
• Dimension - B Length inch
  • 1.50 in
• Dimension - Height fraction
  • 2-7/8 in
• Dimension - Height inch
  • 2.88 in
• Dimension - Length Overall inch
  • 1.56 in
• Dimension - L Length Overall mm
  • 40 mm
• Dimension - Outside Diameter inch
  • 0.68 in
• Dimension - Width fraction
  • 2-1/8 in
• Dimension - Width inch
  • 2.06 in
• Dimension - Width mm
  • 52 mm
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 2.06 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908060
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Installation Torque Recommended in-lb
  • 240 lb-in
• Lead Time
  • 10 wk
• Lowest Level UOM
  • Each
• Material
  • Copper Alloy
• Material - Hardware
  • DURIUM™ Silicon Bronze
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 14.7 lb.
• Package - GTIN - Package
  • 30781810238203
• Package Height
  • 4.50 in
• Package Length
  • 7.06 in
• Package - Number of Sub Packs
  • 25
• Package - Pack Description
  • Package
• Package Quantity
  • 25 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810238202
• Package - Total Units
  • 25 EA
• Package Weight
  • 14.7 lb.
• Package Width
  • 6.13 in
• Pallet - GTIN - Package
  • 70781810238201
• Pallet Height
  • 51.700 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 4042.500 lb.
• Pallet Width
  • 48.000 in
• Plated
  • N
• Plating Type
  • Bright Dipped
• Product Type
  • Mechanical
• Special Features
  • Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Height: 2-7/8 IN, Ground Rod Size: 5/8 - 3/4 IN, Tube (ips) Size: 3/8 IN, Width: 2-1/8 IN, Rebar Size: #5 (5/8 IN) - #6 (3/4 IN), Installation Torque: 240 IN-LB
• Standard
  • UL467
• Standard Package Quantity
  • 25
• Standards - Industry Standards Met
  • UL467
• Standards - RoHS Compliance Status
  • EX
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • MECHANICAL CONNECTOR
• Sub Class Code
  • B41BD1F
• Type
  • GAR
• U Bolt Type
  • 269
• UL Listed
  • Yes
• Width
  • 2.06 in
