Burndy GAR3907TC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

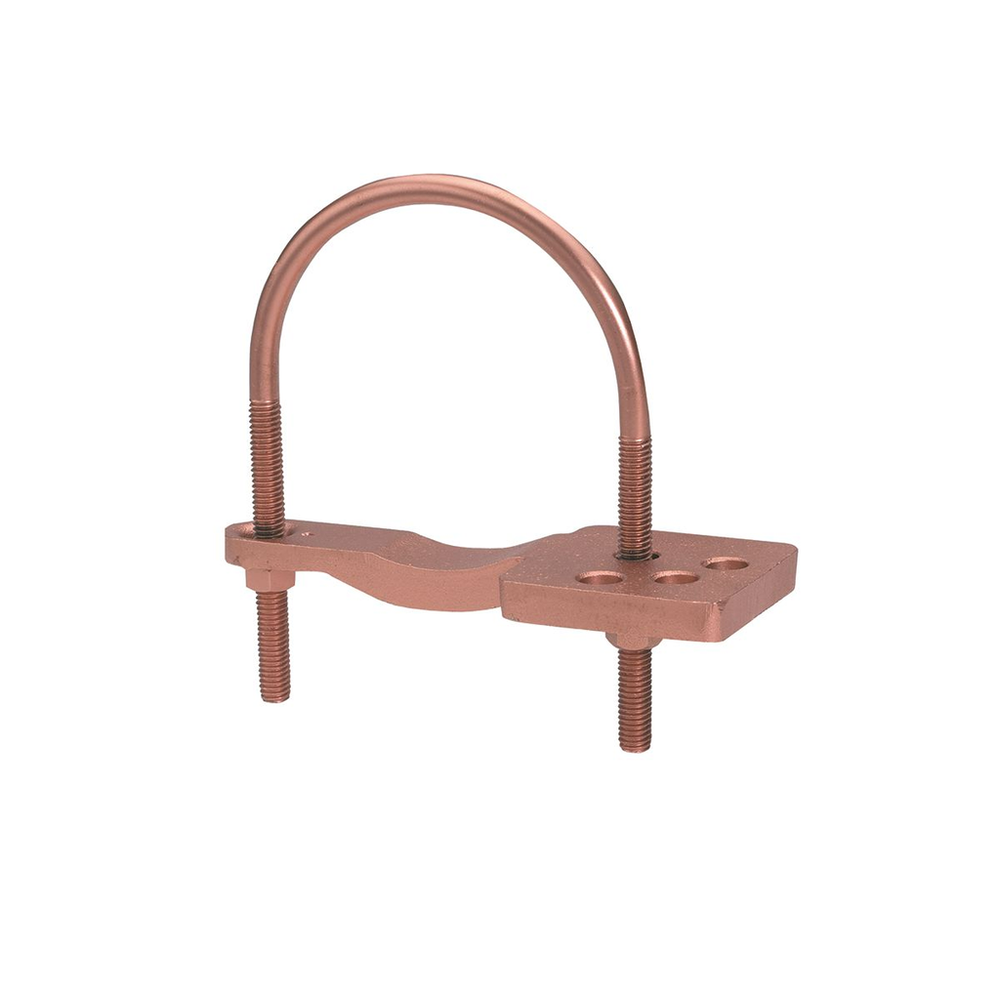

Water pipe Ground Connector, 8" I.P.S, 11.25 in W.Water pipe Ground Connector, 8" I.P.S, 11.25 in W
Burndy GAR3907TC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810001608
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810001609
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Tube EH Size
- 8
- Conductor - Pipe or Round Tube Size
- 8 in
- Country of Origin
- MX
- Description - Invoice
- GRD CONN, 8 IPS
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Height inch
- 10.00 in
- Dimension - Length Overall inch
- 3.63 in
- Dimension - Outside Diameter inch
- 8.62 in
- Dimension - Thread Size
- 3/8-16
- Dimension - Threads per inch
- 16
- Dimension - Width inch
- 11.25 in
- Dimension - Width mm
- 286 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.63 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 240 lb-in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 22 lb.
- Package - GTIN - Package
- 30781810001609
- Package Height
- 6 in
- Package Length
- 14.38 in
- Package - Number of Sub Packs
- 4
- Package - Pack Description
- Package
- Package Quantity
- 4 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810001608
- Package - Total Units
- 4 EA
- Package Weight
- 22 lb.
- Package Width
- 10.88 in
- Physical Attribute - Number of Holes
- 3
- Physical Attribute - Pad Configuration
- 3.63 x 2.67 - 3 Holes
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: Type GAR-TC Is A High-Conductivity Copper Ground Connector That Features A Pre-Drilled Pad, Allowing A 2-Hole Compression Terminal To Be Directly Connected To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Large, Smooth Connector Contact Area Between Pipe And Ground Clamp, Provides Large Surface Contact Area To Maximize Contact Area Between Connector And Pipe, The GAR-TC Mounting Pad Permits Parallel, 45 DEG Or 90 DEG Angle Connections To The Pipe, Provides Maximum Flexibility For Field Installation, Pre-Drilled Pad For (2) 3/8 IN Bolts On 1 IN Centers, Allows Direct Mounting Of (2) Hole Compression Terminals Up To 750 KCMIL To Pipe, DURIUM Silicon Bronze Hardware, Provide Long Lasting Corrosion Resistance Acceptable For Direct Burial In Earth Or Concrete, One-Wrench Installation, Simplified Installation, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Type GAR-TC Is Acceptable For Direct Burial, Ground Rod Size: 8.62 IN, Tube (ips) Size: 8 IN, Height: 10 IN, Installation Torque: 240 IN-LB, Width: 11.25 IN
- Standard
- UL467
- Standard Package Quantity
- 4
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BDCF
- Type
- Rod or Tube Clamp with Mounting Pad
- U Bolt Type
- 1028
- UL Listed
- Yes
- Width
- 3.63 in
