Description

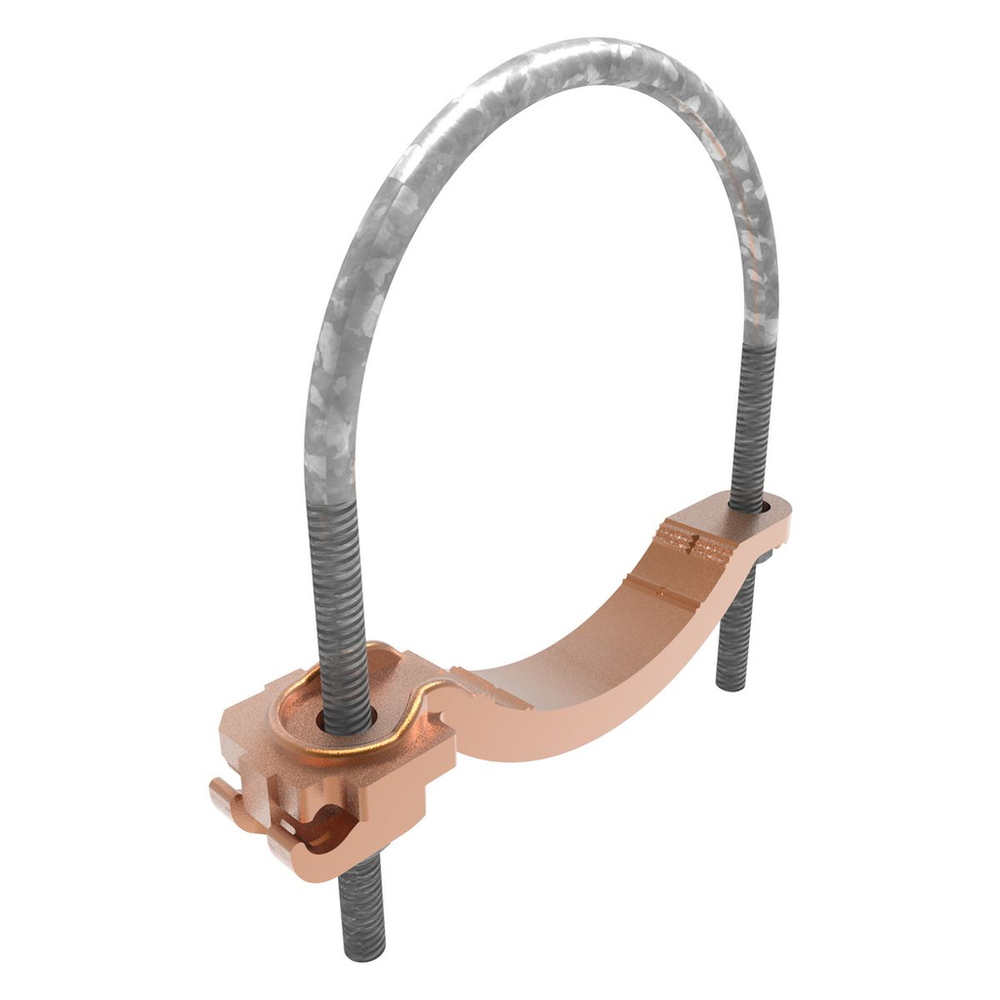

Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 6" Pipe, 3/8" Stud.Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 6" Pipe, 3/8" Stud
Burndy GAR3906 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810234051
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810234052
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size Range
- 4 AWG - 4/0 AWG
- Conductor - Copper Str Size
- 4;3;2;1;1/0;2/0;3/0;4/0
- Conductor - Copper Str Size Range
- 4 AWG - 4/0 AWG
- Conductor - Copper Tube Std Size
- 6
- Conductor - Copper Tube Std Size Range
- 6
- Conductor - Pipe or Round Tube Size
- 6 in
- Country of Origin
- MX
- Description - Invoice
- 4-4/0, 6 IPS
- Dimension - B Length inch
- 1.75 in
- Dimension - Height inch
- 8.50 in
- Dimension - Length Overall inch
- 1.75 in
- Dimension - Outside Diameter inch
- 6.62 in
- Dimension - Width inch
- 8.62 in
- Dimension - Width mm
- 219 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.75 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 200 lb-in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material - Hardware
- Galvanized Steel
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10.5 lb.
- Package - GTIN - Package
- 30781810234052
- Package Height
- 6 in
- Package Length
- 14.25 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810234051
- Package - Total Units
- 6 EA
- Package Weight
- 10.5 lb.
- Package Width
- 8 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High-Conductivity Copper Ground Connector For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Cable Clamp Swivels At 90 DEG, Permits Parallel Grounding Of One Pipe Or A 90 DEG Cable Run For Grounding Several Parallel Pipes, One-Wrench Installation, Simplified Installation, Long Lasting Corrosion Resistance And Acceptable For Direct Burial In Earth Or Concrete, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Tube (ips) Size: 6 IN, Ground Rod Size: 6 IN, Height: 8.5 IN, Installation Torque: 240 IN-LB, Width: 8.62 IN
- Standard
- UL467
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BDBF
- Type
- GAR3902
- U Bolt Type
- 1027G
- UL Listed
- Yes
- Width
- 1.75 in
