Burndy GAR214C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

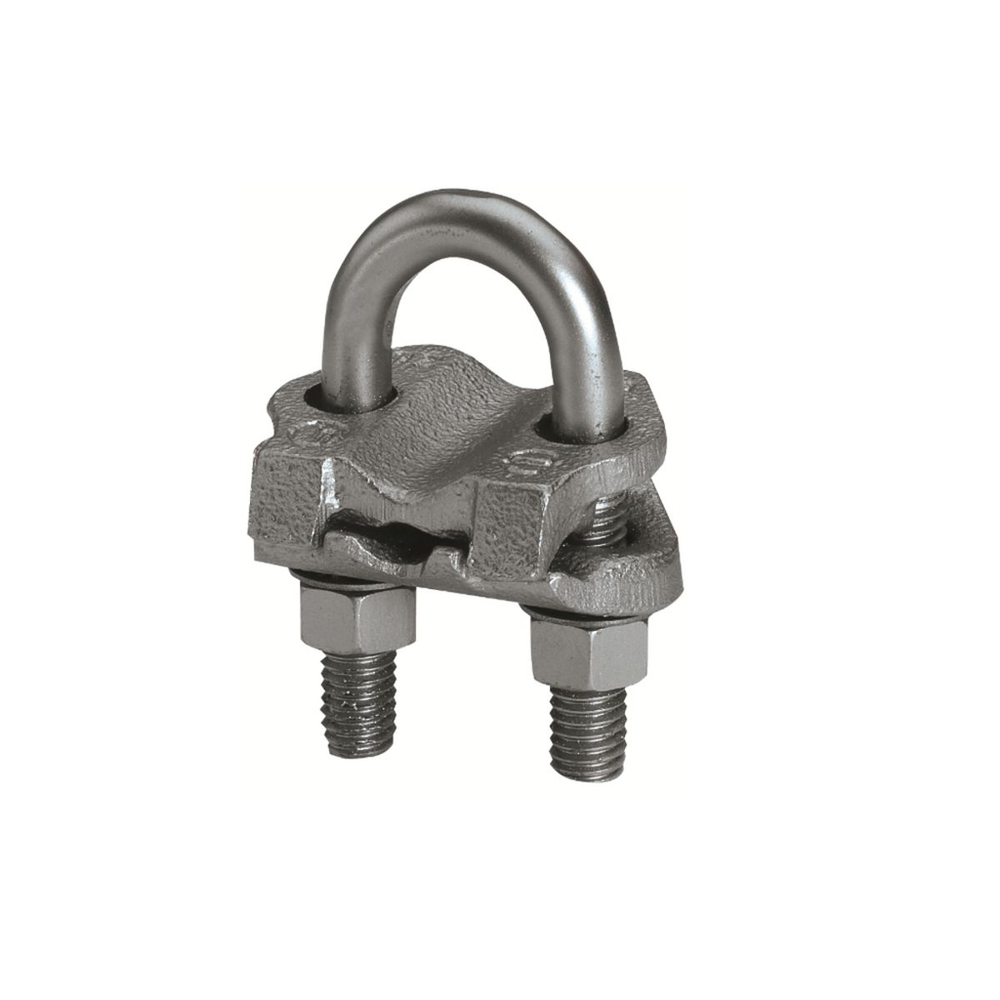

Mechanical Grounding Connector, Cable to Rod or Pipe, 8 AWG -4 AWG, 3-1/2" Pipe, 3-1/2"-4" Rod, Bright Dipped.Mechanical Grounding Connector, Cable to Rod or Pipe, 8 AWG -4 AWG, 3-1/2" Pipe, 3-1/2"-4" Rod, Bright Dipped
Burndy GAR214C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810237151
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810237152
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG
- Conductor - Copper Solid Size Range
- 8 AWG-4 AWG
- Conductor - Copper Str Size
- 9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Str Size Range
- 9 AWG - 4 AWG
- Conductor - Copper Tube Std Size
- 3 1/2 IPS IPS
- Conductor - Copper Tube Std Size Range
- 3 1/2 IPS IPS
- Conductor - Pipe or Round Tube Size
- 3 1/2 in
- Conductor - Rod Size
- 3.5 - 4.0 in
- Conductor Type
- CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size
- Country of Origin
- US
- Dimension - B Length inch
- 4.00 in
- Dimension - Height fraction
- 6-1/4 in
- Dimension - Height inch
- 6.25 in
- Dimension - Length Overall inch
- 1.31 in
- Dimension - L Length Overall mm
- 33 mm
- Dimension - Outside Diameter inch
- 4.00 in
- Dimension - Width fraction
- 5-3/8 in
- Dimension - Width inch
- 5.31 in
- Dimension - Width mm
- 135 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 240 LBS/in
- Lead Time
- 12 wk
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- Package - GTIN - Package
- 30781810237152
- Package Quantity
- 20 EA
- Package - Total Units
- 20 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Bright Dipped
- Product Type
- Mechanical
- Standard Package Quantity
- 20
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B41BD1F
- U Bolt Type
- 264
- UL Listed
- Yes
