Description

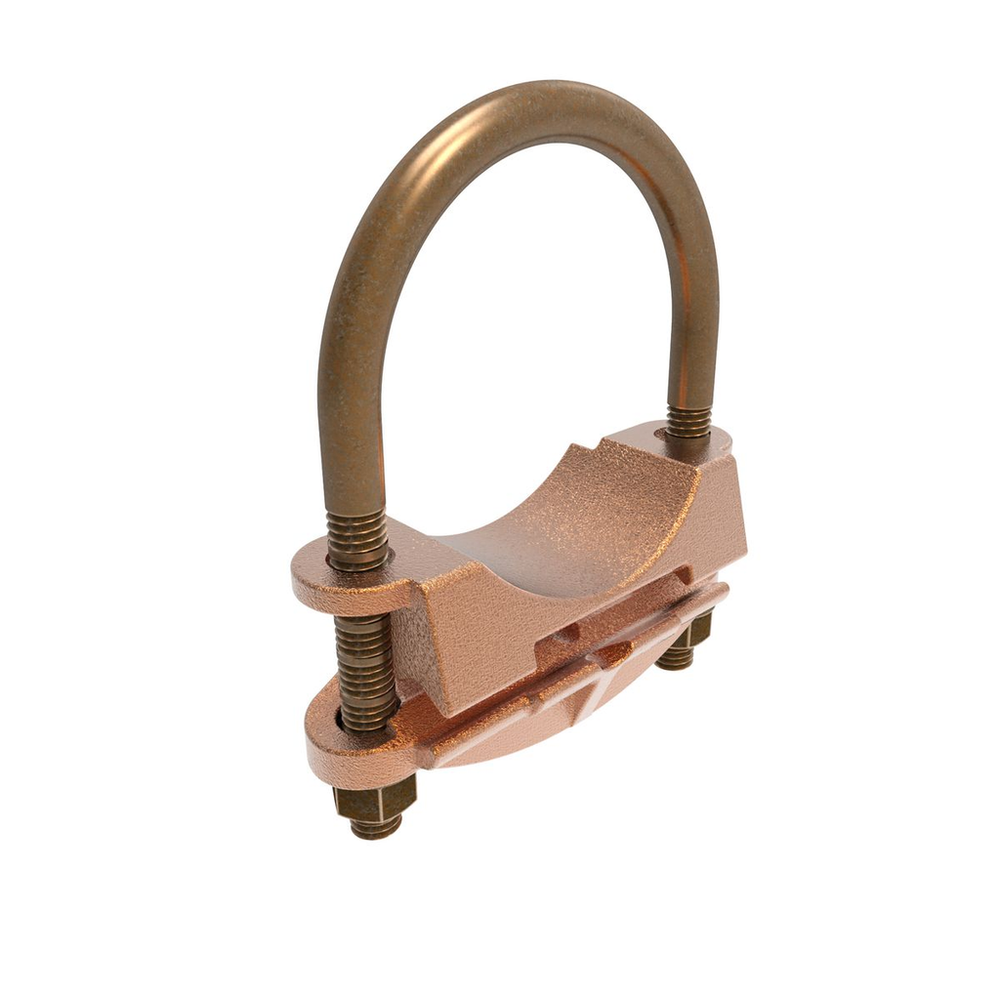

Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 1-1/2" Pipe, 1-5/8"-1-7/8" Rod, Bright Dipped.Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 1-1/2" Pipe, 1-5/8"-1-7/8" Rod, Bright Dipped
Burndy GAR1729 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810234402
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810234403
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 2/0 AWG
- Conductor - Copper Solid Size Range
- 2/0 AWG-4/0 AWG
- Conductor - Copper Str Size
- 250 Kcmil
- Conductor - Copper Str Size Range
- 1/0 AWG - 250 kcmil
- Conductor - Copper Tube Std Size
- 1 1/2 IPS IPS
- Conductor - Copper Tube Std Size Range
- 1 1/2 IPS IPS
- Conductor - Pipe or Round Tube Size Range
- 1-1/2 in
- Conductor - Rod Size
- 1.620-1.90 in
- Conductor - Rod Size Range
- 1 5/8 in-1 7/8 in
- Conductor Type
- CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size
- Country of Origin
- US
- Description - Invoice
- 2/0-250CU 1 1/2IPS
- Dimension - B Length inch
- 2.31 in
- Dimension - Height fraction
- 4 in
- Dimension - Height inch
- 4.00 in
- Dimension - Length Overall inch
- 1.81 in
- Dimension - L Length Overall mm
- 46 mm
- Dimension - Outside Diameter inch
- 1.90 in
- Dimension - Width fraction
- 3-1/4 in
- Dimension - Width inch
- 3.25 in
- Dimension - Width mm
- 83 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.25 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 240 LBS/in
- Installation Torque Recommended Run in-lb
- 240 Lb in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Copper
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 30.75 lb.
- Package - GTIN - Package
- 30781810234403
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810234402
- Package - Total Units
- 25 EA
- Package Weight
- 30.75 lb.
- Package Width
- 7.44 in
- Plated
- N
- Plating Type
- Bright Dipped
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Ground Rod Size: 1-5/8 - 1-7/8 IN, Tube (ips) Size: 1-1/2 IN, Height: 4 IN, Installation Torque: 240 IN-LB, Width: 3-1/4 IN
- Standard
- UL467
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD1F
- Type
- GAR
- U Bolt Type
- 268
- UL Listed
- Yes
- Width
- 3.25 in
