Burndy GAR114C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

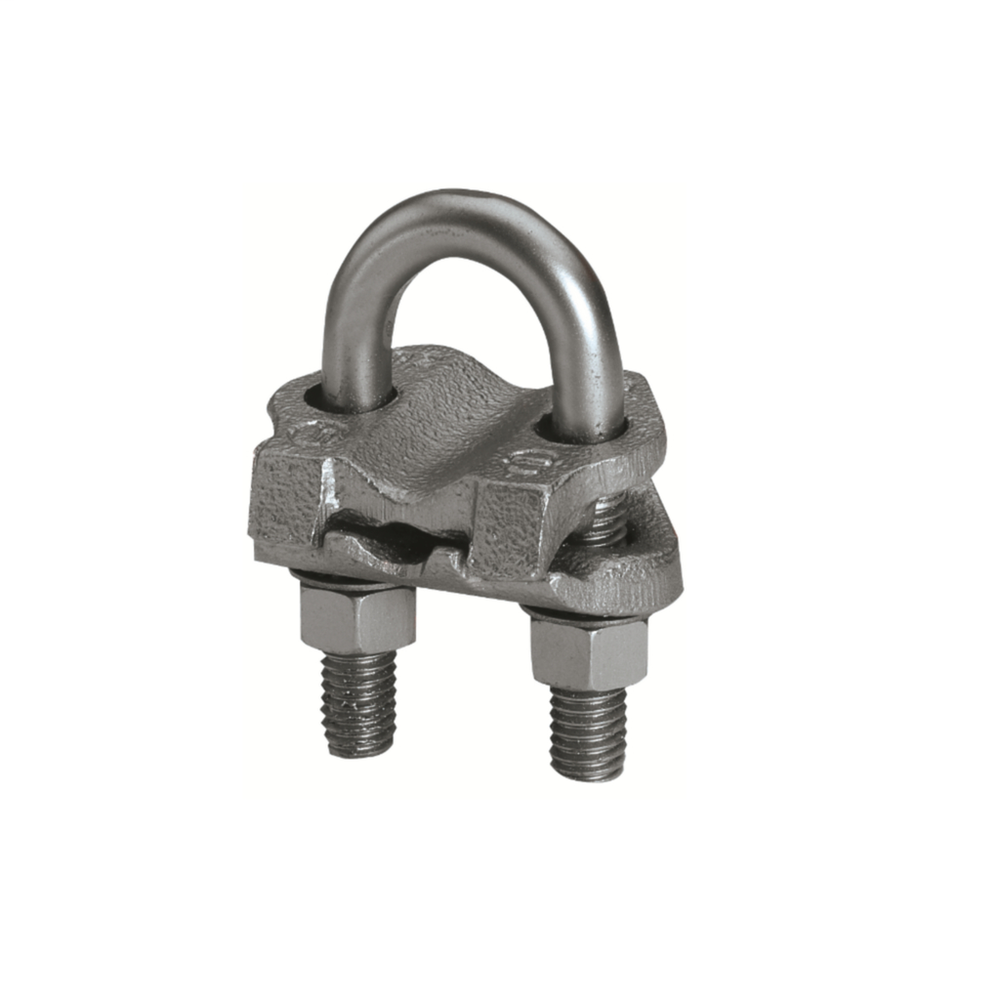

Ground Clamp-Cable to Rebar, 8 Sol. - 4 Str., Bright Dipped.Cable to Rod or Tube GAR114C
Burndy GAR114C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Solid Size
- 8 AWG
- Conductor - Copper Solid Size Range
- 8 AWG-3 AWG
- Conductor - Copper Str Size
- 4 AWG
- Conductor - Copper Str Size Range
- 9 AWG-4 AWG
- Conductor - Copper Tube Std Size
- 1/4 IPS IPS
- Conductor - Copper Tube Std Size Range
- 1/4 IPS IPS
- Conductor - Pipe or Round Tube Size Range
- 1/4 in
- Conductor - Rod Size
- .5 in
- Conductor - Rod Size Range
- 1/2 in
Dimensions
- Dimension - B Length inch
- 1.50 in
- Dimension - Height fraction
- 2-1/2 in
- Dimension - Height inch
- 2.50 in
- Dimension - Length Overall inch
- 1.31 in
- Dimension - L Length Overall mm
- 33 mm
- Dimension - Outside Diameter inch
- 0.54 in
- Dimension - Width fraction
- 1-7/8 in
- Dimension - Width inch
- 1.88 in
- Dimension - Width mm
- 48 mm
General
- Application
- For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
- Installation Torque Recommended in-lb
- 240 LBS/in
- Installation Torque Recommended Run in-lb
- 240 Lb in
- Material
- Copper
- Material - Hardware
- DURIUM™ Silicon Bronze
- Plated
- N
- Plating Type
- Bright Dipped
- Sub Brand
- MECHANICAL CONNECTOR
- Type
- GAR
- U Bolt Type
- 271
- UPC
- 781810231005
- UPC 12 Digit
- 7818102310055
Logistics
- Minimum Pack Quantity
- 1
