Burndy GA25H26
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

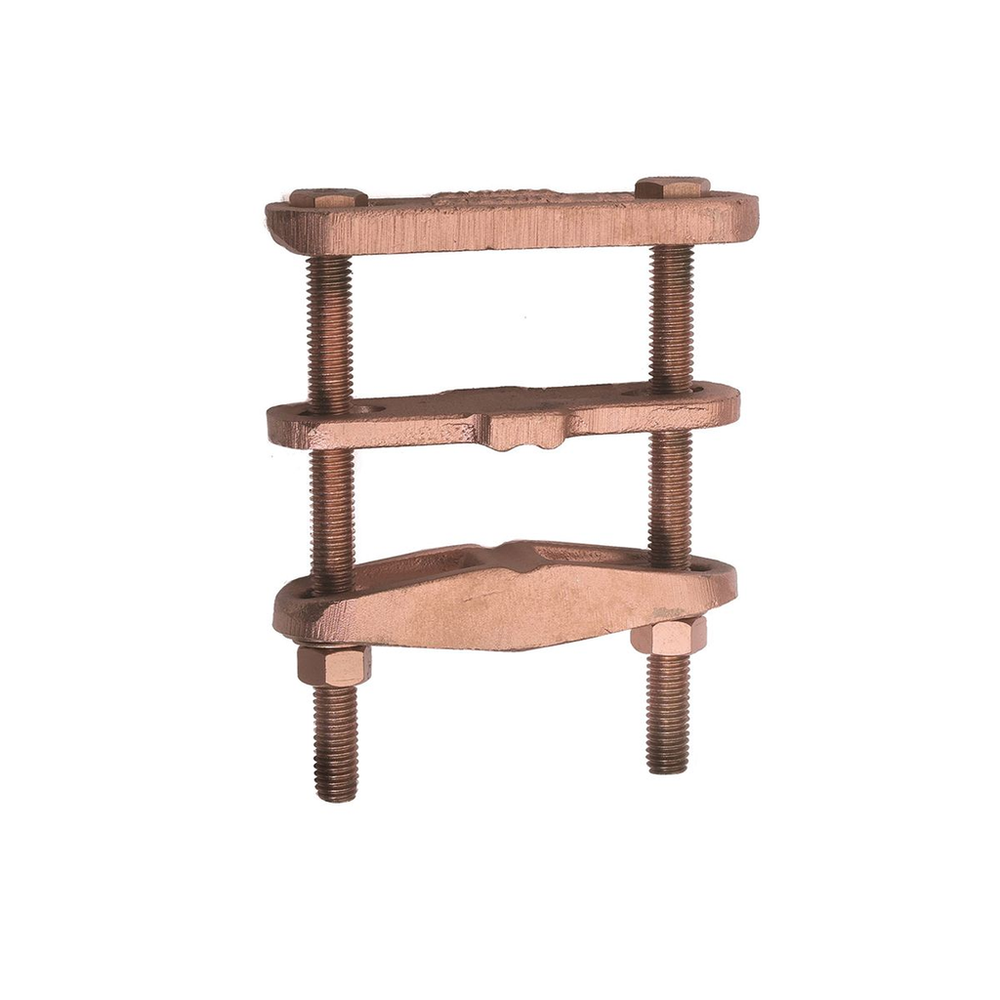

Mechanical Ground Connector for Copper Cable to "H" Beam; Accommodates: "H" Beam 1-7/8" - 2-1/2" x 2-1/2"; #4 Solid - 2/0 Stranded CopperMechanical Ground Connector for Copper Cable to "H" Beam
Burndy GA25H26 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining A Wide Range Of Copper Cable Parallel To H Beams Or Square Tube
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810001677
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810001678
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 4 AWG
- Conductor - Copper Solid Size Range
- 4 AWG
- Conductor - Copper Str Size
- 2/0 AWG
- Conductor - Copper Str Size Range
- 2/0 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Country of Origin
- MX
- Description - Invoice
- GROUND CLAMP FOR H BEAM
- Dimension - Height fraction
- 4-3/4 in
- Dimension - Height inch
- 4.75 in
- Dimension - Width inch
- 4.00 in
- Dimension - Width mm
- 102 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 4 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Installation Torque Recommended Run in-lb
- 240 Lb in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 6 EA
- Package - Gross Weight per Pack
- 9.24 lb.
- Package - GTIN - Package
- 30781810001678
- Package Height
- 7.06 in
- Package Length
- 4.5 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810001677
- Package - Total Units
- 6 EA
- Package Weight
- 9.24 lb.
- Package Width
- 6.13 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy Ground Connector For Joining A Wide Range Of Cable Parallel To H Beams Or Square Tube, Hardware Is Made From DURIUM For Superior Corrosion Protection, Width: 4 IN, Installation Torque: 240 IN-LB, Outer Dimension Of H Beam Or Tube: 1-7/8 X 1-7/8 IN Minimum, 2-1/2 X 2-1/2 IN Maximum, Height: 4-3/4 IN
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD6F
- Type
- GA-H
- UL Listed
- No
- Width
- 4 in
