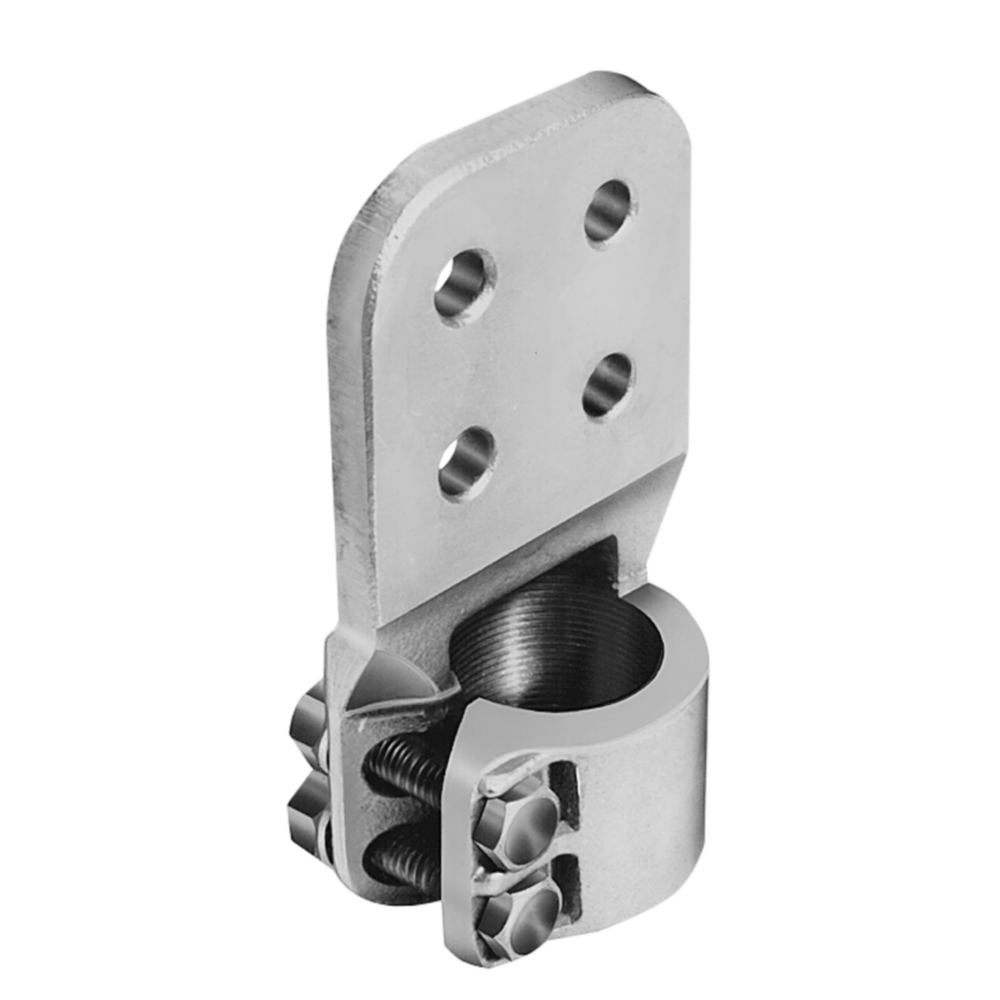

Burndy FD70D12
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Cu Alloy Substaion Stud Connector, Bolted, Stud to Pad, 3" -12 Stud, 230 kV, Silicon Bronze H/W, 2100 Amp.FD70D12
Burndy FD70D12 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
- UL Listed
- No
Conductor Related
- Conductor - Connection Combination
- Stud to Pad
Dimensions
- Dimension - B Length fraction
- 2-22/25 in
- Dimension - B Length inch
- 2.88 in
- Dimension - Bolt Size fraction
- 5/8
- Dimension - D inch
- 4.00 in
- Dimension - Length Overall inch
- 8.26 in
- Dimension - L Length Overall mm
- 210 mm
- Dimension - N inch
- 1.12 in
- Dimension - Pad Width inch
- 4.00 in
- Dimension - Pin Diameter fraction
- 3 in
- Dimension - Pin Diameter inch
- 3.000 in
- Dimension - Thread Size
- 5/8-12
- Dimension - Threads per inch
- 12
Electrical Ratings
- Amperage Rating
- 2100 A
- Rating - KVA
- 230 kV
General
- Application
- Substation
- Connector Type
- Stud Connector
- Item Type
- 4D
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- Physical Attribute - Pad Configuration
- 4x4 - 4 holes
- Plated
- N
- Plating Type
- Unplated
- Sub Brand
- STUD CONNECTOR
- Type
- Studs
- UPC
- 781810003244
- UPC 12 Digit
- 7818100032444
