Burndy FD69D8
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

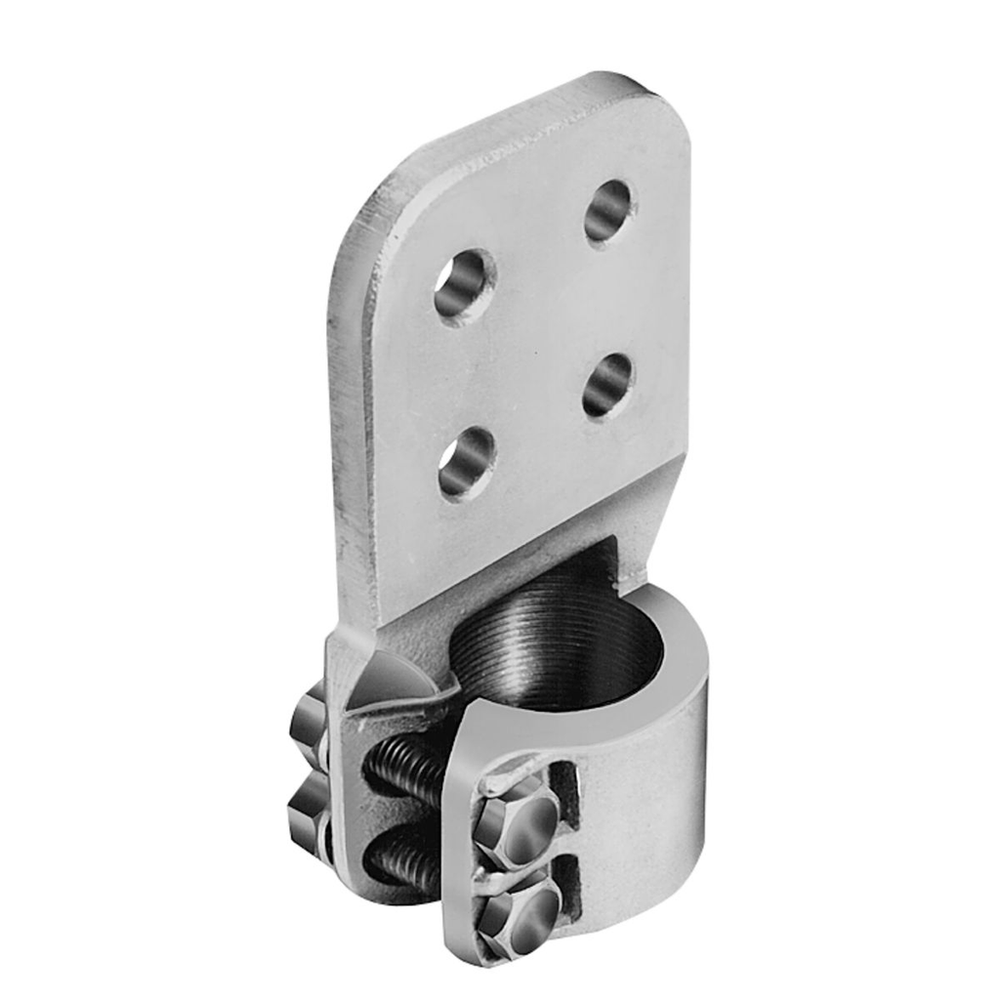

Stud connector, 4 Holes, 1450 AMP Nominal, 2 1/2"-12 Stud, 9/16"pad holes, 8.03"length, 4"width, Stud to Flat Bar.Stud connector, 4 Holes, 1450 AMP Nominal, 2 1/2"-12 Stud, 9/16"pad holes, 8.03"length, 4"width, Stud to Flat Bar
Burndy FD69D8 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Amperage Rating
- 1450 A
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810003657
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810003658
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Stud to Pad
- Connector Type
- Stud Connector
- Country of Origin
- US
- Dimension - B Length fraction
- 2-1/2 in
- Dimension - B Length inch
- 2.50 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 4.00 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Length Overall inch
- 8.03 in
- Dimension - L Length Overall mm
- 204 mm
- Dimension - N inch
- 1.12 in
- Dimension - Pad Width inch
- 4.00 in
- Dimension - Pin Diameter fraction
- 2-1/2 in
- Dimension - Pin Diameter inch
- 2.500 in
- Dimension - Thread Size
- 1/2-12
- Dimension - Threads per inch
- 12
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- Package - GTIN - Package
- 30781810003658
- Package Quantity
- 3 EA
- Package - Total Units
- 3 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Pad Configuration
- 4x4 - 4 holes
- Physical Attribute - Pad Orientation
- In-line
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 3
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B21B00F
- Type
- Studs
- UL Listed
- No
