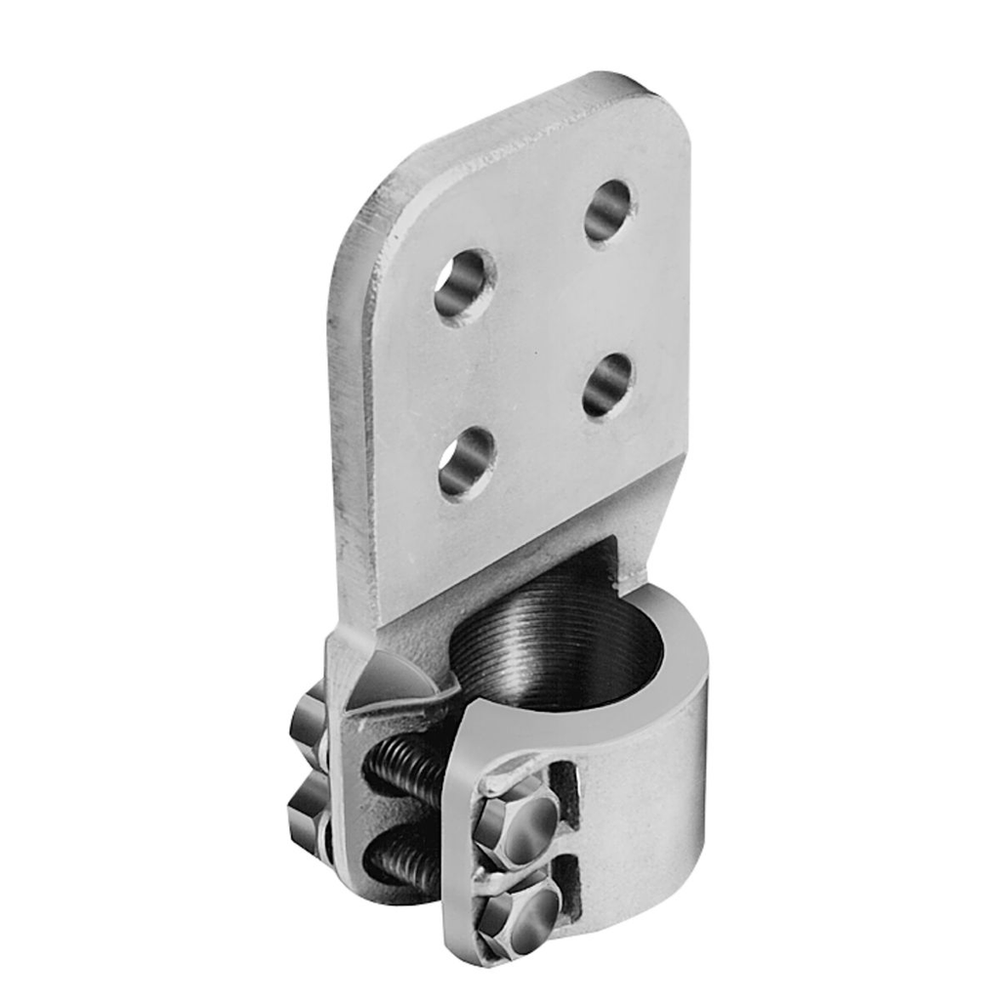

Burndy FD655D6
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Cu Alloy Stud Connector, 1300 Amps Indoor Nom, 0.56" Hole Size, 1.75" Spacing, Bolted, Stud to Flat Bar, 1-1/8"- 12 Stud Dia, 4 NEMA Pad Holes.Cast Cu Alloy Stud Connector, 1300 Amps Indoor Nom, 0.56" Hole Size, 1.75" Spacing, Bolted, Stud to Flat Bar, 1-1/8"- 12 Stud Dia, 4 NEMA Pad Holes
Burndy FD655D6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Amperage Rating
- 1300 A
- Application
- Substation
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810003602
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810003603
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Stud to Pad
- Connector Type
- Stud Connector
- Country of Origin
- US
- Description - Invoice
- STUD CONNECTOR, 6.86 IN L
- Dimension - B Length fraction
- 1-3/4 in
- Dimension - B Length inch
- 1.75 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - D inch
- 4.00 in
- Dimension - Length Overall inch
- 6.86 in
- Dimension - L Length Overall mm
- 174 mm
- Dimension - N inch
- 1.12 in
- Dimension - Pad Width inch
- 4.00 in
- Dimension - Pin Diameter fraction
- 1-1/8 in
- Dimension - Pin Diameter inch
- 1.125 in
- Dimension - Thread Size
- 3/8-12
- Dimension - Threads per inch
- 12
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 4.00 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 12.4 lb.
- Package - GTIN - Package
- 30781810003603
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 4
- Package - Pack Description
- Package
- Package Quantity
- 4 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810003602
- Package - Total Units
- 4 EA
- Package Weight
- 12.4 lb.
- Package Width
- 6.13 in
- Physical Attribute - Pad Configuration
- 4x4 - 4 holes
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy Stud Connector Allows Bolting Cable And Tubing Terminals To Equipment Studs, Hex Head Captured Bolts Provide One-Wrench Installation, One Pad Contact Surface Is On Centerline Of Stud, Pad Is Finished On Both Sides, All Pads Are Four Hole NEMA Drilled, Installation Torque: 240 IN-LB, Pad Configuration: Straight, Stud Size: 1-1/8-12, Stud Clamping Hardware: 3/8-16
- Standard Package Quantity
- 4
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- STUD CONNECTOR
- Sub Class Code
- B21B00F
- Type
- Studs
- UL Listed
- No
- Width
- 4.00 in
