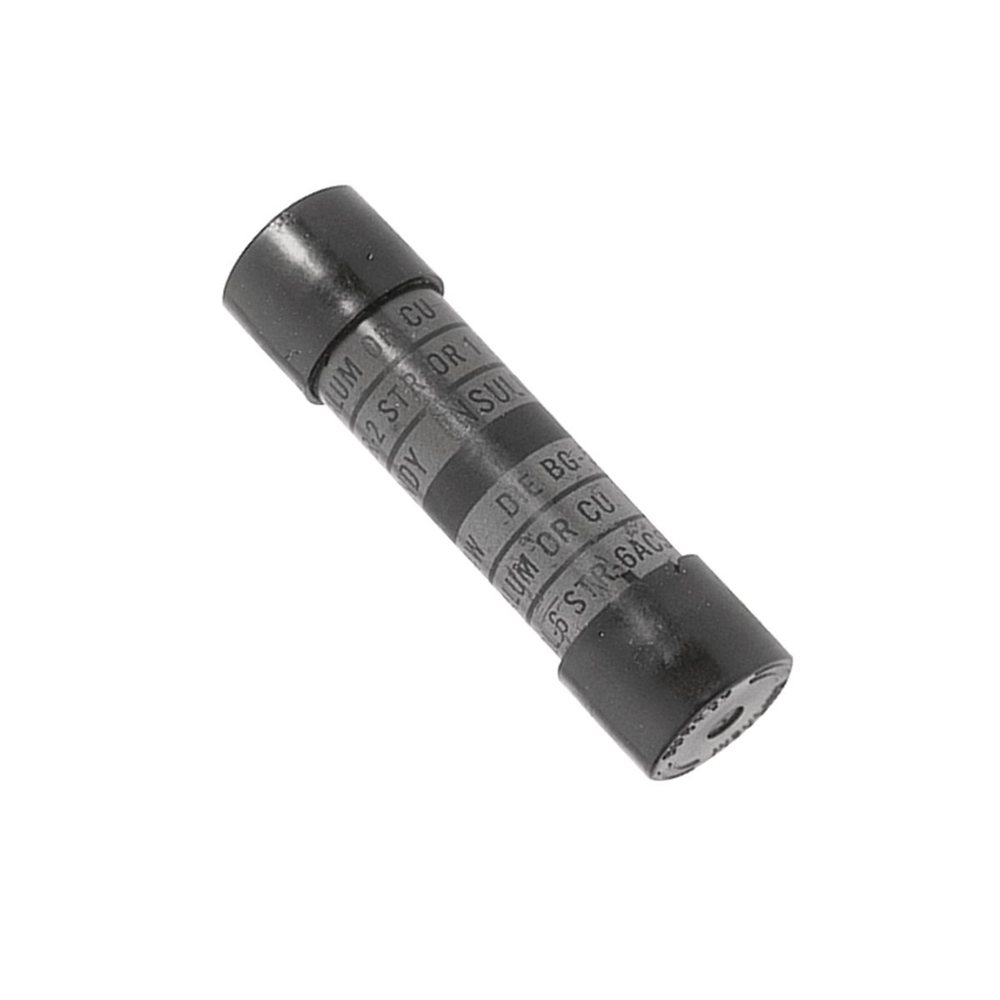

Burndy ES4W8W

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors And In Overhead Distribution
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 4.875x9.313x6.443 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 5.000 lb.
• Carton - Number of Sub Packs
  • 100
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810142806
• Carton - Total Units
  • 100
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810142807
• Certification Agency
  • Proposition 65
• Class Code
  • B30
• Color Code - Side A
  • Blue
• Color Code - Side B
  • Brown
• Conductor - ACSR Str Size A
  • 6 (6/1) Turkey AWG
• Conductor - AL Str Size A
  • 6 AWG;5 AWG
• Conductor - AL Str Size A Range
  • 6 AWG-5 AWG
• Conductor - AL Str Size B
  • 8 AWG
• Conductor - AL Str Size B Range
  • 8 AWG
• Conductor - Copper Solid Size A
  • 4 AWG
• Conductor - Copper Solid Size A Range
  • 4 AWG
• Conductor - Copper Solid Size B
  • 8 SOL
• Conductor - Copper Solid Size B Range
  • 4 AWG
• Conductor - Copper Str Size A
  • 6 AWG;5 AWG
• Conductor - Copper Str Size A Range
  • 6 AWG-5 AWG
• Conductor - Copper Str Size B
  • 10 AWG
• Conductor - Copper Str Size B Range
  • 10 AWG
• Country of Origin
  • US
• Description - Invoice
  • 6 ACSR-10 AL/CU INS SE C
• Die Index
  • BG or 5/8
• Dimension - Length Overall inch
  • 2.75 in
• Dimension - L Length Overall mm
  • 70 mm
• Dimension - Outside Diameter inch
  • .75 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.74 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Insulation
  • Y
• Insulation Type
  • Nylon
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Aluminum
• MSDS Flag
  • No
• Order Multiple
  • 100 EA
• Package - Gross Weight per Pack
  • 5 lb.
• Package - GTIN - Package
  • 30781810142807
• Package Height
  • 4.25 in
• Package Length
  • 9.00 in
• Package - Number of Sub Packs
  • 100
• Package - Pack Description
  • Package
• Package Quantity
  • 100 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810142806
• Package - Total Units
  • 100 EA
• Package Weight
  • 5 lb.
• Package Width
  • 6.13 in
• Pallet - GTIN - Package
  • 70781810142805
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1245.000 lb.
• Pallet Width
  • 40.000 in
• Plated
  • Y
• Plating Type
  • Tin - Hot Dipped
• Prefilled Oxide Inhibitor
  • Y
• Product Type
  • Compression
• Special Features
  • Features: Pre-Insulated Service Entrance Compression Connector Installed With OH25, OUR840 And MD6 HYTOOL As Well As Y35 And Y750 HYPRESS Tools, Polyethylene Caps Prevent Dirt From Accumulating In Barrel, Grip Cable For Easy Two-Hand Installation, And Seal Out Moisture, Aluminum Connector Is Anchored To Jacket, Assuring The Connector Is Under The Die When Crimping, Nylon Jacket Insulates Connector Electrically And Protects Against Water And Weather, Superior Color Coding, Pre-Filled With PENETROX Joint Compound, Tools, Die Set Catalog Number, And (number Of Crimps): HYTOOL: OH25 Tool, (1), MD6, MD7 Tool, (3), MD6, MD7 Tool, W-BG Die, (1), OUR840 Tool, X-NBG Die, (1), HYPRESS: Y35 Tool, U-BG Die, (1), Y750 Tool, Die Index: BG Element A, Color Code: Blue (Side A), Brown (Side B), Conductor Type: Side A: ACSR, Aluminum, Copper, Side B: Aluminum, Copper
• Standard Package Quantity
  • 100
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • INSULINK
• Sub Class Code
  • B30B3WF
• Trade Name
  • INSULINK™
• Type
  • Insulated Service Entrance Connectors
• UL Listed
  • No
• Width
  • 0.74 in
