Description

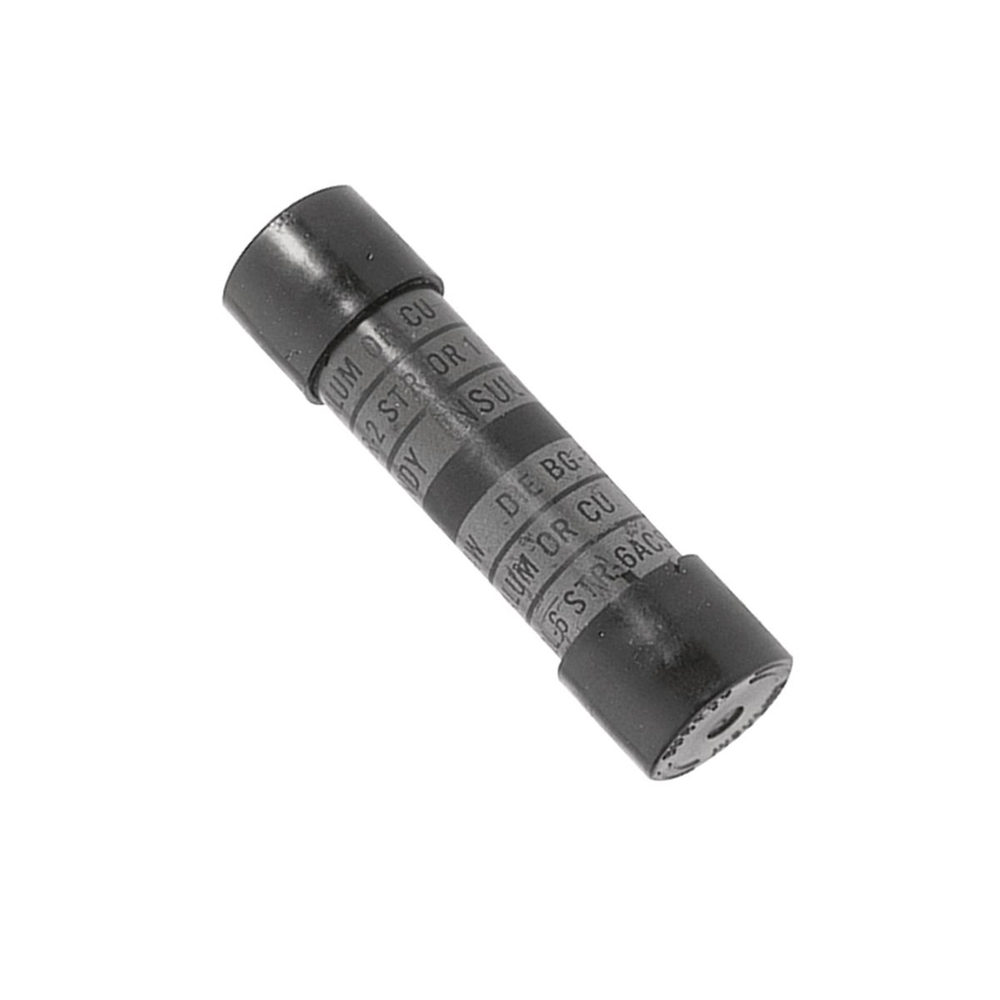

Insulated AL service entrance compression sleeve for combinations of insulated CU, AL and ACSR conductors, Color Code: Orange (Side A), Brown (Side B).Insulated AL service entrance compression sleeve
Burndy ES2W8W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810142301
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810142302
- Certification Agency
- Proposition 65
- Class Code
- B30
- Color
- Brown
- Color Code - Side A
- Orange
- Color Code - Side B
- Brown
- Conductor - ACSR Str Size A
- 4 (6/1) Swan AWG;4 (7/1) Swanate AWG
- Conductor - ACSR Str Size A Range
- 4 (6/1) Swan AWG-4 (7/1) Swanate AWG
- Conductor - AL Str Size A
- 4 AWG;3 AWG
- Conductor - AL Str Size A Range
- 4 AWG-3 AWG
- Conductor - AL Str Size B
- 8 AWG
- Conductor - AL Str Size B Range
- 8 AWG
- Conductor - Copper Solid Size A
- 2 AWG
- Conductor - Copper Solid Size A Range
- 2 AWG
- Conductor - Copper Solid Size B
- 8 AWG
- Conductor - Copper Solid Size B Range
- 8 AWG
- Conductor - Copper Str Size A
- 4 AWG;3 AWG
- Conductor - Copper Str Size A Range
- 4 AWG-3 AWG
- Conductor - Copper Str Size B
- 10 AWG
- Conductor - Copper Str Size B Range
- 10 AWG
- Construction Material - Main
- Aluminum
- Country of Origin
- US
- Description - Invoice
- 4 ACSR-10 AL/CU INS SE C
- Die Index
- BG or 5/8
- Dimension - Length Overall inch
- 2.75 in
- Dimension - L Length Overall mm
- 70 mm
- Dimension - Outside Diameter inch
- .75 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - GTIN - Package
- 30781810142302
- Package Quantity
- 100 EA
- Package - Total Units
- 100 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810142300
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1245.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Hot Dipped
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Aluminum connectorisanchoredtojacket,assuringthe jacket insulates connector electrically and protects against water and weather
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- INSULINK
- Sub Class Code
- B30B3WF
- Trade Name
- INSULINK™
- Type
- Insulated Service Entrance Connectors
- UL Listed
- No
