Description

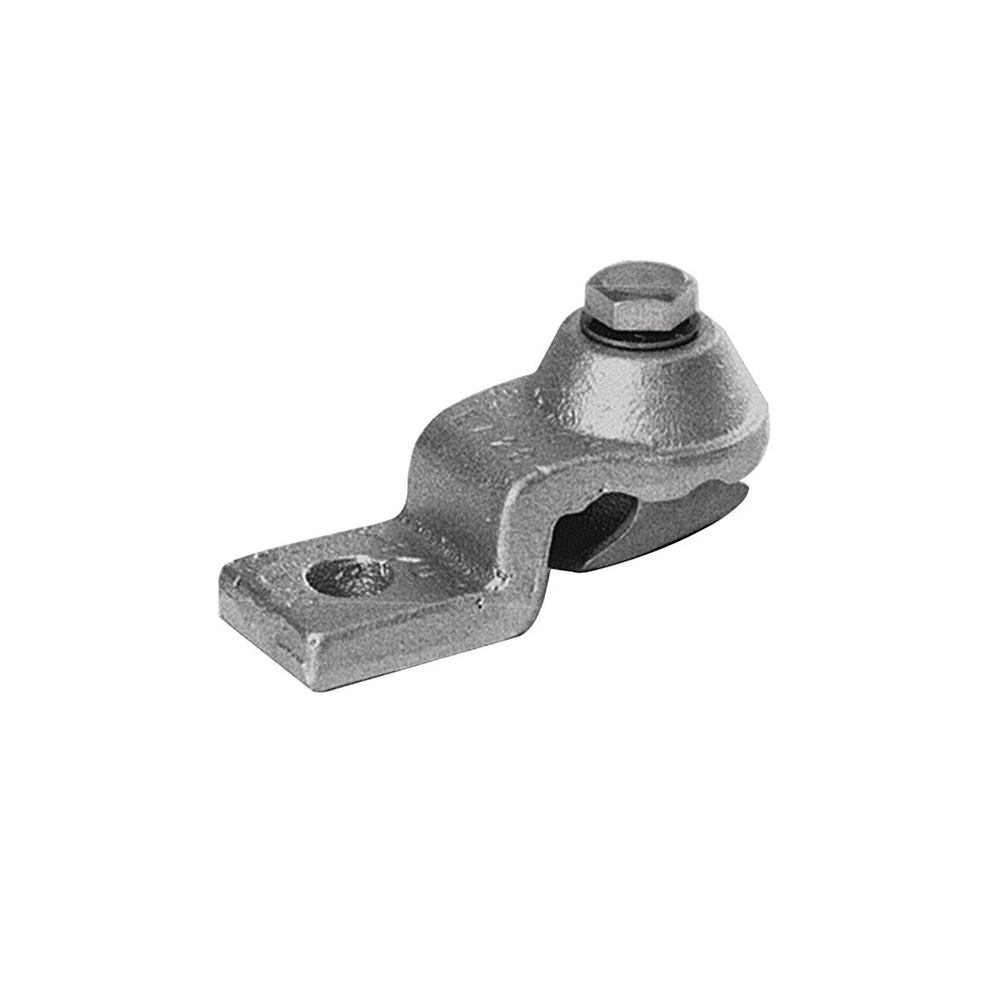

VERSILUG™ for Copper Cable; Adjustable Clamping Element to Allow a Variety of Angles; Accommodates: 1/0 - 4/0 Str; 1-1/16" Width; 3-3/16" LengthVERSILUG™ for Copper Cable; Adjustable Clamping Element to Allow a Variety of Angles
Burndy EA28 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810326305
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810326306
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - Copper Str Size
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Size Range
- 1/0 -4/0 AWG
- Conductor Size
- 1/0-4 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Rotational Clamp
- Country of Origin
- US
- Description - Invoice
- 1/0STR - 4/0 STR CU COND
- Description - Slang
- Mechanical lugs with adjustable angles
- Dimension - B Length fraction
- 1-11/25 in
- Dimension - B Length inch
- 1.44 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Height fraction
- 1-3/4
- Dimension - Height inch
- 1.75 in
- Dimension - Hole Size fraction
- 7/16
- Dimension - Hole Size inch
- 0.44 in
- Dimension - Hole Size mm
- 11 mm
- Dimension - Length Overall inch
- 3.19 in
- Dimension - L Length Overall mm
- 81 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width fraction
- 1-1/16 in
- Dimension - Pad Width inch
- 1.06 in
- Dimension - Stud Size inch
- 3/8
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.06 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 250 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Number of Conductors
- 1
- Number Of Conductors
- 1
- Number of Conductors/Ports (Main/Primary)
- 1
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 4.59 lb.
- Package - GTIN - Package
- 30781810326306
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 9
- Package - Pack Description
- Package
- Package Quantity
- 9 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810326305
- Package - Total Units
- 9 EA
- Package Weight
- 4.59 lb.
- Package Width
- 4.56 in
- Physical Attribute - Number of Clamping Elements
- 1
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Replaced Catalog Number
- EA28
- Special Features
- Features: Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Clamping Element Adjustable To Several Angles, One-Wrench Installation, Dimension K: 7/16 IN, Dimension T: 5/16 IN, Dimension N: 17/32 IN, Dimension D: 1-3/8 IN, Installation Torque: 250 IN-LB, Tongue Width: 1-1/16 IN, Height: 1-3/4 IN, Length: 3-3/16 IN, Stud Size: 3/8 IN
- Standard
- UL 486A-486B
- Standard Package Quantity
- 9
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- VERSILUG
- Sub Class Code
- B51BG5F
- Temperature Rating
- 194
- Trade Name
- VERSILUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Width
- 1.06 in
