Burndy DUW44A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

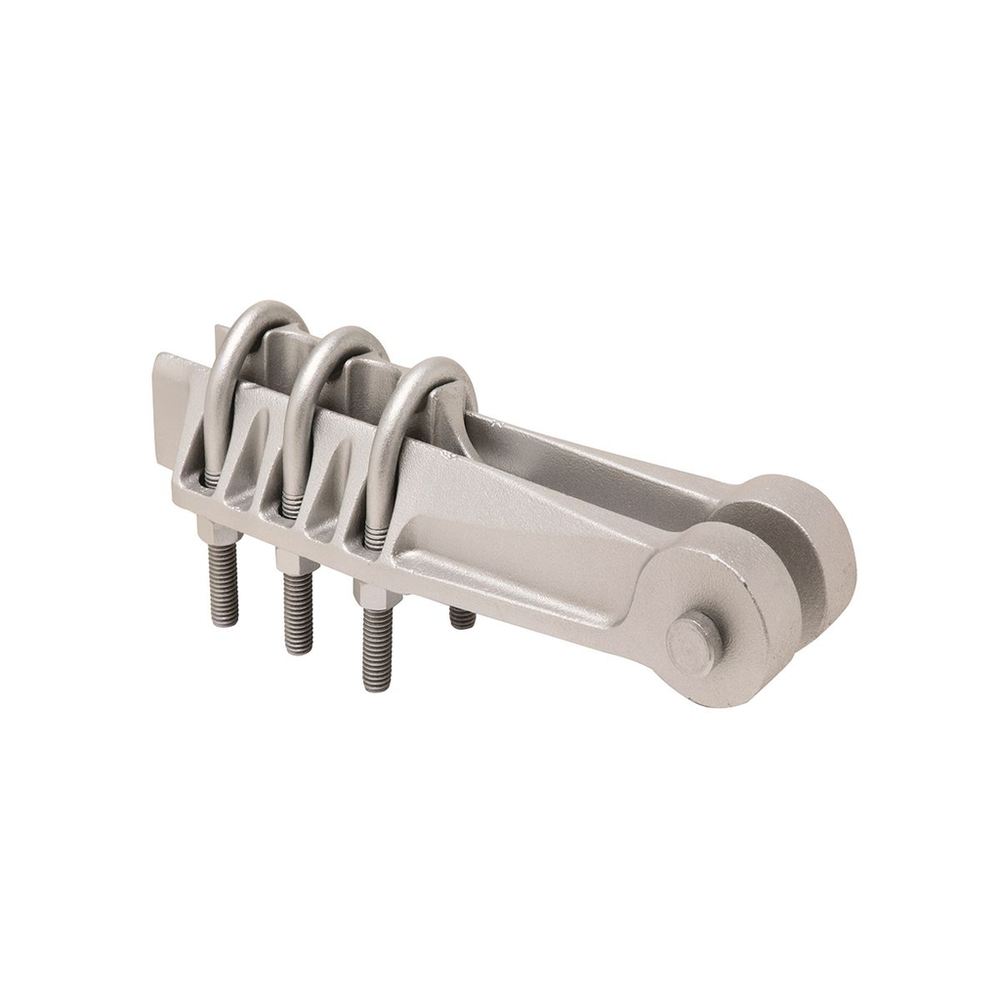

Al Alloy Deadend Strain Clamp, Without Pulling Eye, 500 - 1000 kcmil Al, 397.5 - 900 kcmil ACSR.Al Alloy Deadend Strain Clamp, Without Pulling Eye, 500 - 1000 kcmil Al, 397.5 - 900 kcmil ACSR
Burndy DUW44A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013359
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013350
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - AAAC 5005 Size
- 465.4 (19) kcmil;559.5 (19) kcmil;652.4 (19) kcmil;740.8 (37) kcmil;927.2 (37) kcmil
- Conductor - AAAC 5005 Size Range
- 465.4 (19) kcmil-927.2 (37) kcmil
- Conductor - AAAC 6201 Size
- 465.4 (19) kcmil;559.5 (19) kcmil;652.4 (19) kcmil;740.8 (37) kcmil;927.2 (37) kcmil
- Conductor - AAAC 6201 Size Range
- 465.4 (19) kcmil-927.2 (37) kcmil
- Conductor - ACSR Str Size
- 397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil;477.0 (24/7) Flicker kcmil;477.0 (26/7) Hawk kcmil;477. (30/7) Hen kcmil;500.0 (30/7) Heron kcmil;556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil
- Conductor - ACSR Str Size Range
- 397.5 (30/7) Larkspur kcmil-900 (54/7) Canary kcmil
- Conductor - AL Str Size
- 500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
- Conductor - AL Str Size Range
- 500 kcmil-1000 kcmil
- Connector Type
- Deadend
- Country of Origin
- US
- Dimension - B Length fraction
- 6-4/21 in
- Dimension - B Length inch
- 6.19 in
- Dimension - Height fraction
- 3-3/8
- Dimension - Height inch
- 4.61 in
- Dimension - Hole Size fraction
- 1-1/4
- Dimension - Hole Size inch
- 1.25 in
- Dimension - Hole Size mm
- 32 mm
- Dimension - Length Overall inch
- 12.38 in
- Dimension - L Length Overall mm
- 314 mm
- Dimension - Width fraction
- 3-5/8 in
- Dimension - Width inch
- 3.56 in
- Dimension - Width mm
- 90 mm
- Dimension - Z inch
- 2.94 in
- Freight Class Code
- 16027000
- Harmonization Code
- 7616995190
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Aluminum Alloy
- Material - Hardware
- Galvanized Steel
- Package - GTIN - Package
- 30781810013350
- Package Quantity
- 3 EA
- Package - Total Units
- 3 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- N
- Product Type
- Mechanical
- Standard Package Quantity
- 3
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B31B5CF
- UL Listed
- No
