Burndy CL501TN
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

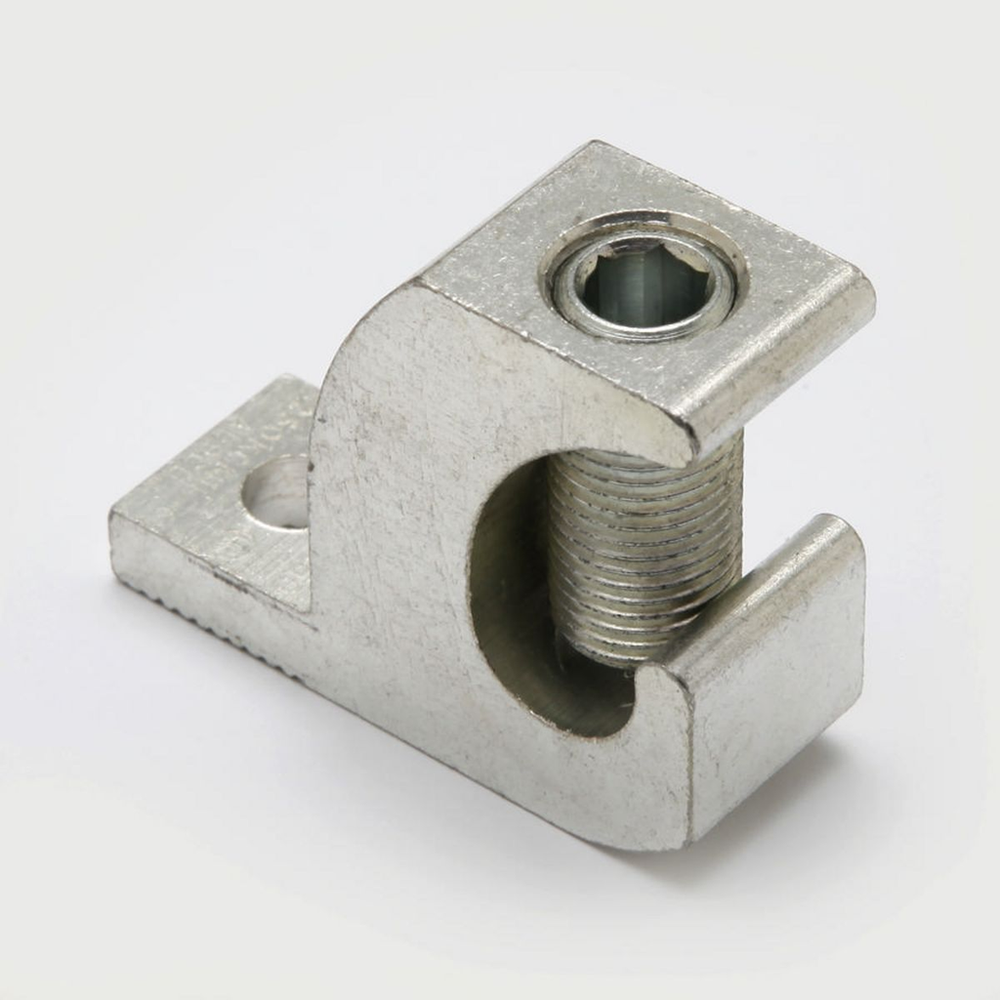

Copper Lay-in Lug, 14-4 AWG, #10 Stud, Tin Plated.Copper Lay-in Lug, 14-4 AWG, #10 Stud, Tin Plated
Burndy CL501TN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, For Solar Panel Grounding
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 700
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810352342
- Carton - Total Units
- 700 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810352343
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Solid Size Range
- 14 AWG-4 AWG
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Str Size Range
- 14 AWG - 4 AWG
- Conductor Type
- CU C Str-Size
- Country of Origin
- CA
- Description - Invoice
- DIRECT BURIAL LUG, 4-14 CU
- Dimension - D inch
- 0.47 in
- Dimension - Height inch
- 0.85 in
- Dimension - Hole Size inch
- 0.22 in
- Dimension - Hole Size mm
- 6 mm
- Dimension - Length Overall inch
- 1.13 in
- Dimension - L Length Overall mm
- 29 mm
- Dimension - N inch
- 0.19 in
- Dimension - Stud Size inch
- 17/64
- Dimension - Thread Size
- -
- Dimension - Width inch
- 0.38 in
- Dimension - Width mm
- 10 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.78 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Copper
- Material - Hardware
- Stainless Steel
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - Gross Weight per Pack
- 6 lb.
- Package - GTIN - Package
- 30781810352343
- Package Height
- 4.5 in
- Package Length
- 14.5 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810352342
- Package - Total Units
- 100 EA
- Package Weight
- 6 lb.
- Package Width
- 6.75 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- Mechanical
- Special Features
- Features: The Lay-In QIKLUG Is Manufactured From High Strength Pure Electrolytic Copper To Ensure Maximum Strength And Conductivity, UL467 Listed For Direct Burial In Earth Or Concrete, The Open-Faced Design Allows For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, TN Version Is Tin Plated, Commonly Used For Solar Panel Grounding, Stud/bolt Size: #10, Stud/bolt Hole Size: 0.22 IN, Installation Torque: Yes, Set Screw Type: Slot, Length: 1.13 IN, Height: 0.85 IN, Tongue Width : 0.38 IN
- Standard
- UL467
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- QIKLUG
- Sub Class Code
- B41BD7F
- Trade Name
- QIKLUG
- Type
- Open-Faced
- UL Listed
- Yes
- Width
- 0.78 in
