Burndy CFBGFR
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

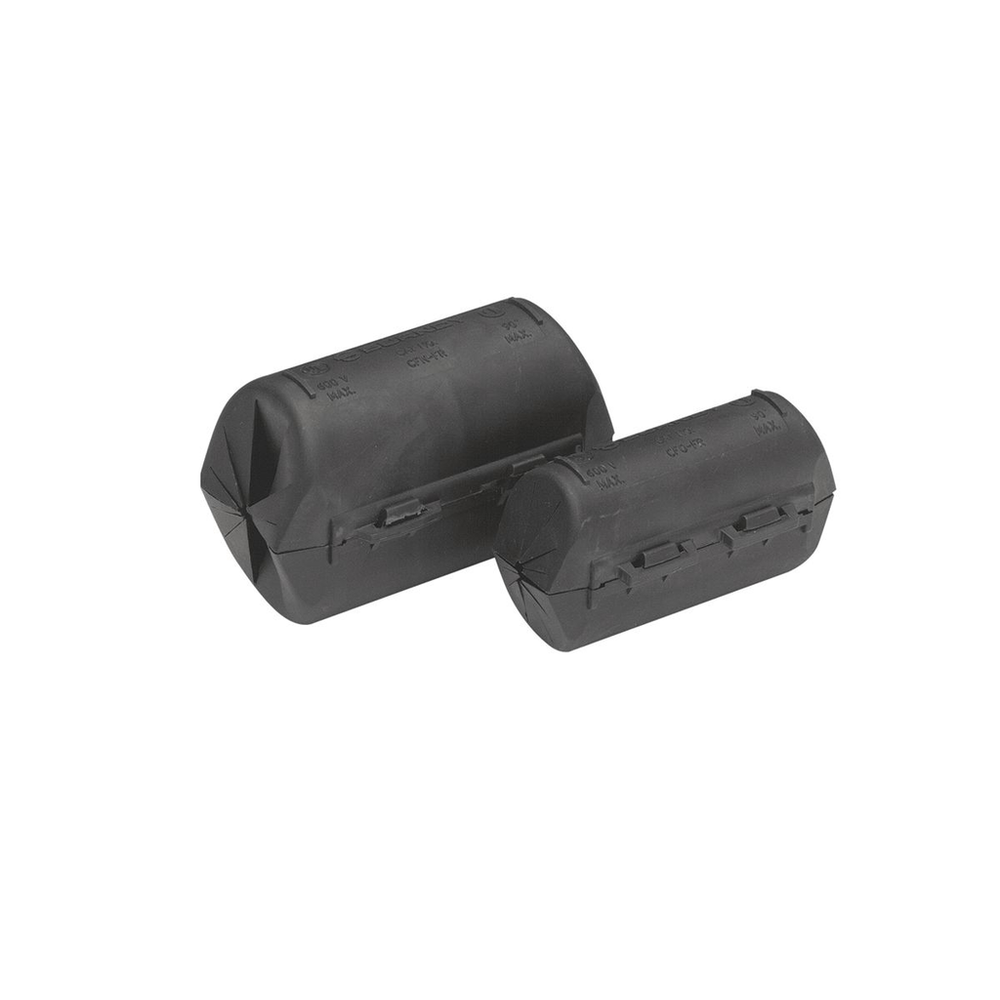

H-Tap CRIMPIT™ Cover; Flame Retardant.Black Cover, Flame retardant cover for YH8C8C or YH6C6C, #8-#6 AWG H-Tap
Burndy CFBGFR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Cover
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 6.750x9.688x7.753 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810068830
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810068831
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color
- Black
- Color Code
- Green
- Conductor - AL Str Size
- 8 AWG-6 AWG
- Conductor - Copper Str Compact Size
- 8 AWG-6 AWG
- Conductor - Copper Str Size
- 8 AWG-6 AWG
- Conductor - Copper Str Size Range
- #8 AWG-#6 AWG
- Conductor - Material
- COPPER
- Conductor - Max Length
- 0.65 in
- Conductor Type
- CODE/FLEX
- Connector Type
- H-TAP COVERS BLACK
- Country of Origin
- US
- Description - Invoice
- H-CRIMPIT COVER FLAME/RT
- Description - Slang
- Connector Covers
- Dimension - Height inch
- 1.16 in
- Dimension - Length Overall inch
- 1.75 in
- Dimension - L Length Overall mm
- 44 mm
- Dimension - Width inch
- 1.24 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.24 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8547200000
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- POLYCARBONATE
- MSDS Flag
- No
- Operating Temperature
- 90 °C
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810068831
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810068830
- Package - Total Units
- 100 EA
- Package Weight
- 3 lb.
- Package Width
- 7.44 in
- Pallet - GTIN - Package
- 70781810068839
- Pallet Height
- 46.250 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 477.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Special Features
- Features: One-Piece Design: No Extra Parts Or Hardware Required, Slips Over Connector And Latches Securely Shut: Fast, Easy, Reliable Insulation Of H-Tap Compression, Eliminates Tapping: Economical, Fast, Easy Installation, Flash Barriers: Protects Against Electrical Flashover, CF-FR Flame Retardant Design: Self-Extinguishing Retardant Properties, Minimum 28 Oxygen Index: Self-Extinguishing Retardant Properties, UL 94 V-O Rated: Self-Extinguishing Retardant Properties, H Tap Catalog Number: YH8C8C, YH6C6C, Color Code: Green, Orange Connector
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B55BIEF
- Temperature Rating
- 194
- Thickness
- 0.08 in
- Trade Name
- CRIMPIT™
- Type
- CF-FR, Flame Retardant
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 600 V
- Width
- 1.24 in
- Wire Size
- 8 AWG-6 AWG
