Description

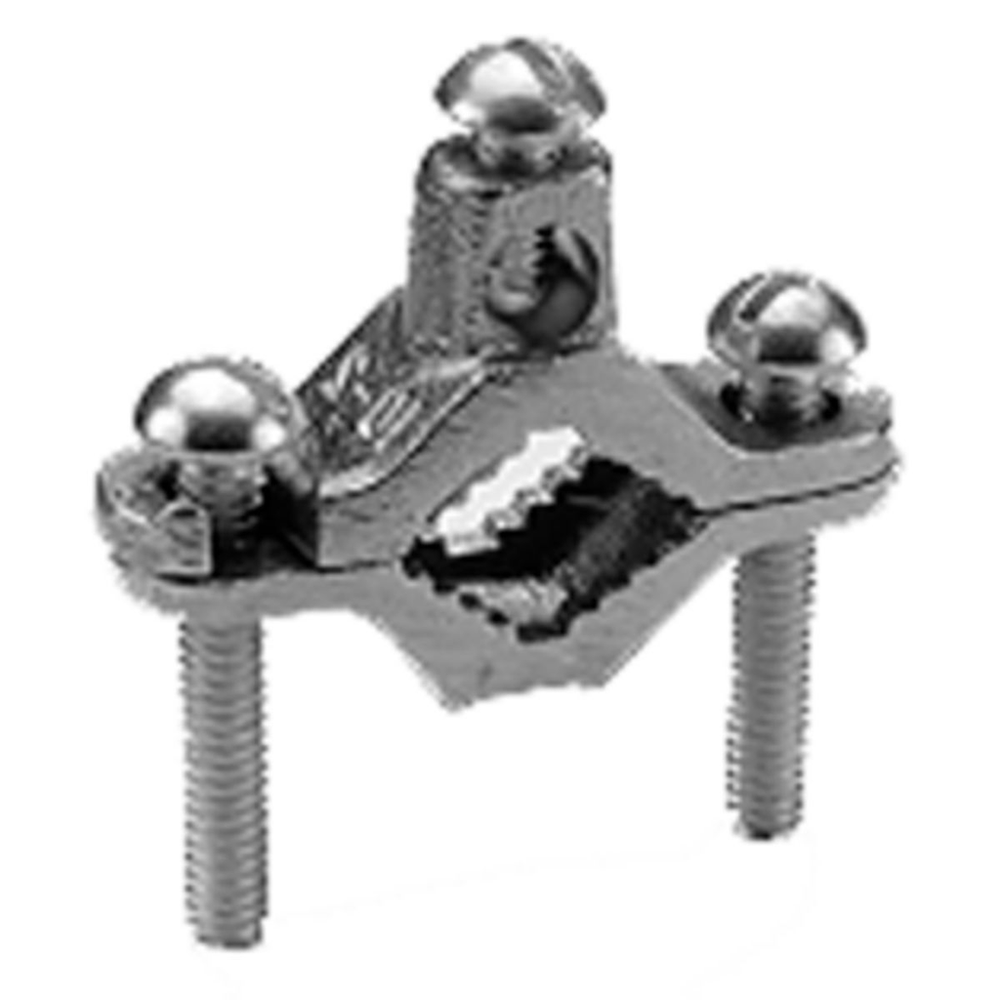

Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 4-1/2" - 6" Water Pipe.Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 4-1/2" - 6" Water Pipe
Burndy C8 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Bare Wire, Connecting Grounding Conductor To Water Pipe Or Copper Tube
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810142332
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810142333
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Armored Cable Size
- N
- Conductor - Copper Solid Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Size Range
- 10 AWG-2 AWG
- Conductor - Copper Str Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Size Range
- 10 AWG - 2 AWG
- Conductor - Pipe EMT Size
- 4 in
- Conductor - Pipe EMT Size Range
- 4 in
- Country of Origin
- IN
- Description - Invoice
- GRD CL BARE 4-1/2-6IN
- Dimension - Height inch
- 4.29 in
- Dimension - Hole Size inch
- 0.31 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 8.34 in
- Dimension - L Length Overall mm
- 212 mm
- Dimension - Pad Width inch
- 1.88 in
- Dimension - Thread Size
- -
- Dimension - Width inch
- 1.25 in
- Dimension - Width mm
- 32 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.25 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Bronze Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10.698 lb.
- Package - GTIN - Package
- 30781810142333
- Package Height
- 6.00 in
- Package Length
- 8.91 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810142332
- Package - Total Units
- 6 EA
- Package Weight
- 10.698 lb.
- Package Width
- 8.83 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: For Connecting Grounding Conductor To Water Pipe Or Copper Tube, Supplied With Zinc Plated Steel Hardware, Water Pipe Size: 4-1/2 - 6 IN, Installation Torque: 50 IN-LB For Pipe And Wire Clamp, Length: 8.34 IN, Cross Flats: 1.88 IN, Width: 1.25 IN, Height: 4.29 IN, Armored Cable: No, Ground Strap: No
- Standard
- UL467
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CLAMP
- Sub Class Code
- B41BDAF
- Trade Name
- N
- Type
- Ground Clamp
- UL Listed
- Yes
- Width
- 1.25 in
