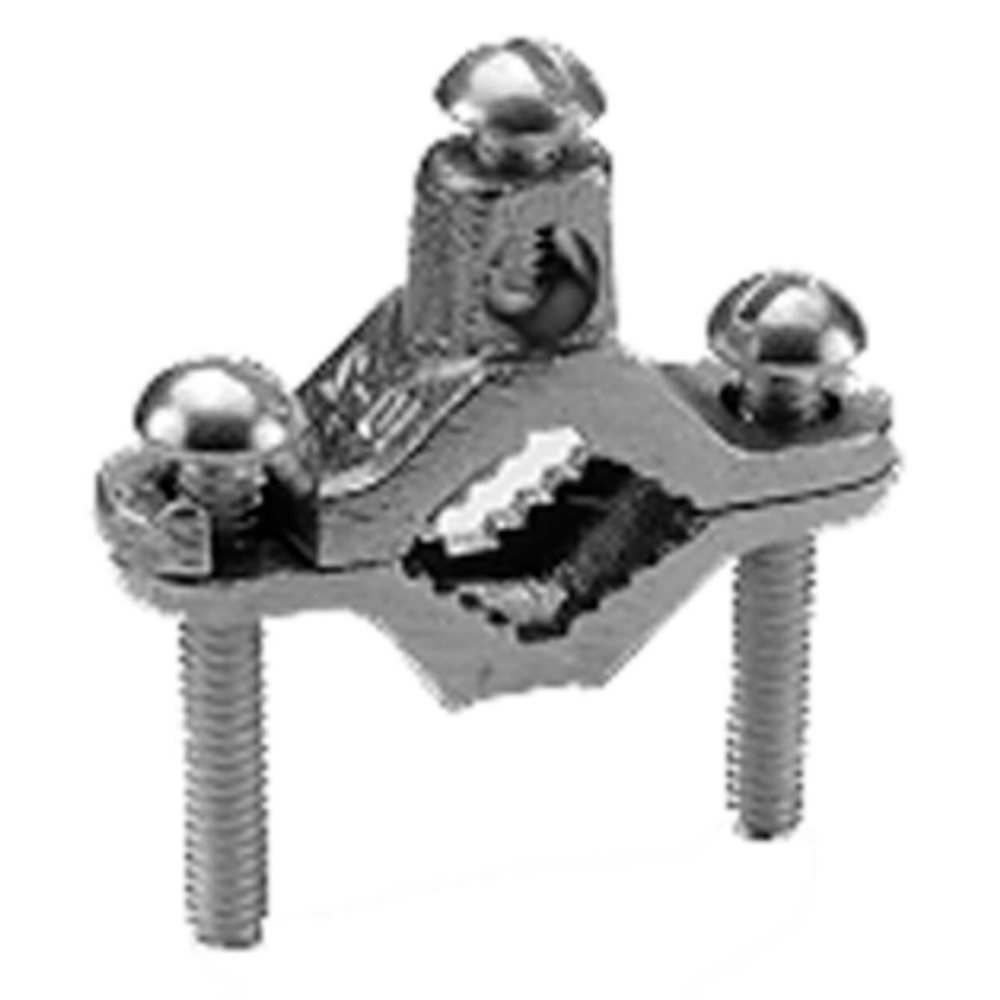

Burndy C11N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 1/2"- 1" Water Pipe,pipe clamp:50 in-lb.Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 1/2"- 1" Water Pipe, pipe clamp:50 in-lb
Burndy C11N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Bare Wire, Connecting Grounding Conductor To Water Pipe Or Copper Tube
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810142288
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810142289
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Armored Cable Size
- N
- Conductor - Copper Solid Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Size Range
- 10 AWG-2 AWG
- Conductor - Copper Str Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Size Range
- 10 AWG - 2 AWG
- Conductor - Pipe EMT Size
- 1/2 in;3/4 in;1 in
- Conductor - Pipe EMT Size Range
- 1/2 in-1 in
- Country of Origin
- IN
- Description - Invoice
- GRD CL BARE WIRE 1/2-1IN
- Dimension - Height inch
- 1.81 in
- Dimension - Hole Size inch
- 0.31 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 2.25 in
- Dimension - L Length Overall mm
- 57 mm
- Dimension - Pad Width inch
- 0.63 in
- Dimension - Width inch
- 0.63 in
- Dimension - Width mm
- 16 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.63 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Bronze Alloy
- Material - Hardware
- Zinc Plated Steel
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 18 lb.
- Package - GTIN - Package
- 30781810142289
- Package Height
- 6.00 in
- Package Length
- 8.91 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810142288
- Package - Total Units
- 100 EA
- Package Weight
- 18 lb.
- Package Width
- 8.83 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: For Connecting Grounding Conductor To Water Pipe Or Copper Tube, Water Pipe Size: 3/8 - 1 IN, Installation Torque: 50 IN-LB For Pipe And Wire Clamp, Length: 2.25 IN, Cross Flats: 0.63 IN, Width: 0.63 IN, Height: 1.81 IN, Armored Cable: No, Ground Strap: No
- Standard
- UL467
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- NC
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CLAMP
- Sub Class Code
- B41BDAF
- Type
- Ground Clamp
- UL Listed
- Yes
- Width
- 0.63 in
