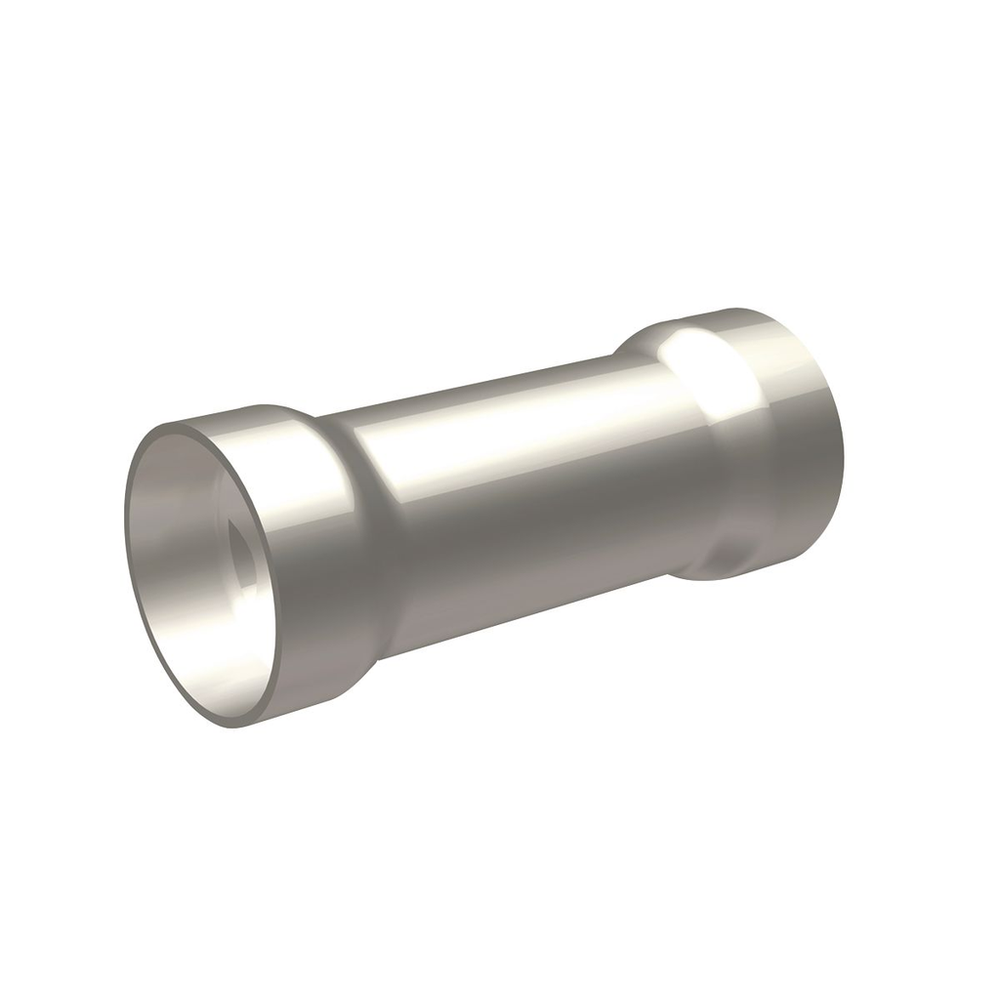

Burndy BS16
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Vinyl Splice For 22 - 16 AWG.Vinyl Splice For 22 - 16 AWG
Burndy BS16 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Accommodating A Broad Range Of 600 Volt Cables
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810805169
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810805160
- Certification Agency
- Proposition 65
- Class Code
- B57
- Color Code
- Red
- Conductor - Copper Solid Size Range
- 20 -16 AWG
- Conductor - Copper Str Size Range
- 20 AWG-16 AWG
- Conductor Size
- 22 - 16 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Seamless Butt Splice
- Country of Origin
- US
- Description - Invoice
- BUTT SPLICE, 22-16, TPCU
- Dimension - Diameter Max Size inch
- 0.145 in
- Dimension - Length Overall inch
- 1.00 in
- Dimension - Outside Diameter inch
- 0.145 in
- Dimension - Strip Length inch
- 1/4 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- .18 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Insulation
- Y
- Insulation Type
- Vinyl
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810805160
- Package Height
- 4.25 in
- Package Length
- 2.06 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810805169
- Package - Total Units
- 1000 EA
- Package Weight
- 3 lb.
- Package Width
- 2.06 in
- Pallet - GTIN - Package
- 70781810805168
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1437.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE
- Special Features
- Features: The Type SP VINYLINK Is A PVC Insulated Seamless Butt Splice, Type SP VINYLINK Is Designed To Accommodate A Broad Range Of 600 Volt Cables, Manufactured From Seamless Electrolytic Copper Tubing: Provides Maximum Conductivity And Tensile Strength, In A High Quality Design With NO Seams To Split, Funnel Entry: Provides Easy Wire Insertion, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Expanded Insulation Support: Lower Inventory Requirements, Red Wire Range Of 22-16: Lower Inventory Requirements, Vinyl Insulator: Economical Means Of Providing High Dielectric Values And Cable Insulation Support, Package: Bulk, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8G98, MR8-89-1, MR15 Tool, Conductor Type: Commercial/Aircraft Stranded Copper, Color Code: Red, Wire Strip Length: 1/4 IN, Insulation Support: Yes
- Standard
- UL467
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- VINYLINK
- Sub Class Code
- B57BKTF
- Temperature Rating
- 105
- Trade Name
- VINYLINK™
- Type
- BS
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- .18 in
