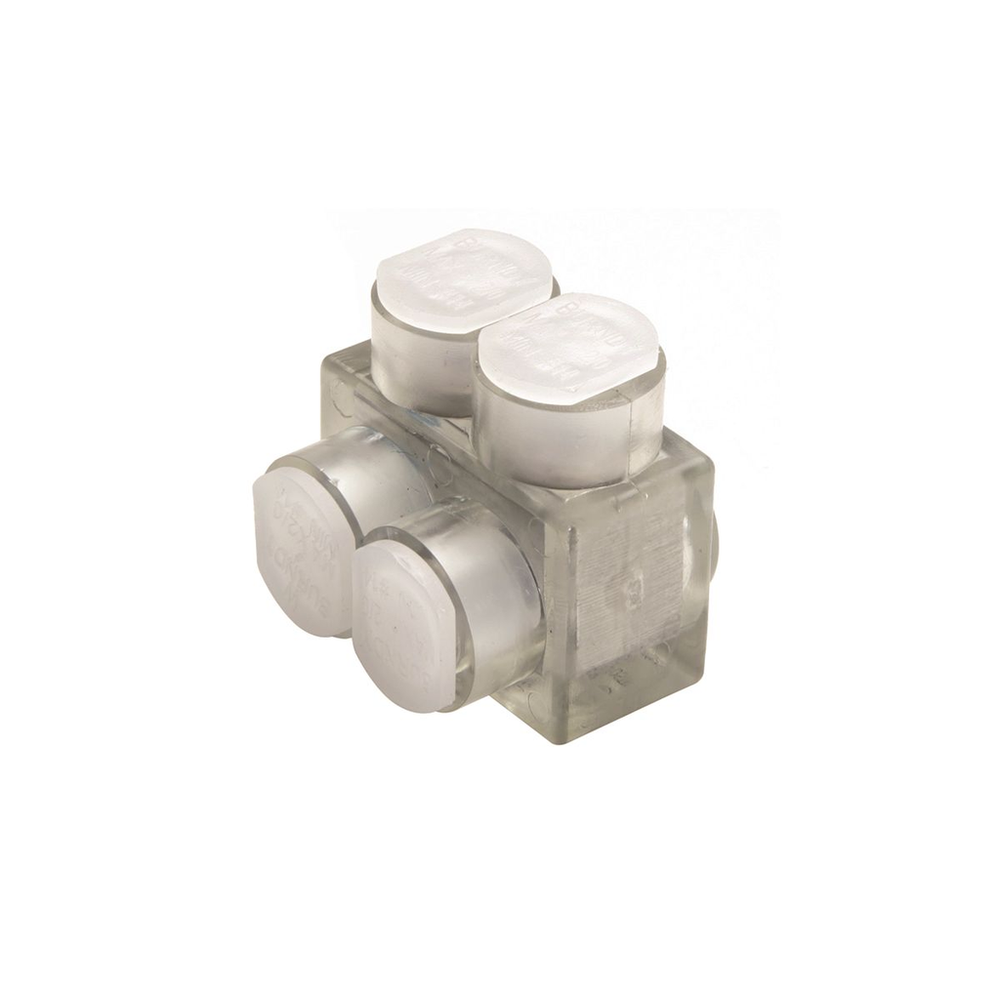

Burndy BIT350
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 10 AWG-350 kcmil, Al/Cu Rated.Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 10 AWG-350 kcmil, Al/Cu Rated
Burndy BIT350 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Indoor Use Only, Copper Or Stranded Aluminum
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810133538
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810133539
- Certification Agency
- Proposition 65
- ChannelSightWidgetId
- 705
- Class Code
- B51
- Conductor - AL Str Size
- 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - AL Str Size Range
- 10 AWG - 350 kcmil
- Conductor - Copper Str Size
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Size Range
- 10 AWG - 350 kcmil
- Conductor Size
- 10 AWG-350 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Multi Tap
- Country of Origin
- US
- Description - Invoice
- 350-10 BOTHSIDE,UNITAP
- Description - Slang
- Direct Burial Rated
- Dimension - Height fraction
- 2.5 in
- Dimension - Height inch
- 2.5 in
- Dimension - Length Overall inch
- 2.22 in
- Dimension - L Length Overall mm
- 56 mm
- Dimension - Width fraction
- 2-8/25 in
- Dimension - Width inch
- 2.32 in
- Dimension - Width mm
- 59 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.32 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Key
- 5/16 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Number Of Ports
- 2
- Operating Voltage
- 600 V
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 18 lb.
- Package - GTIN - Package
- 30781810133539
- Package Height
- 6.375 in
- Package Length
- 2 in
- Package - Number of Sub Packs
- 60
- Package - Pack Description
- Package
- Package Quantity
- 60 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810133538
- Package - Total Units
- 60 EA
- Package Weight
- 18 lb.
- Package Width
- 5.875 in
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Special Features
- Features: Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Torque: 275 IN-LB, Wire Entry: Double, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Type Of Insulation: Plastisol, Wire Strip Length: 1-1/8 IN, Number Of Ports: 2
- Standard
- UL 486A-486B
- Standard Package Quantity
- 60
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- UNITAP
- Sub Class Code
- B51BGUF
- Temperature Rating
- 90 °C
- Trade Name
- UNITAP™
- Type
- BIT
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 2.32 in
