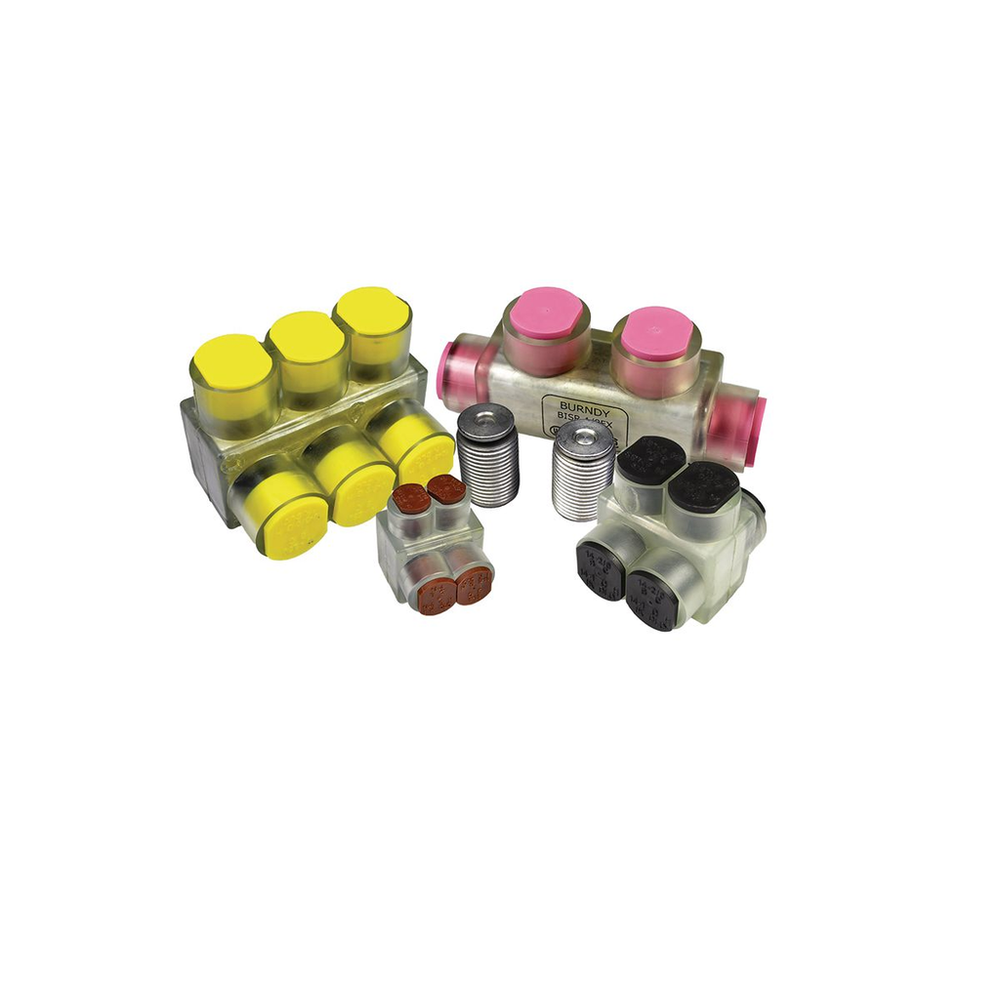

Burndy BISR500FX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum UNITAP, In-Line Splice Reducer, #6-500 Class B & C, #6-373 Class G,H,I,K, DLO, 2 PORTAluminum UNITAP, In-Line Splice Reducer, #6-500 Class B & C, #6-373 Class G,H,I,K, DLO, 2 PORT
Burndy BISR500FX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Yes
Specifications
- Application
- Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP™ line of connectors
- ARRA Compliant
- Under Review
- Base Unit of Measure
- EA
- Buy American Compliant
- Under Review
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945440715
- Case - SCC-14 Next Lower Level Sub Pack
- 30621945440716
- Certification Agency
- Proposition 65
- Class Code
- B51
- Color Code
- Red
- Conductor - Copper DLO Size Range
- 6 - 373 Str
- Conductor - Copper Flex G Size Range
- 6 - 373 Str
- Conductor - Copper Flex H Size Range
- 6 - 373 Str
- Conductor - Copper Flex I Size Range
- 6 - 373 Str
- Conductor - Copper Flex K Size Range
- 6 - 373 Str
- Conductor - Copper Str Size Range
- 6 AWG - 500 kcmil
- Conductor Size
- 6 AWG-500 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size;CU C Flex-Size
- Connector Type
- In-Line
- Country of Origin
- US
- Description - Invoice
- 500-6, IN-LINE SPLICE, FLEX
- Description - Slang
- Flex Rated
- Dimension - Height inch
- 2.63 in
- Dimension - Length Overall inch
- 5.25 in
- Dimension - L Length Overall mm
- 133.35 mm
- Dimension - Width inch
- 1.63 in
- Dimension - Width mm
- 41.4 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.63 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Key
- 3/8 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 375 in-lb
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 20 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Number Of Ports
- 2
- Operating Voltage
- 600 V
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 40.2 lb.
- Package - GTIN - Package
- 30621945440716
- Package Height
- 10.75 in
- Package Length
- 8 in
- Package - Number of Sub Packs
- 60
- Package - Pack Description
- Package
- Package Quantity
- 60 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00621945440715
- Package - Total Units
- 60 EA
- Package Weight
- 40.2 lb.
- Package Width
- 11 in
- Plated
- Y
- Plating Type
- Tin Plated Aluminum
- Product Type
- SPLICE REDUCER
- Special Features
- Features: Clear Plastisol covered AL6061-T6 aluminum body, Saves time, lowers installation costs, eliminates taping, Oxide inhibitor pre-installed,Inhibits moisture and contaminants from entering the contact area
- Standard
- UL 486A-486B
- Standard Package Quantity
- 60
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNITAP
- Sub Class Code
- B51BGUF
- Temperature Rating
- 135 °C
- Trade Name
- UNITAP™
- Type
- BISR,Multi-Port
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 1.63 in
