Burndy BISR4DB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

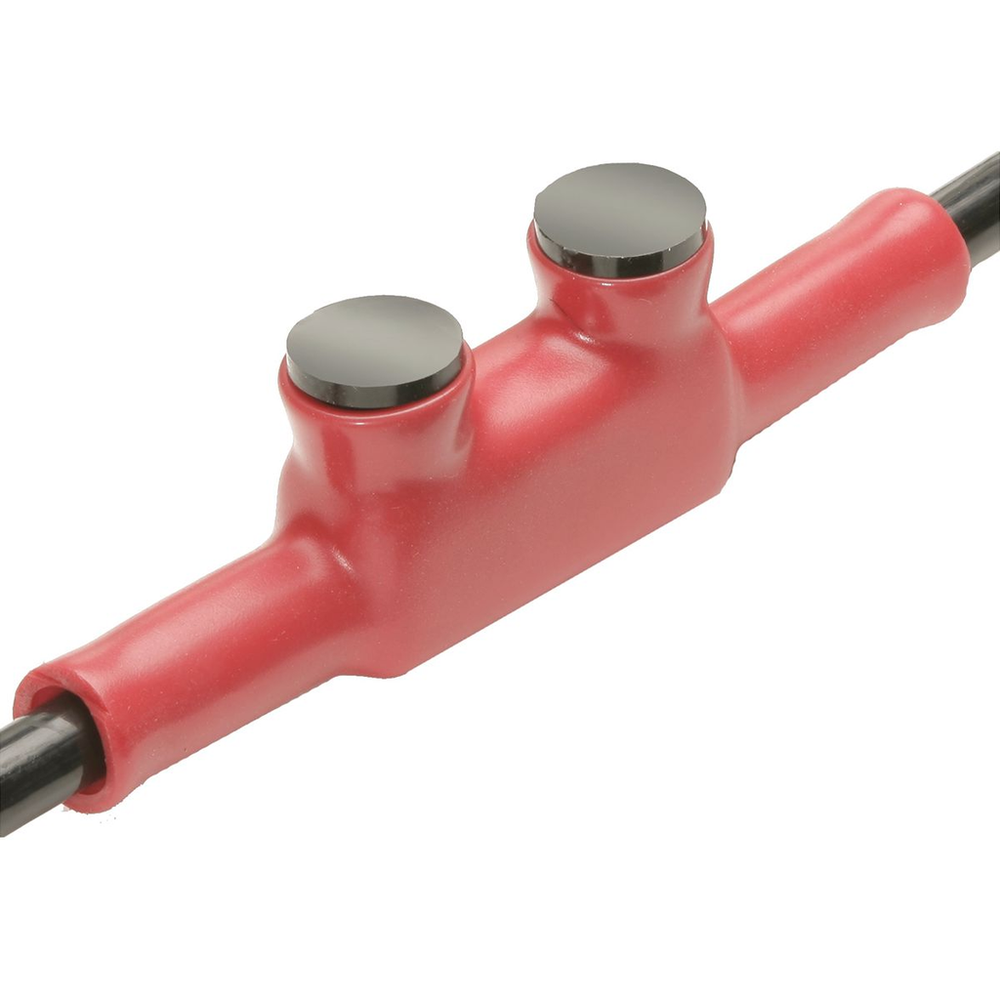

In-Line Splice/Reducer, 2 Port, 6-4 AWG, Al/Cu Rated.In-Line Splice/Reducer, 2 Port, 6-4 AWG, Al/Cu Rated
Burndy BISR4DB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
Specifications
- Application
- For Outside Direct Burial
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810288054
- Case - SCC-14 Next Lower Level Sub Pack
- 70781810288053
- Class Code
- B51
- Conductor - AL Str Size
- 6 AWG;4 AWG
- Conductor - AL Str Size Range
- 6 AWG - 4 AWG
- Conductor - Copper Str Size
- #6 AWG;5 AWG;#4 AWG
- Conductor - Copper Str Size Range
- 6 AWG - 4 AWG
- Conductor Size
- 6-4 AWG
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- In-Line
- Country of Origin
- US
- Description - Invoice
- 4-6 DIRECTBURIAL UNITAP
- Description - Slang
- Direct Burial Rated
- Dimension - Height fraction
- 1.4 in
- Dimension - Height inch
- 1.39 in
- Dimension - Length Overall inch
- 4.3 in
- Dimension - L Length Overall mm
- 109.22 mm
- Dimension - Screw Size inch
- 1/4
- Dimension - Strip Length inch
- 7/8 in
- Dimension - Width fraction
- 4/5 in
- Dimension - Width inch
- 0.6 in
- Dimension - Width mm
- 17.27 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.68 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Key
- 1/8 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 50 in-lb
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Number Of Ports
- 2
- Operating Voltage
- 600 V
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 6.5 lb.
- Package - GTIN - Package
- 70781810288053
- Package Height
- 9 in
- Package Length
- 6.563 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810288054
- Package - Total Units
- 50 EA
- Package Weight
- 6.5 lb.
- Package Width
- 9 in
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- SPLICE REDUCER
- Special Features
- Features: Designed Specifically For Direct Burial Applications, The Mole Inline Splice/Reducer Is Made With A Specialized Plastisol Material That Forms A Rugged Weathertight Connection, UL486D Listed For Direct Burial, AL9CU Dual-Rated For Copper And Aluminum Applications, 600V 90°C, Plastisol Covered Al6061-T6 AluminumBody Saves Time By Eliminating The Need For Heat Shrink, Oxide Inhibitor Pre-Installed Preventing Moisture And Contaminants From Entering Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, Wire Entry: In-Line, Torque: 50 IN-LB, Hex Size (key): 1/8 IN, Conductor Size (run - Range): 6 - 4 AWG, Wire Strip Length: 7/8 IN, Type Of Insulation: Plastisol, Number Of Ports: 2
- Standard
- UL 486A-486B
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNITAP, MOLE
- Sub Class Code
- B51BGXF
- Temperature Rating
- 90 °C
- Trade Name
- UNITAP™
- Type
- BISR
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.68 in
